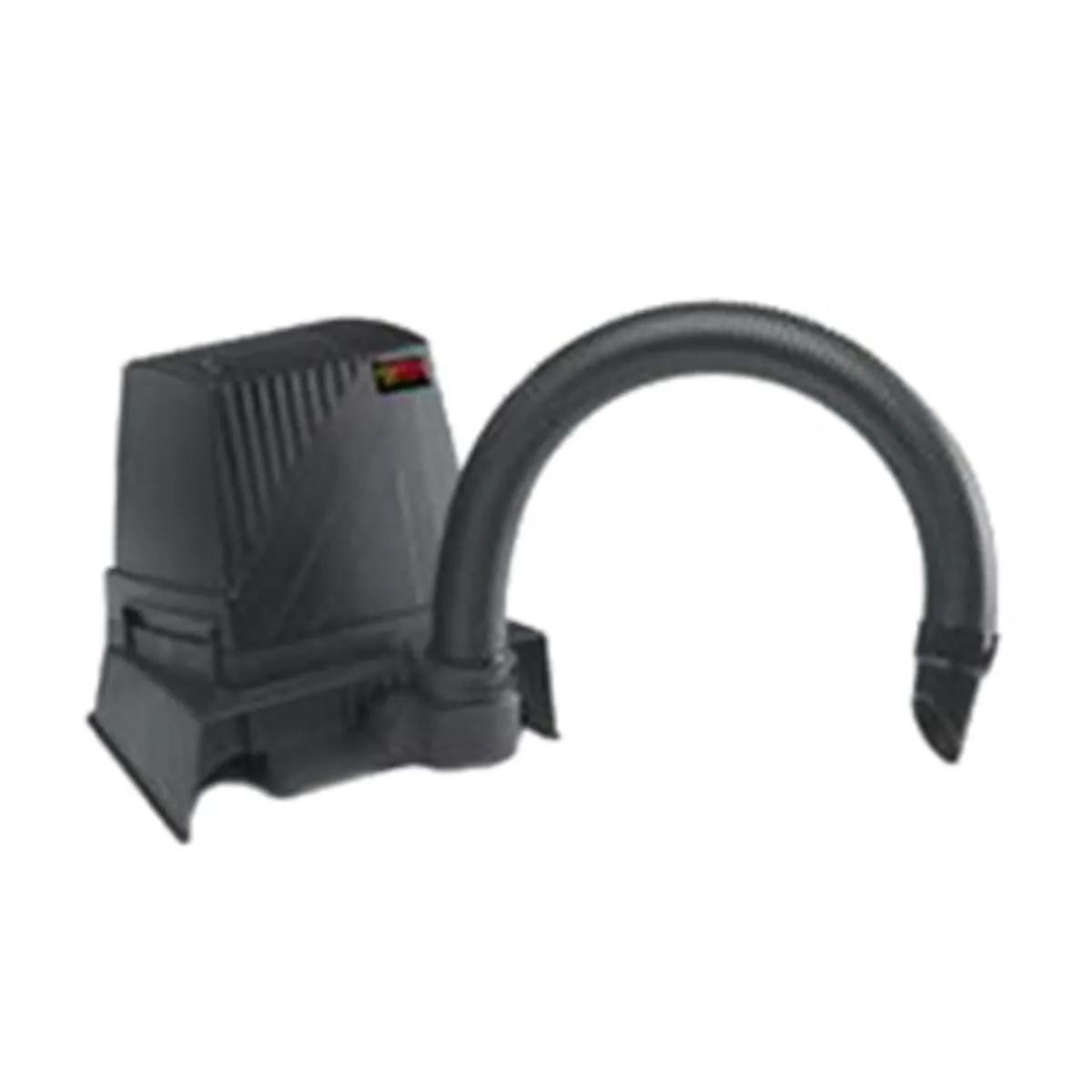

Metcal BVX-101 Single User Volume Fume Extraction System, 110 cu-m/hr, 85W, 100 - 240VAC
- MFR #BVX-101
- EIS #BVX-101
$1,176.63 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
The BVX-101 is a single user, PRE-HEPA-GAS volume extraction system designed to be used directly on the workbench. The unit is designed with an innovative adaptor which allows the user to choose between plenum or arm extraction options. - It is a portable, single user fume extraction system. Unit easily fits on any bench-top or under-bench. Innovative adaptor transforms the plenum into an arm. Immediate extraction of fumes, particles and vapors.
Features
- Low noise
- No external ducting or compressor needed
- Two filtration configurations: heavy soldering and light dust or light duty organic solvent and adhesive applications
- Bi-colored LED light indicates when the filters are blocked and require replacing
- Benchtop arm/plenum system
- 12 Inch width plenum
- Frequency of 50/60 Hz
- Voltage rating of 100 - 240VAC
Applications
- For Heavy Soldering and Adhesive Applications
General Information
| Item Name | Volume Fume Extraction System |
General Features
| Type | Single User |
Performance Details
| Maximum Extraction Capacity | 110 cu-M/hr |
| Noise Level | 55 dB |
| Vacuum Pressure | 1250 Pa |
Electrical Properties
| Frequency Rating | 50 Hz |
| Power Consumption | 85 w |
| Voltage Rating | 100 VAC |
Physical Properties
| Dimensions | 9.1 Inch D x 11.8 Inch W x 11.4 Inch H |
| Extraction Arm Length | 760 mm |
Supporting Information
| HEPA Filter Specification | 99.997% at 0.3 Micron |
| Includes | Filters, BVX-ADT Arm to Plenum Adaptor, BVX Arm |
