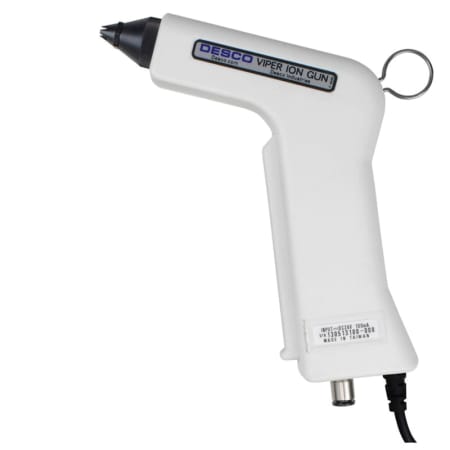

Desco 19595 Viper Ion Gun, 100 - 240VAC (Input), 24VDC (Output), 13 cfm
MFR #:19595
EIS #:19595-DES
MFR #:19595
EIS #:19595-DES
Low Stock
Min Qty:1
|Qty Increment:1
The Desco viper ion gun is a point-of-use ionizer used for neutralizing electrostatic charges to eliminate attraction, visual imperfections and contamination issues by dislodging charged dust and debris. It uses compressed clean dry air (CDA), or a special nozzle (19596) may be purchased separately for use with nitrogen. Fast discharge times with +/- 15V offset voltage meet the required limits of ANSI/ESD S20.20 and ESD TR53. A green LED on the back of the hand piece illuminates when the trigger is depressed to indicate that the gun is outputting ionized air. A red LED indicates abnormal output. - A high frequency piezo AC power supply is located Inside of hand piece to maintain consistent ionization performance with longer hose lengths (standard 6 ft hose included) and eliminate the need for a remote console. The light weight of the viper ion gun (less than 0.5 lb) allows for comfortable extended use by operators. The viper ion gun is designed with slotted tips to meet the OSHA requirement for pressure relief. Normal power consumption is approximately 2.5W.
$876.97 / Piece
Min Qty:1
|Qty Increment:1
The Desco viper ion gun is a point-of-use ionizer used for neutralizing electrostatic charges to eliminate attraction, visual imperfections and contamination issues by dislodging charged dust and debris. It uses compressed clean dry air (CDA), or a special nozzle (19596) may be purchased separately for use with nitrogen. Fast discharge times with +/- 15V offset voltage meet the required limits of ANSI/ESD S20.20 and ESD TR53. A green LED on the back of the hand piece illuminates when the trigger is depressed to indicate that the gun is outputting ionized air. A red LED indicates abnormal output. - A high frequency piezo AC power supply is located Inside of hand piece to maintain consistent ionization performance with longer hose lengths (standard 6 ft hose included) and eliminate the need for a remote console. The light weight of the viper ion gun (less than 0.5 lb) allows for comfortable extended use by operators. The viper ion gun is designed with slotted tips to meet the OSHA requirement for pressure relief. Normal power consumption is approximately 2.5W.
- Attributes
- Features
Attributes
General Information
Item NameViper Ion Gun
Trade NameDesco
General Features
Net Weight0.4 lb
StandardsANSI/ESD S20.20, ESD TR53, OSHA Approved
Technical Details
Airflow13 cfm
Pressure Range7 - 87 psi
Electrical Properties
Frequency Rating50/60 Hz
Voltage Rating100 - 240VAC (Input), 24VDC (Output)
Physical Properties
Length6.5 Inch
Height1 Inch
Width5.4 Inch
Environmental Condition
Temperature Rating32 to 104 °F
Supporting Information
Includes(1) 24VDC Power Adapter, (1) 6 ft Air Tube, (1) Certificate of Calibration
Features
- Point-of-use compressed air (7 - 87 psi) ionizing blow off gun
- Neutralizes electrostatic charges to eliminate attraction, visual imperfections, and contamination issues by dislodging charged dust and debris
- Fast discharge times with +/- 15V offset voltage balance
- High frequency piezo AC with transformer inside of hand piece - consistent ionization performance with longer hose lengths (6 ft hose included) with no additional remote console or separate high voltage power supply required
- Balanced lightweight ergonomic design (less than 0.5 lb) - aligns the center gravity with the operator's gripping hand for ease of use by operators
- Long handle-trigger - reduces stress on operator's fingers
- Slotted nozzle tips
- Clean dry air (CDA) or nitrogen
- 10 ft power cable (100 - 240VAC) to 24VDC power adapter - use with multiple power sources by changing blades on the power adaptor
- Status LEDs - illuminate when the trigger is held down and to indicate that the gun is outputting ionized air
- Balance of +/- 15V
- Ozone of < 0.04 ppm
- 6 mm gas connection port
- Enclosure: Gun - PBT polymer, Nozzle - PPS polymer
