Martindale Electric Lathe Undercutter with Both Spindle, MFR ID LTHU101

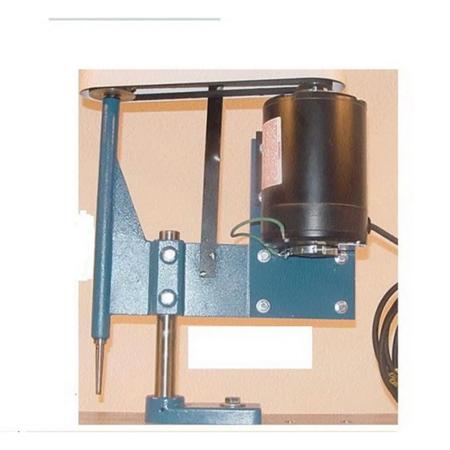

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:LTHU101
  • EIS #:PH18-LTHU101
  • MFR #:LTHU101
  • EIS #:PH18-LTHU101
0
0
The lathe-type undercutter can be quickly attached in place of the tool post on any lathe. It can be mounted directly on the cross slide or on the slide carriage which is then mounted on the cross slide. Both horizontal and vertical commutators can be under cut. -

As undercutting is done from the side of commutator the saw or V-cutter is set level with the lathe centers. A spring between hardened washers under the pulley allows the spindle to move (float) up or down and follow and existing slot that is being re-cut.
Visit our video channel to learn more about Undercutter with Both Spindle!

$3,963.94
 - $8,561.80
Select from the options below
0
0
The lathe-type undercutter can be quickly attached in place of the tool post on any lathe. It can be mounted directly on the cross slide or on the slide carriage which is then mounted on the cross slide. Both horizontal and vertical commutators can be under cut. -

As undercutting is done from the side of commutator the saw or V-cutter is set level with the lathe centers. A spring between hardened washers under the pulley allows the spindle to move (float) up or down and follow and existing slot that is being re-cut.
Visit our video channel to learn more about Undercutter with Both Spindle!

Product Options

Showing 1 out of 1 options
The image shown is representative of the product family and may not specifically be the individual item.
Voltage Rating:
115 V
Spindle Size:
0.1875 Inch
EIS Part #:
MARTINLTHU101A
$ / Piece

Attributes

General Information

Item NameUndercutter with Both Spindle

SeriesLTHU101

General Features

Net Weight28 lb
TypeLathe

Performance Details

Motor HP1/3 HP
Speed Rating2400 rpm

Electrical Properties

Frequency Rating60 Hz
