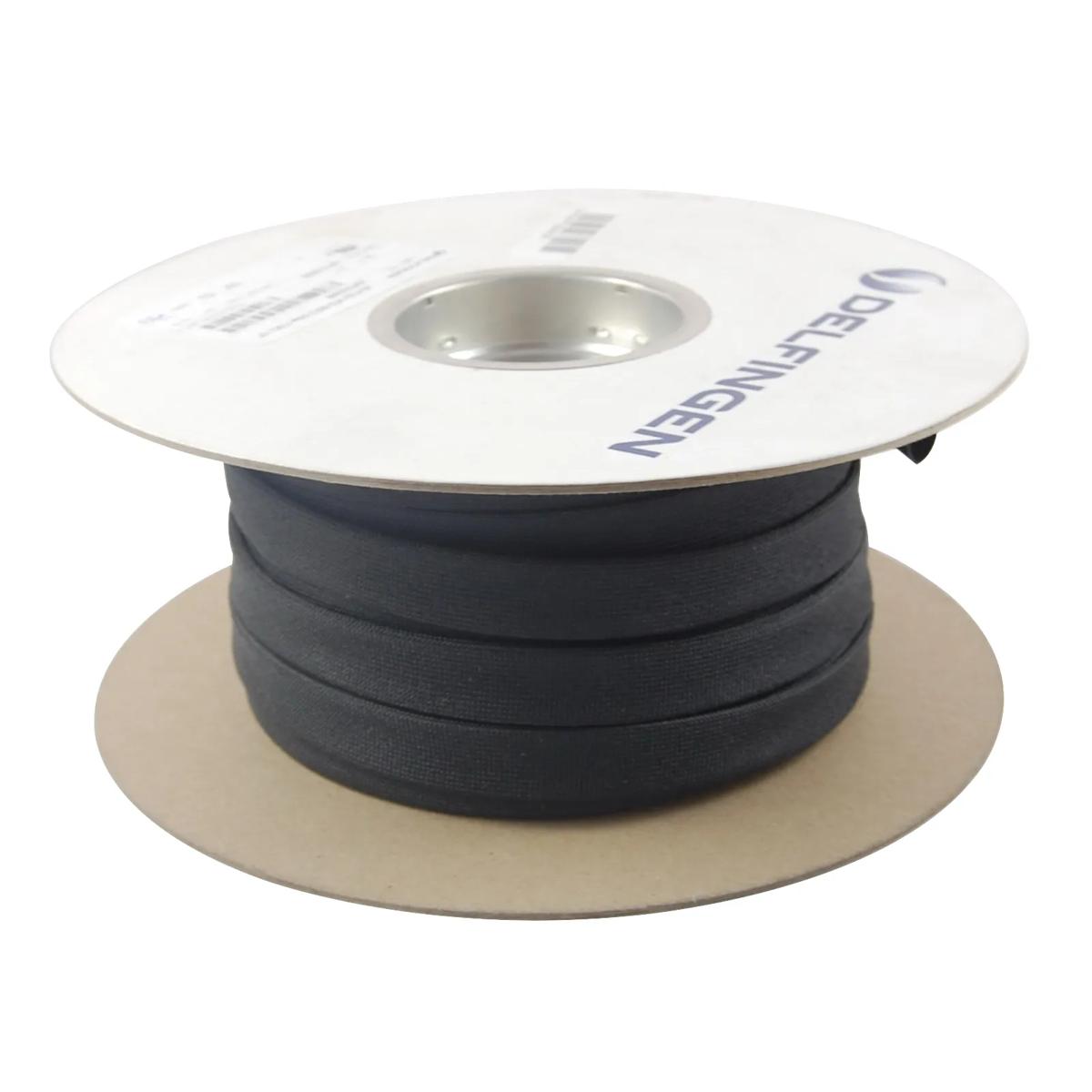

Delfingen Nu-Flex HTS-520-AW Saturated Uncoated Fiberglass Sleeve, 7 AWG, 250' Per Spool, Black, MFR ID AC431BC-307BFJ
- MFR #132317
- EIS #AC431BC-307BFJ
- Series #Nu-Flex HTS-520-AW
$16.34 / 100Foot
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | 100 ft | 0 AWG | $ / Foot more info | |
| 100 ft | 0.375 Inch | $ / Foot more info | |
| 100 ft | 1 AWG | $ / Foot more info | |
| 250 ft | 4 AWG | $ / Foot more info | |
| 250 ft | 3 AWG | $ / Foot more info | |
| 250 ft | 5 AWG | $ / Foot more info |
Nu-Flex HTS binds the fibers and provides excellent fray resistance avoiding skin irritation when cutting and handling. The color binder may degrade at operating temperatures above 200 °C. Its expandability and flexibility enables it to slip over irregular shapes and electrical connections to provide effective thermal, mechanical and electrical protection. Nu-Flex HTS is a fiberglass braided sleeve that has been heat treated to remove all organic contaminants and then saturated with an acrylic binder. The acrylic binder can be dyed in many colors for code and identification purposes.
Applications
- Coil and Winding Industry (Coils, Motors, Generators, Transformers)
- Lighting Fixtures
- Recreational Vehicles
- Industrial Equipment (Tow Motors, Overhead Cranes, Aerial Platforms)
- Commercial Cookware (Fryers, Rotisseries, Steamer)
- Heavy Truck Market
Features
- Ideal for high-temperature, low voltage applications
- Excellent expandability and flexibility to slip over irregular shapes and electrical connections
- Excellent fray resistance in cutting
- Reduced skin irritation in handling
- Heat resistant and non-flammable
- High tensile strength and high resistance to moisture, fungus and chemical attack
- Spool packing
- Standard wall construction
- Dielectric Grade: C-3
- Volume Resistivity: 10^14 Ohm-cm
- Temperature Rating: -70 to 600 °C
- Length: 250 ft Per Spool
General Information
| Item Name | Uncoated Fiberglass Sleeve |
| Trade Name | Nu-Flex HTS-520 |
| Series | Nu-Flex HTS-520-ACRC |
General Features
| Type | Saturated |
Design & Construction
| Braid Type | Fiberglass |
| Color | Black |
| Grade | C-3 |
| Insulation Type | Class C |
| Material | Heat Treated & Saturated Fiberglass |
| NEMA Specification | NEMA TF 2 Type 3 |
| Insulation Material | Acrylic |
Electrical Properties
| Dielectric Grade | Grade C3 |
Physical Properties
| Gauge | 7 AWG |
| Inside Diameter | 0.151 Inch |
| Length | 250 ft |
| Wall Thickness | NEMA TF-2 |
Environmental Condition
| Temperature Rating | -70 to 600 °C |
