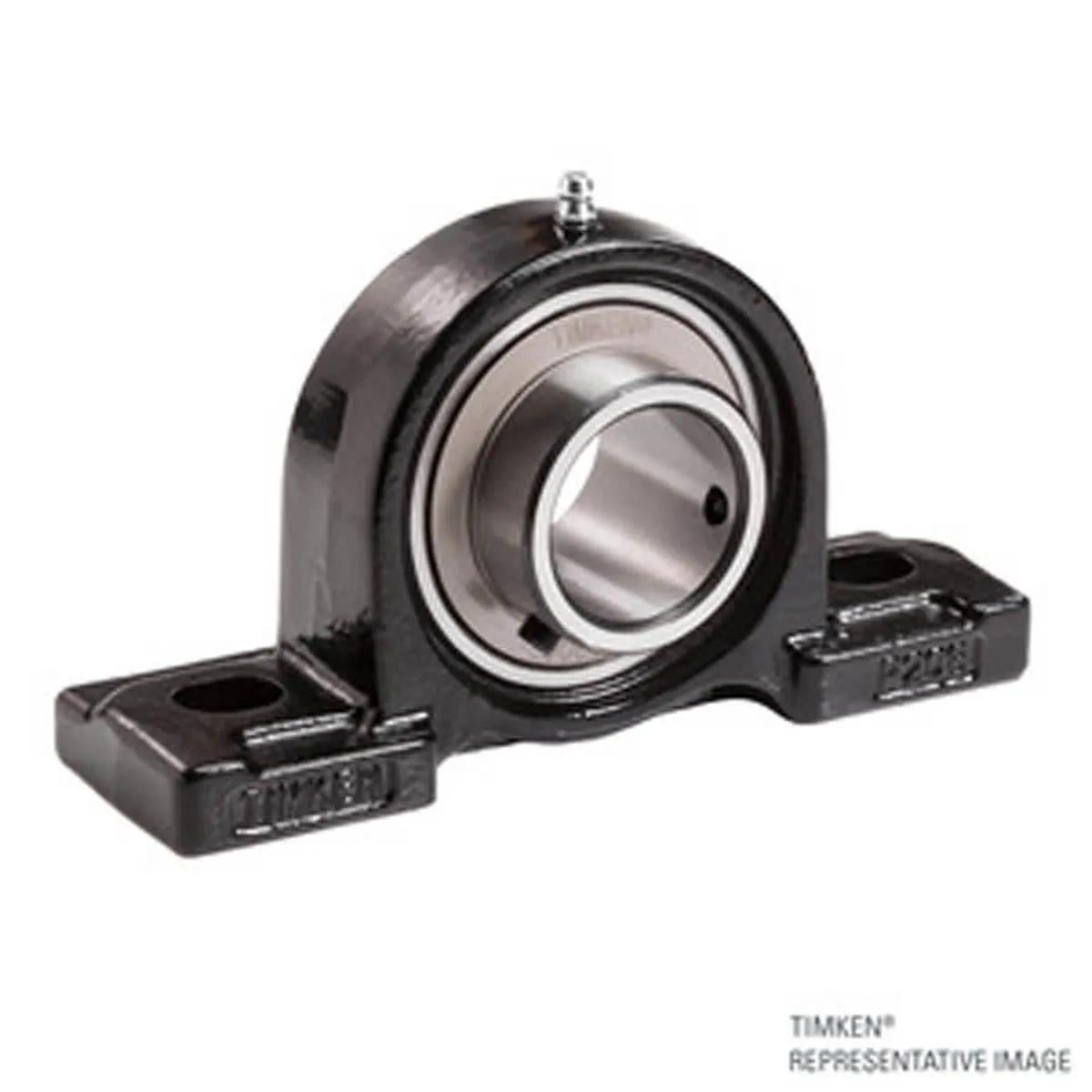

Timken UCP204-12-AMI 2-Bolt Pillow Block | 19.05 mm 0.75 in bore | Set Screw, MFR ID AMI-UCP204-12
- MFR #UCP204-12
- EIS #UCP204-12-AMI
- UPC #0087796071322
$42.43 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Products You May Also Like
Timken® U Series UC200 mounted ball bearings (housed units) feature Timken® U Series set screw locking (UC) style wide inner ring ball bearings, contact nitrile seal and an external flinger to provide multiple levels of protection against contamination. Timken® ball bearings are ideal for handling high speeds and light radial loads.
Features
- Suggested for industrial applications where normal loads are encountered
- Compact one-piece housing with two-bolt mounting can be installed in any position and makes bearing replacement easy
- Use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment
- Timken UCP series housed units feature the Timken set screw locking (UC) bearing insert
General Information
| Item Name | UC200 |
General Features
| Net Weight | 1.5 lb |
| Type | Mounted Ball Bearing |
Design & Construction
| Bore Type | Cylindrical |
| Cage Material | Steel |
| Cage Type | Steel |
| Closure Type | Open |
| End Type | Open |
| Material | Bearing Steel |
| Mounting Type | 2-Bolt Pillow Block |
| Retainer Type | Steel |
| Rolling Element | Ball Bearing |
| Rolling Element Material | Steel |
| Row Type | Single row |
Performance Details
| Dynamic Load Capacity | 12.8 kN |
| Static Load Capacity | 6.7 kN |
Physical Properties
| Bolt Circle Diameter | 0.5 Inch | 13 mm |
| Bolt Size | 3/8 Inch | M10 mm |
| Flange Thickness | 0.62992125984252 Inch | 16 mm |
| Length Through Bore | 1.22 Inch | 31 mm |
| Overall Height | 2.5625 Inch | 65 mm |
| Overall Length | 5 Inch | 127 mm |
| Overall Width | 1.47 Inch | 37.3 mm |
| Radial Internal Clearance | CN |
| Shaft Size | 0.75 Inch | 19.05 mm |
