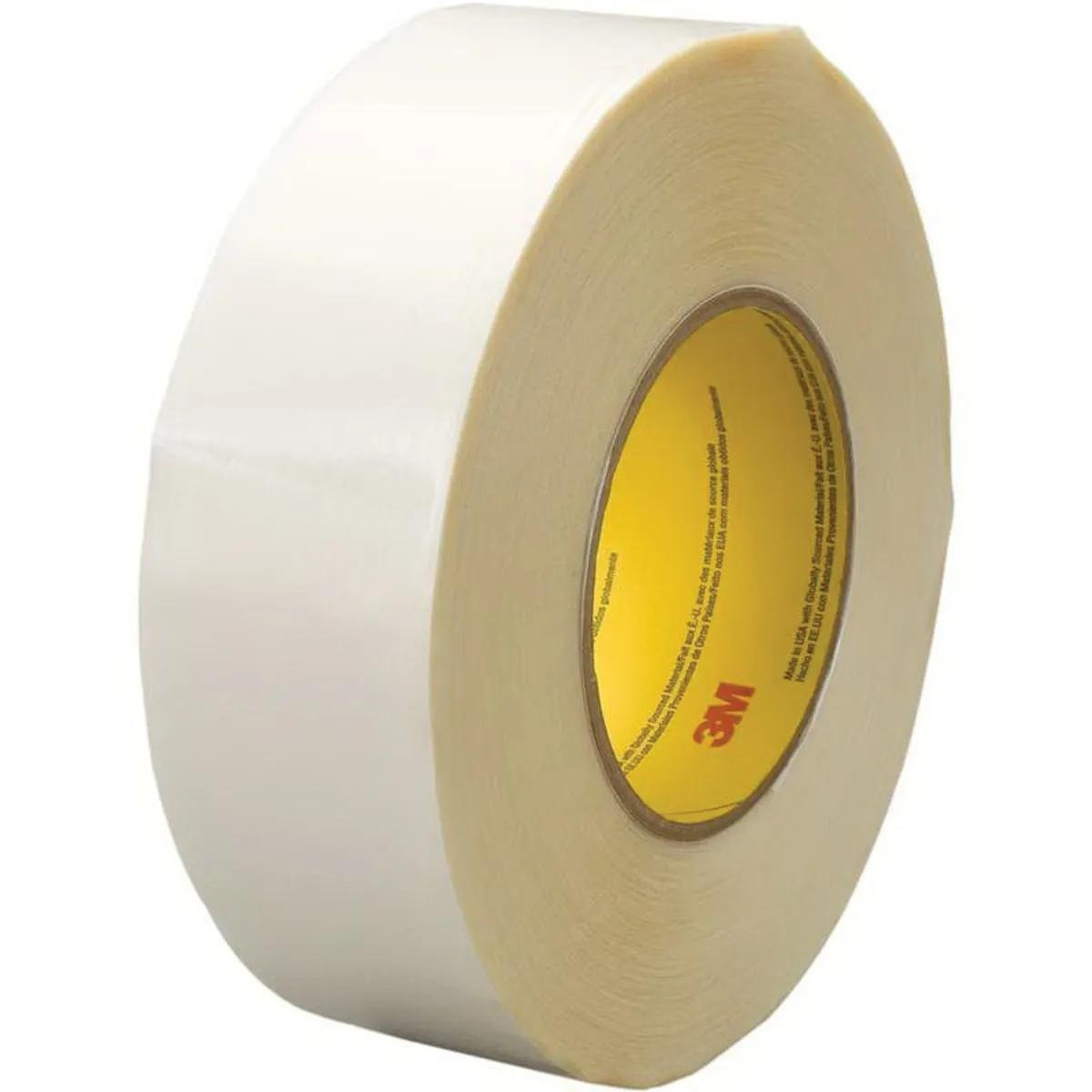

3M 9741 Double-Coated Polyester Tape
- MFR #9741
- EIS #PH22-9741
Refine your product below or compare all choices in the
Cantidad mínima1QTY Increment1
more info
Paquete--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 3.89 Inch | $ / Roll Paquete: 12/Case more info | |
 | 2.83 Inch | $ / Roll Paquete: 16/Case more info |
3M 9741 is a 6.5 Mil double coated tape utilizing a 0.5 Mil hand-tearable polyester film heavily coated on both sides with 3 Mil of an ultra high peel acrylic adhesive system. The heavy adhesive deposition allows for superior bonding and conformability to irregular as well as flat surfaces. - The special acrylic adhesive, bonds well to most substrates including low surface energy plastics. This product provides excellent UV and heat resistance. Bonds well to most substrates including low surface energy (LSE) plastics with excellent UV and a good heat resistance.
Features
- Ultra high peel double coated tape
- Use for bonding of decorative trim, bonding to plastics and metal profile extrusions and used as a general purpose double coated tape
- Temperature rating of -40 to 200 °F
Applications
- For Bonding Irregular Surfaces, Bonding to Plastics and Metal Profile Extrusions, Bonding of Decorative Trim, also Used as a Universal All-Purpose Double Coated Tape
General Information
| Item Name | Tape |
| Series | 9741 |
General Features
| Type | Double-Coated |
| Shelf Life | 24 Months |
| Storage Temperature | 21 °C |
Design & Construction
| Adhesive Type | Acrylic |
| Carrier Material | Polyester |
| Color | Clear/White Liner |
| Liner Material | Glassine |
Performance Details
| Adhesive Strength | 120 oz/Inch |
Physical Properties
| Carrier Thickness | 0.5 mil |
| Core Size | 3 Inch |
| Width | 2.83 Inch |
| Length | 55 M |
| Thickness | 6.5 mil |
Environmental Condition
| Resists | UV, Heat |
| Temperature Rating | 200 °F |
