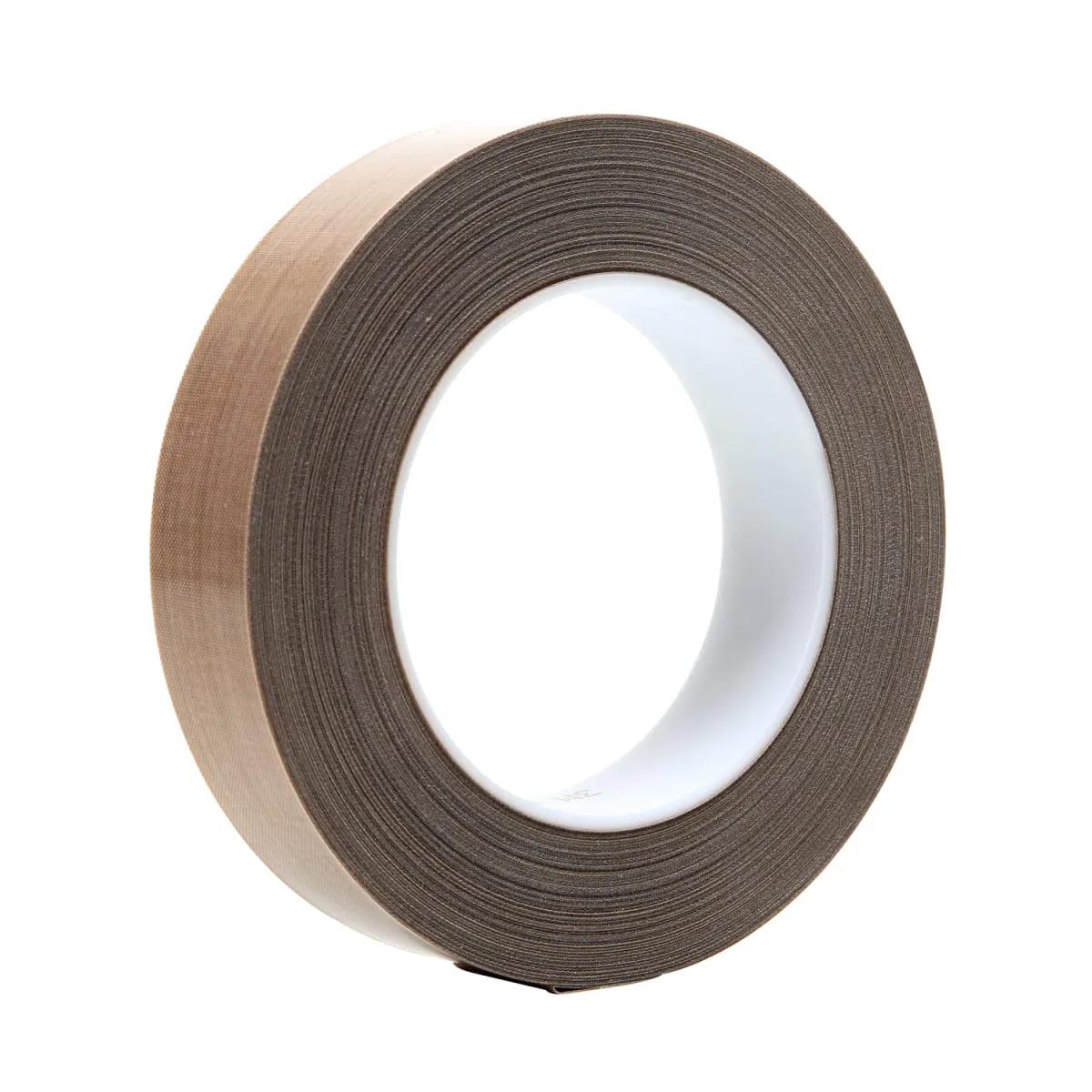

3M 5453 Woven Glass Cloth Impregnated with PTFE Tape
- MFR #5453
- EIS #PH22-5453
$347.39
Refine your product below or compare all choices in the
Cantidad mínima1QTY Increment1
more info
Paquete--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.75 Inch | $ / Roll Paquete: 12/Case | |
 | 2 Inch | $ / Roll Paquete: 6/Case more info | |
 | 1 Inch | $ / Roll Paquete: 9/Case more info | |
 | 12 Inch | $ / Roll Paquete: 1/Case |
3M PTFE glass cloth tape 5453 has a brown woven glass cloth backing impregnated with PTFE. This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures. - 3M PTFE glass cloth tape 5453 has a silicone adhesive which provides a high temperature release surface for protection and insulation. This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction.
Features
- Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
- Silicone adhesive offers high temperature performance and long aging
- Provides a non-stick, low friction surface on heat sealing and packaging equipment
- Performs under a wide range of temperatures, including up to 500 °F
- Very low moisture absorption allows the tape to perform in many humid environments
- Excellent chemical resistance enables tape to withstand challenging applications
- Thicker backing helps extend the service life, compared to thinner versions, when subjected to abrasion or wear
- Temperature rating of -73 to 260 °C
Applications
- For Heat Sealing Machines, Ironing and Pressing Equipment, High Temperature Bundling, Mold Release in Composite Bonding, Provides a Good Barrier for the Separation of Dissimilar Parts
General Information
| Item Name | Tape |
| Series | 5453 |
General Features
| Shelf Life | 18 Months |
| Storage Temperature | 16 to 27 °C |
Design & Construction
| Adhesive Type | Silicone |
| Applicable Material | Steel |
| Backing Material | Woven Glass Cloth Impregnated with PTFE |
| Color | Brown |
Performance Details
| Adhesive Strength | 55 oz/Inch |
| Tensile Strength | 175 lb/Inch |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Width | 0.750 Inch |
| Length | 36 Yard |
| Thickness | 8.2 mil |
Environmental Condition
| Resists | Tear, Puncture, Moisture, Chemical |
| Temperature Rating | 260 °C |
Supporting Information
| Applicable Materials | Steel |
Documentos
No Documents Found
