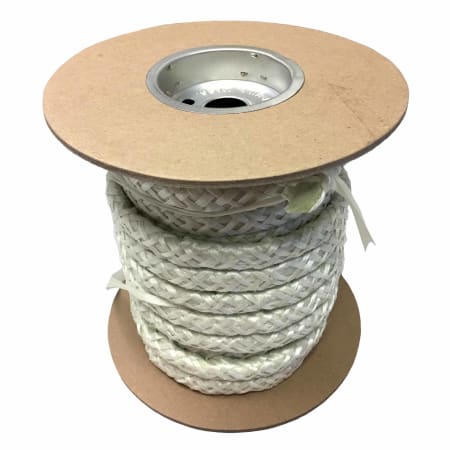

Von Roll 76831 Permafil® Polyester Surge Rope

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:76831
  • EIS #:PH22-76831
  • MFR #:76831
  • EIS #:PH22-76831
0
0
Permafil 76831 rope is designed to secure and support motor components and protect them from the destructive vibrations of mechanical and centripetal forces. The product is constructed of a tough glass yarn that is braided into the rope form and thoroughly impregnated with an uncured, fully catalyzed, thermosetting polyester resin, resulting in a pliable rope that cures to a steel-hard, rigid form. - Permafil rope is suggested as a replacement for both steel and laminated fiberglass surge rings, spacers on DC armatures, as a winding head support on random wound machines and as a support system for the nose sections of AC form wound coils.
$270.51
 - $2,625.24
Select from the options below
0
0
Permafil 76831 rope is designed to secure and support motor components and protect them from the destructive vibrations of mechanical and centripetal forces. The product is constructed of a tough glass yarn that is braided into the rope form and thoroughly impregnated with an uncured, fully catalyzed, thermosetting polyester resin, resulting in a pliable rope that cures to a steel-hard, rigid form. - Permafil rope is suggested as a replacement for both steel and laminated fiberglass surge rings, spacers on DC armatures, as a winding head support on random wound machines and as a support system for the nose sections of AC form wound coils.

Product Options

Showing 8 out of 8 options
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.875 Inch
EIS Part #:
BAND768317/8
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.625 Inch
EIS Part #:
BAND768315/8
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
500 ft Spool
Diameter:
0.375 Inch
EIS Part #:
BAND768313/804
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.375 Inch
EIS Part #:
BAND768313/8
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.75 Inch
EIS Part #:
BAND768313/4
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.25 Inch
EIS Part #:
BAND768311/4
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
0.5 Inch
EIS Part #:
BAND768311/2
$ / Spool
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 ft Spool
Diameter:
1 Inch
EIS Part #:
BAND768311
$ / Spool

Attributes

General Information

Item NameSurge Rope
Trade NamePermafil®

Series76831

General Features

Storage TemperatureRoom Temperature

Design & Construction

Adhesive TypeThermosetting Resin
Backing MaterialPolyester

Physical Properties

Core Size3 Inch

Environmental Condition

Temperature Rating155 °C

Supporting Information

Use WithVPI Systems
