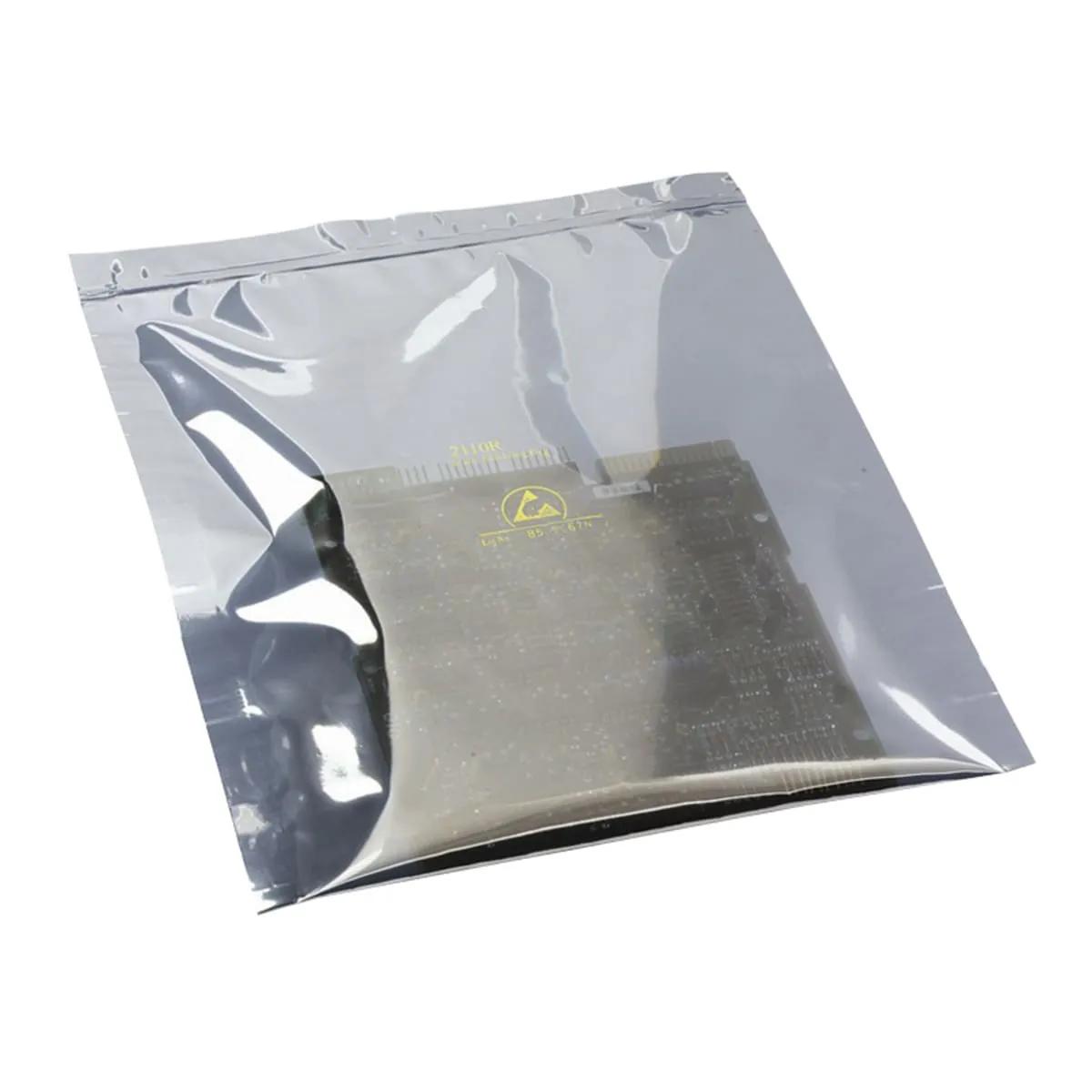

SCS 2110R Metal-Out Zip Top Static Shielding Bag
- MFR #2110R Metal-Out
- EIS #PH13-2110R Metal-Out
- Series #2110R Metal-Out
$33.79 - $75.01
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 8 Inch | 6 Inch | $ / Package Pack: 100/Pack | |
| 6 Inch | 4 Inch | $ / Package Pack: 100/Pack more info |
2110R ZipTop transparent, puncture resistant metal-out static shielding bag is designed to provide static safe packaging for the shipment and/or storage of ESD sensitive items including outside ESD protected areas. The metal layer is positioned near the outer surface to help reduce voltage retention and enhance static decay. Bags are printed with an ESD protective symbol and a lot code for traceability. The bags are heat sealable. - SCS 2110R Static Shielding Bags are manufactured from a top coat, metal, polyester, polyethylene laminate. The proprietary top coating is designed to protect the metal layer. Polyester dielectric, in concert with the metal layer, provides shielding of Electrostatic Discharge (ESD) to minimize the penetration of electric fields and discharges.
Features
- Seal strength of 80 N
- Large 3/8 Inch wide seals
- Allows for identification of bag contents
Applications
- For ESD Sensitive Electronic Devices
General Information
| Item Name | Static Shielding Bag |
| Series | 2110R Metal-Out |
General Features
| Standards | Lead-Free RoHS 2, REACH Compliant, ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4 |
| Storage Temperature | 68 °F |
| Type | Reclosable |
Design & Construction
| Closure Type | Zip Top |
| Color | Transparent |
| Material | Polyethylene Inner, Aluminum Shielding, Polyester Outer |
Performance Details
| Tensile Strength | 55 MPa |
Technical Details
| Coat Type | Abrasion Resistant |
Physical Properties
| Inside Dimensions | See TDS |
| Puncture Resistance | 106 N |
| Surface Pattern | Flat |
| Thickness | 3.2 mil |
