MFR #:6337-268
EIS #:PH19-6337-268
Series #:6337-268
MFR #:6337-268
EIS #:PH19-6337-268
Series #:6337-268

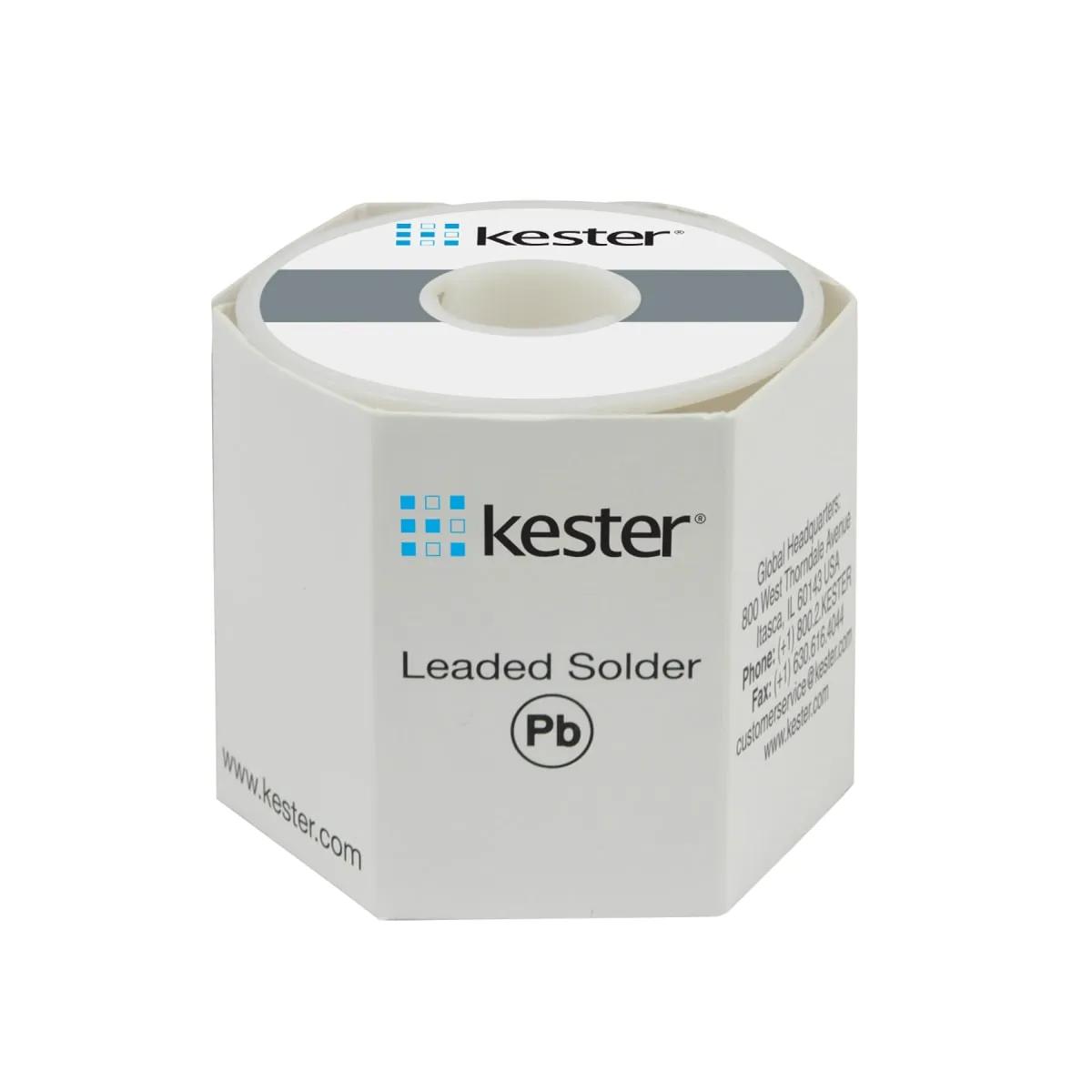

Kester 268 Flux-Cored Wire is a zero-halogen wire optimized for robotic and hand soldering applications with clear post-soldering residue without the need for cleaning. - Kester 268 Flux-Cored Wire is a zero-halogen wire optimized for robotic soldering applications. With its unique chemistry system, 268 provides consistent workability performance for both robotic and manual soldering in the electronics industry, with performance equivalent to conventional halogen/ halide-based systems. 268 provides a clean release which prevents occurrences of bridges and protrusions, even in narrow-pitch automated drag soldering. The use of 268 results in a clear post-soldering residue without the need for cleaning. 268 is classified as Type ROL0 flux under J-STD-004B specifications. 268 is zero-halogen and halide-free with no intentional addition of bromine and chlorine, conforming to the strictest requirements of IEC 61249-2-21, JPCA-ES-01 and IPC-410B specifications.
$53.83
- $78.17
Select from the options below
Kester 268 Flux-Cored Wire is a zero-halogen wire optimized for robotic and hand soldering applications with clear post-soldering residue without the need for cleaning. - Kester 268 Flux-Cored Wire is a zero-halogen wire optimized for robotic soldering applications. With its unique chemistry system, 268 provides consistent workability performance for both robotic and manual soldering in the electronics industry, with performance equivalent to conventional halogen/ halide-based systems. 268 provides a clean release which prevents occurrences of bridges and protrusions, even in narrow-pitch automated drag soldering. The use of 268 results in a clear post-soldering residue without the need for cleaning. 268 is classified as Type ROL0 flux under J-STD-004B specifications. 268 is zero-halogen and halide-free with no intentional addition of bromine and chlorine, conforming to the strictest requirements of IEC 61249-2-21, JPCA-ES-01 and IPC-410B specifications.
Product Options
Showing 1 out of 1 options
Container Size: 500g | Wire Diameter: 0.015 Inch | EIS Part #: SN6326866.015 | $ / Spool |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameKester No-Clean Flux Cored Wire Solder
Trade NameKester
Series6337-268
General Features
Shelf Life24 Months
Design & Construction
Flux TypeNo-Clean
Chemical Properties
Flux Formula268
Lead FreeNo
Physical Properties
Container Size500g
Container TypeSpool
AlloySn63 Pb37
Environmental Condition
Melting Range183 °C
Supporting Information
Flux DesignatorROL0
RoHS InfoContains Lead
Features
- Low occurrence of solder ball spatter
- Conforms to halogen-free requirement of IEC 61249-2-21, JPCA-ES-01 and IPC-410B specifications with no intentionally added halogens and halides
- Low smoke and odor
- Clear residue, resulting in excellent joint aesthetics after soldering
- Excellent surface wettability and spreading suitable for robotic soldering and manual soldering
- Excellent manufacturing consistency and uniform quality, minimizes defects for all types of soldering
- Excellent wetting speed and spread superior to halogenated materials
- Classified as ROL0 per J-STD-004B
Applications
- For electronics industry
- Optimized for robotic soldering applications
