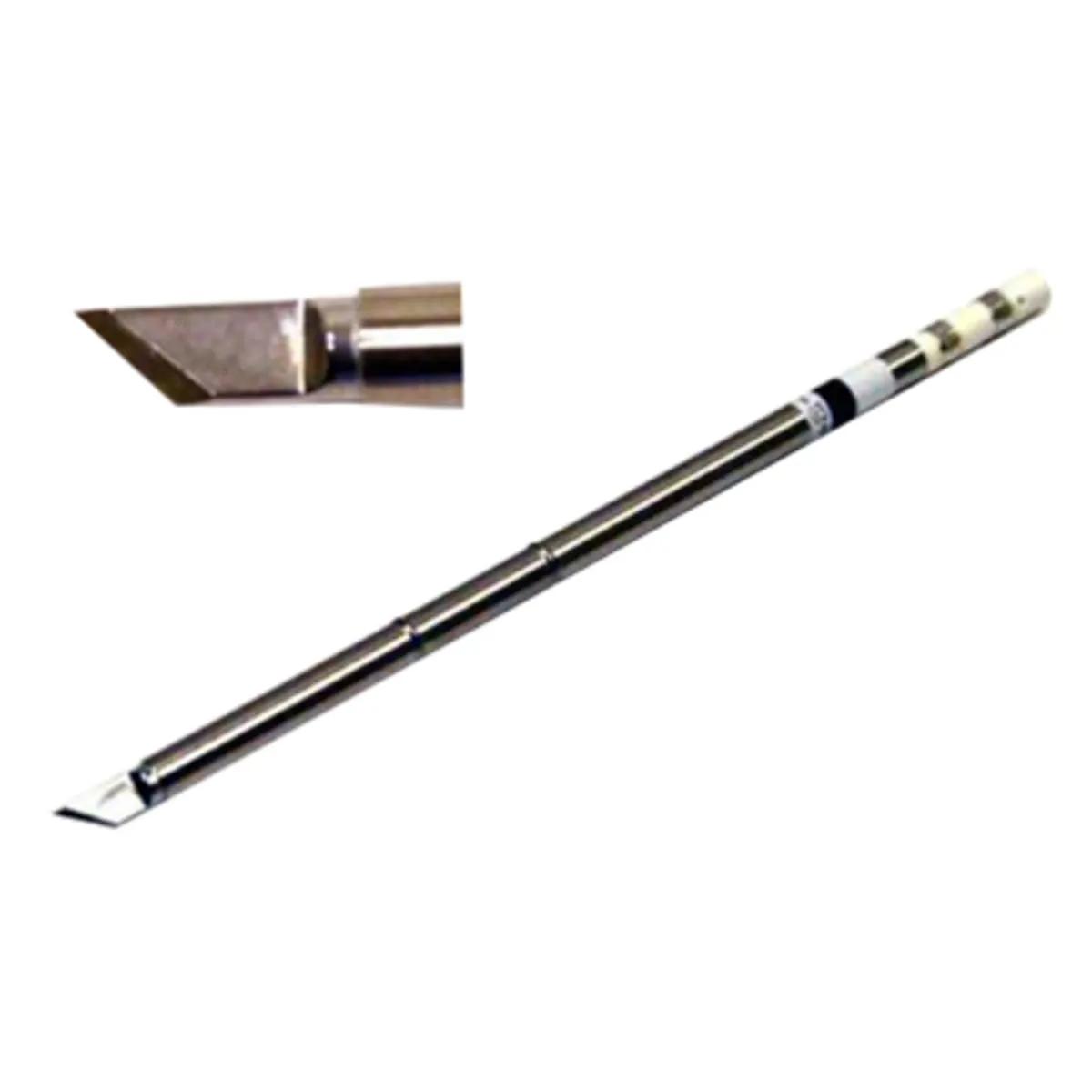

Hakko T15 Knife Soldering Tip
- MFR #T15
- EIS #PH19-T15-K
- Series #T15
$37.50 - $46.10
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 11 mm L x 4.7 mm W x 1.5 mm D | $ / Piece | |
 | 17 mm L x 4.7 mm W x 2.4 mm D | $ / Piece | |
 | 15 mm L x 4.7 mm W x 2 mm D | $ / Piece |
This type has a shape like a knife and is capable of soldering by applying the tip in 3 ways line, face and point. For soldering at narrow pitches, correction of bridging and drag soldering. - Hakko T15-K Series Soldering Tip, Angle: 45 deg, For Use With: FM-202, FM-203, FM-204, FP-101, FP-102, FX-951 Soldering Stations, FM-206 3-Port Soldering Station, Tip Finish: Chromium, Iron and Tin Plated, Tip Material: Copper, Tip Type: Knife.
Applications
- For Soldering at Narrow Pitches, Correction of Bridging and Drag Soldering
General Information
| Item Name | Soldering Tip |
| Series | T15 |
Design & Construction
| Angle | 45 deg |
| Tip Finish | Chromium, Iron and Tin Plated |
| Tip Material | Copper |
| Tip Type | Knife |
Supporting Information
| For Use With | FM-202, FM-203, FM-204, FP-101, FP-102, FX-951 Soldering Stations, FM-206 3-Port Soldering Station |
| Tip Series | T15 |
Documents
No Documents Found
