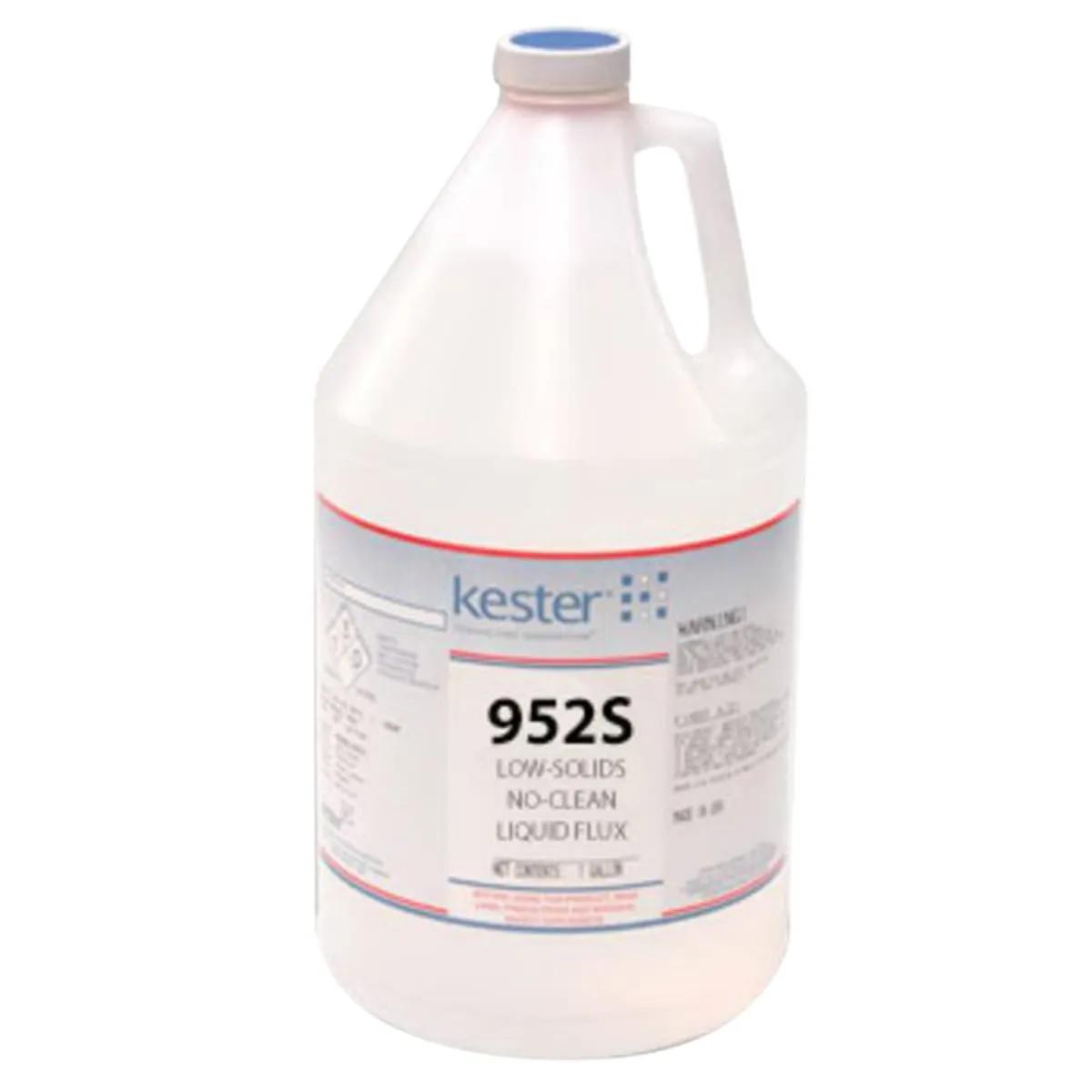

Kester 952-S No-Clean Soldering Flux

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:952-S

EIS #:PH19-952-S

Series #:952-S

MFR #:952-S

EIS #:PH19-952-S

Series #:952-S

0
0
The Kester 952-S is a zero halogen, non-rosin organic flux designed specifically for use in tabber and stringer equipment of Photovoltaic Assembly (PV) module industry by soldering tabs to cell contacts. 952-S could be applied directly to interconnecting ribbon by hand soldering or auto-equipment with tabber and stringer soldering system, by dipping or spraying. - The extremely low solids content (around 2%) and nature of the activator system results in practically no residue left on the cell after soldering. Cell are dry and cosmetically clean as they exit the tabber and stringer machine. 952-S has a wider operating window varying with temperature range and can be used in Sn-Pb, SnAg Pb and Pb-free alloys.
$36.04
 - $61.00
Select from the options below
0
0
The Kester 952-S is a zero halogen, non-rosin organic flux designed specifically for use in tabber and stringer equipment of Photovoltaic Assembly (PV) module industry by soldering tabs to cell contacts. 952-S could be applied directly to interconnecting ribbon by hand soldering or auto-equipment with tabber and stringer soldering system, by dipping or spraying. - The extremely low solids content (around 2%) and nature of the activator system results in practically no residue left on the cell after soldering. Cell are dry and cosmetically clean as they exit the tabber and stringer machine. 952-S has a wider operating window varying with temperature range and can be used in Sn-Pb, SnAg Pb and Pb-free alloys.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 gal
EIS Part #
KES952SG
$ / US gallon
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
5 gal
EIS Part #
KES952S5G
$ / US gallon
Container Size
53 gal
EIS Part #
KES952S53G
$ / US gallon

Attributes

General Information
Item NameSoldering Flux
Series952-S
General Features
Shelf Life12 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorClear
Flux TypeNo-Clean
FormLiquid
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Chemical CompositionIsopropanol, Proprietary Organic Acids, Azole Isomers
Flux Formula952-S
Specific Gravity0.803
Physical Properties
Odor/ScentAlcohol
Supporting Information
Flux DesignatorORL0
RoHS Info2011/65/EU Directive
