Kester 2224-25 Organic Activated Soldering Flux

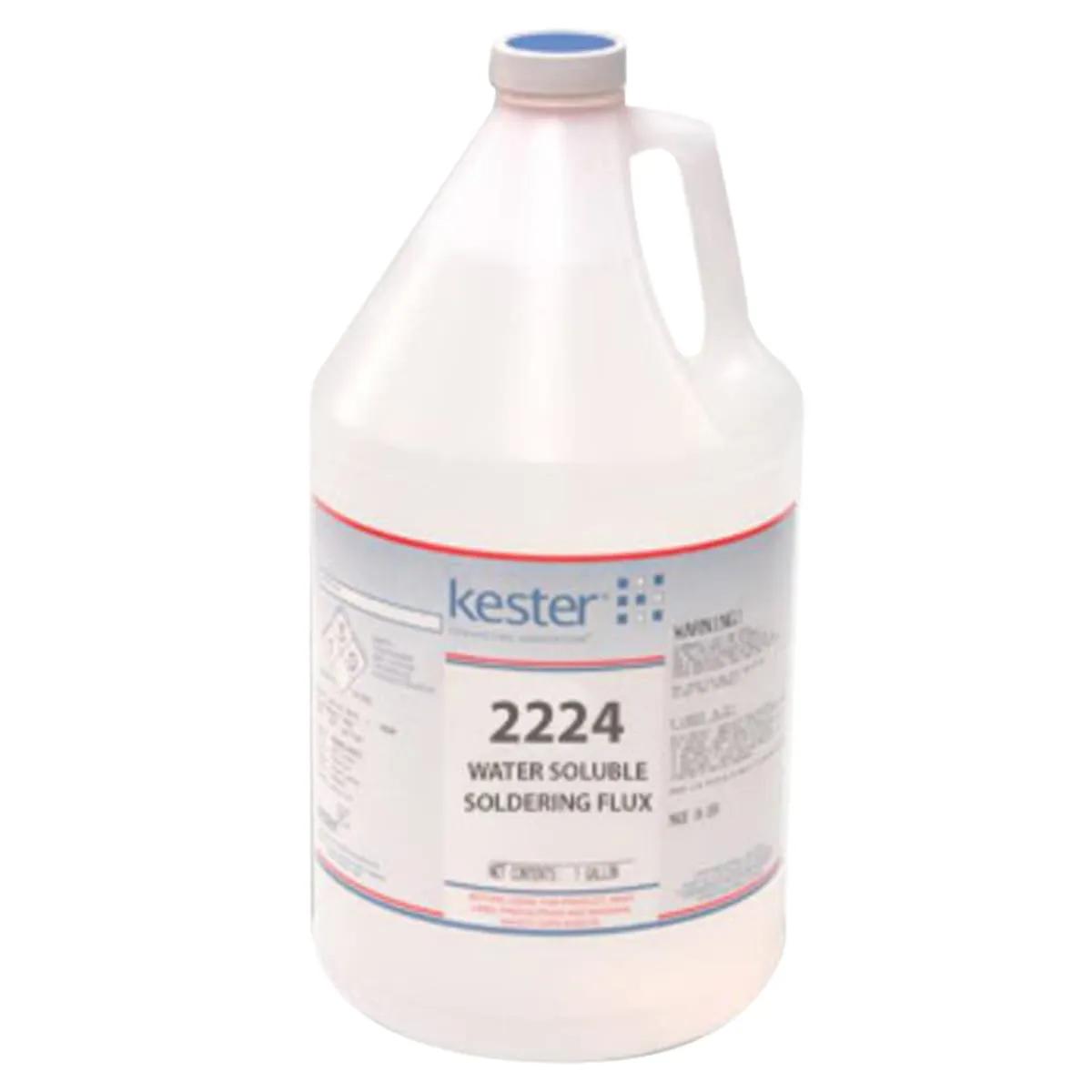

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:2224-25
  • EIS #:PH19-2224-25
  • Series #:2224-25
  • MFR #:2224-25
  • EIS #:PH19-2224-25
  • Series #:2224-25
0
0
The Kester 2224-25 is a high activity, organic flux designed for automated soldering of circuit board assemblies where a more aggressive flux is required, but reliability considerations are paramount. The flux will provide good capillary wetting action up plated through holes, making it suitable for multi-layer boards. The residue after soldering is effectively removed in standard water cleaning systems. - Although possessing high activity, boards exhibit high ionic cleanliness after water cleaning, exceeding the requirements of MIL-P-28809A. No offensive odors or excessive smoke is emitted during soldering. The flux will not create excessive foaming in standard water cleaning systems.
$168.77
 - $188.66
Select from the options below
0
0
The Kester 2224-25 is a high activity, organic flux designed for automated soldering of circuit board assemblies where a more aggressive flux is required, but reliability considerations are paramount. The flux will provide good capillary wetting action up plated through holes, making it suitable for multi-layer boards. The residue after soldering is effectively removed in standard water cleaning systems. - Although possessing high activity, boards exhibit high ionic cleanliness after water cleaning, exceeding the requirements of MIL-P-28809A. No offensive odors or excessive smoke is emitted during soldering. The flux will not create excessive foaming in standard water cleaning systems.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
1 gal
EIS Part #:
KES222425G
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
5 gal
EIS Part #:
KES2224255G
$ / US gallon

Attributes

General Information

Item NameSoldering Flux

Series2224-25

General Features

Shelf Life24 Months
Storage Temperature10 to 25 °C

Design & Construction

ColorLight Yellow
Flux TypeOrganic Activated or Water Soluble
FormLiquid

Performance Details

Vapor Pressure43 hPa

Chemical Properties

Chemical CompositionIsopropanol, Glycolic Acid, Guanidinium Chloride, Glycerol, Water
Flux Formula2224-25
Specific Gravity0.882

Physical Properties

Odor/ScentMild

Supporting Information

Flux DesignatorORH1
RoHS Info2002/95/EC Directive
