Kester 2220-VF Organic Activated Soldering Flux

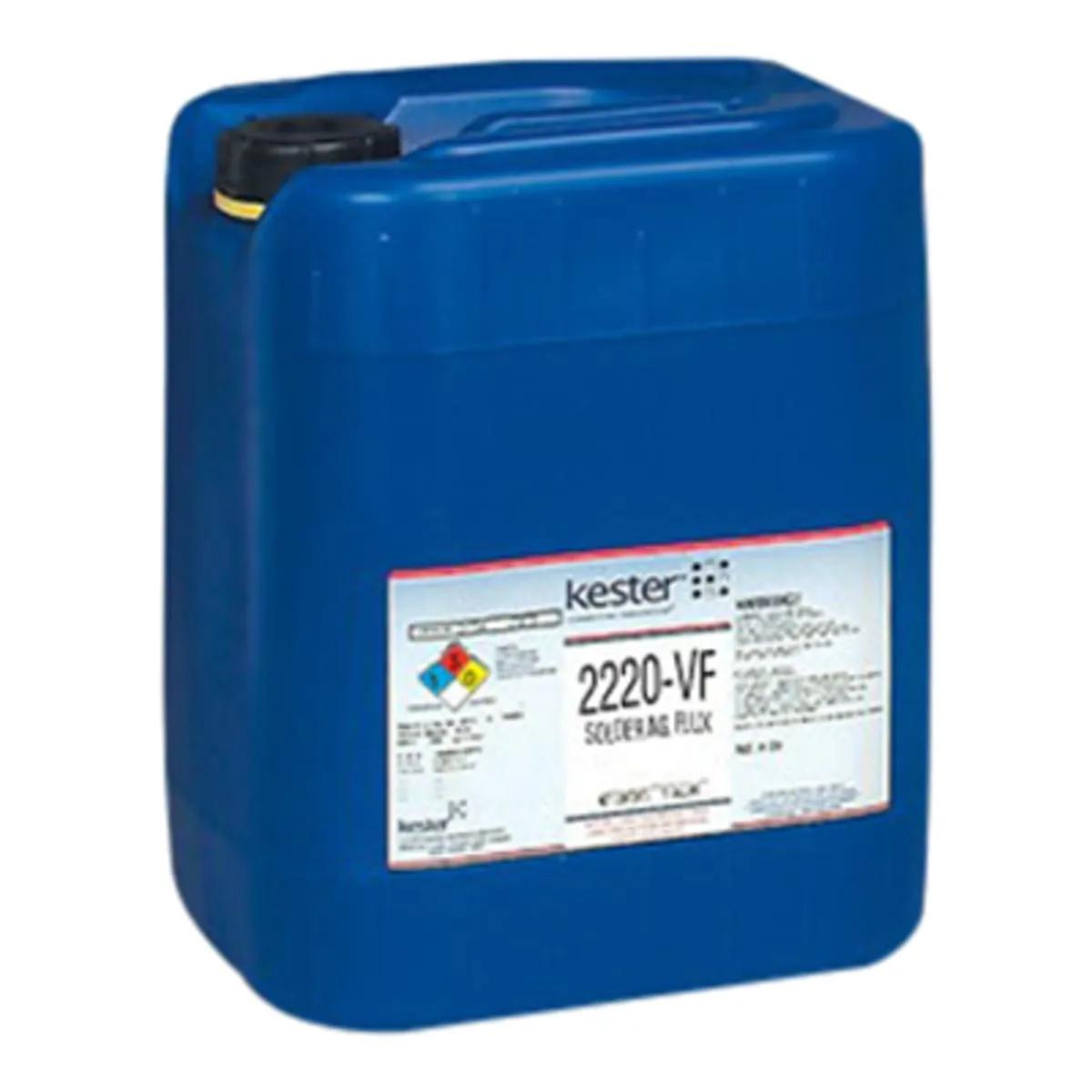

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:2220-VF
  • EIS #:PH19-2220-VF
  • Series #:2220-VF
  • MFR #:2220-VF
  • EIS #:PH19-2220-VF
  • Series #:2220-VF
0
0
The Kester 2220-VF is a high activity, organic flux designed for lead-free automated wave solder applications. The flux will provide maximum capillary wetting action up plated through holes, making it ideal for use on multilayer boards. Along with this enhanced activity, 2220-VF flux produces bright, shiny solder joints and the residue after soldering is effectively removed in standard water cleaning systems. - 2220-VF is free of volatile organic compounds (VOC), which provides optimal heat stability for the lead-free wave soldering process. The use of VOC-free solvents eliminates the use of ozone depleting chemicals which results in an environmentally friendly process.
$149.52
Select from the options below
0
0
The Kester 2220-VF is a high activity, organic flux designed for lead-free automated wave solder applications. The flux will provide maximum capillary wetting action up plated through holes, making it ideal for use on multilayer boards. Along with this enhanced activity, 2220-VF flux produces bright, shiny solder joints and the residue after soldering is effectively removed in standard water cleaning systems. - 2220-VF is free of volatile organic compounds (VOC), which provides optimal heat stability for the lead-free wave soldering process. The use of VOC-free solvents eliminates the use of ozone depleting chemicals which results in an environmentally friendly process.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
1 gal
EIS Part #:
KES2220VFG
$ / US gallon
The image shown is representative of the product family and may not specifically be the individual item.
Container Size:
5 gal
EIS Part #:
KES2220VF5G
$ / US gallon

Attributes

General Information

Item NameSoldering Flux

Series2220-VF

General Features

Shelf Life12 Months
Storage Temperature4 to 25 °C

Design & Construction

ColorAmber
Flux TypeOrganic Activated or Water Soluble
FormLiquid

Performance Details

Vapor Pressure23 hPa

Chemical Properties

Chemical CompositionGlycolic Acid, Guanidinium Chloride, Cyclohexylammonium Chloride, Water
Flux Formula2220-VF
Specific Gravity1.06

Physical Properties

Odor/ScentMild

Supporting Information

Flux DesignatorORH0
RoHS Info2002/95/EC Directive
