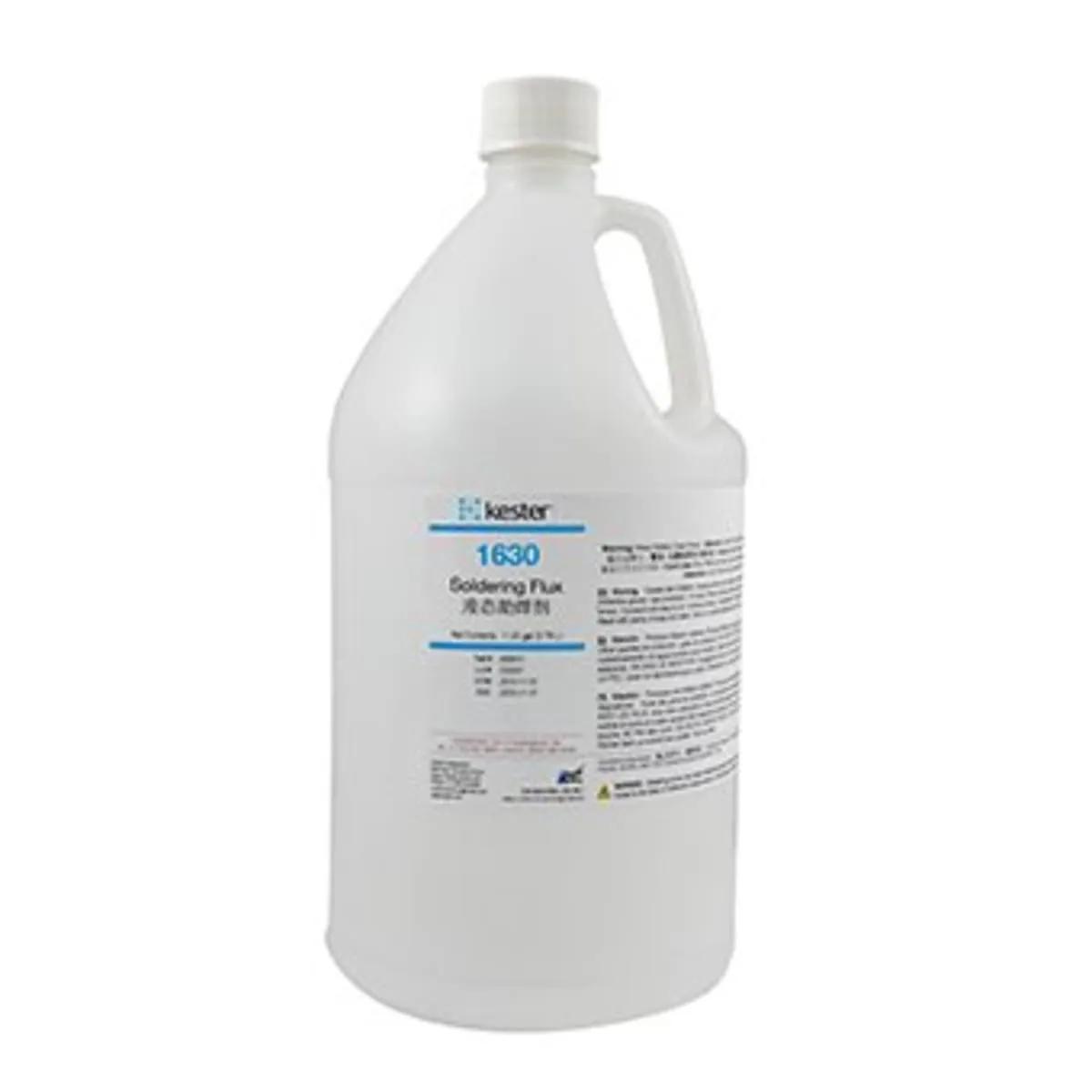

Kester 1630 Inorganic Water-Soluble Soldering Flux
- MFR #1630
- EIS #PH19-1630
- Series #1630
$239.52 - $251.23
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
| 5 gal | $ / US gallon more info | ||
| 53 gal | $ / US gallon more info |
Kester 1630 is a water-soluble liquid flux for heat sink applications. It is a bromide based, chloride-free, inorganic salt activated flux containing less than 1% free of acid. 1630 is an excellent flux for soldering copper, brass and all types of tin-based solders from low tin to lead-free solders. - 1630 has a bromide activator that will not turn copper or brass green during normal soldering operations. 1630 is also used for soldering nickel and mild steel. 1630 was developed for soldering electrical connections like fuses, and can be used to solder all copper based alloy joints. The inorganic salt activation system gives 1630 great heat stability over a long period of time using a wide variety of heating techniques.
Features
- High activity for soldering most metals
- Will not discolor copper and brass
- Excellent heat stability
- Classified as INH1 per IPC J-STD-004
Applications
- 1630 is usually applied by brush or dip method at room temperature. If the flux tank is heated, it might be necessary to make water additions to maintain the specific gravity.
- Water-Soluble Liquid Flux for Heat Sink Applications
General Information
| Item Name | Soldering Flux |
| Series | 1630 |
Documents
No Documents Found
