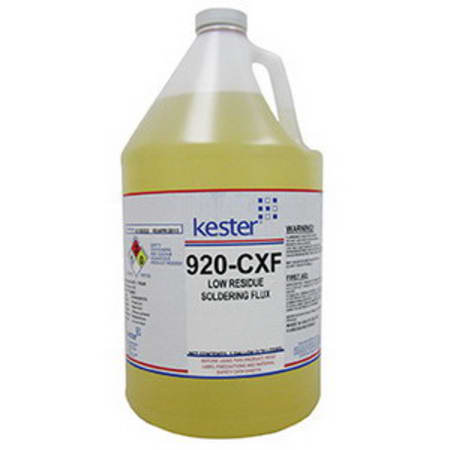

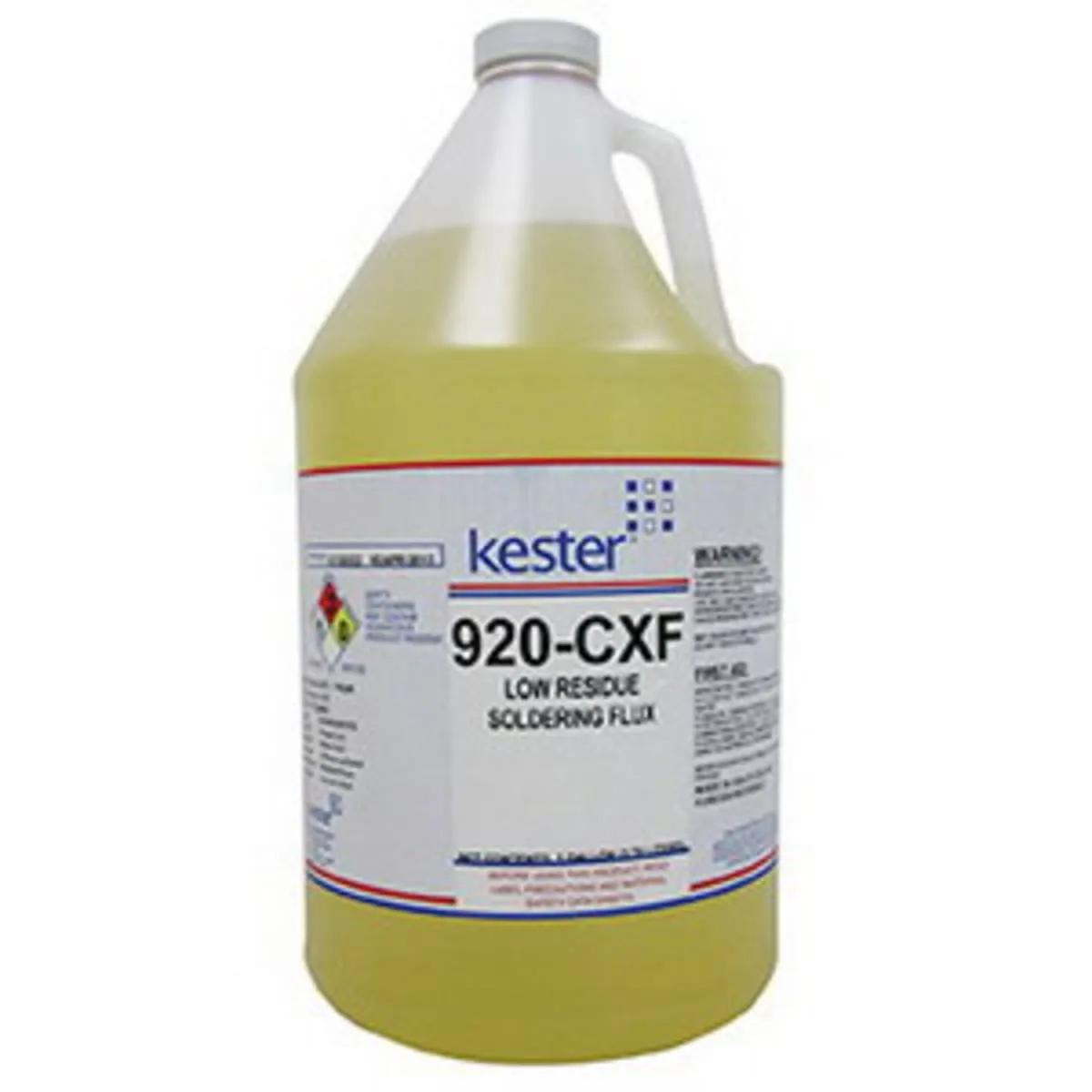

Kester 920-CXF No-Clean Soldering Flux, 1 gal Bottle, Light Yellow

The image shown is representative of the product family and may not specifically be the individual item.  The Kester 920-CXF is a zero halogen, low solids, no-clean organic flux designed for wave soldering conventional and surface mount circuit board a…

MFR #:6303460920

EIS #:KES920CXFG

Series #:920-CXF

MFR #:6303460920

EIS #:KES920CXFG

Series #:920-CXF

Low Stock

Min Qty:1

  |

Qty Increment:1

Hazardous Materials require special handling.
0
0
The Kester 920-CXF is a zero halogen, low solids, no-clean organic flux designed for wave soldering conventional and surface mount circuit board assemblies. This flux eliminates defects often experienced in surface mount assembly wave soldering operations with traditional fluxes. This non-corrosive and non-conductive flux has an extremely low solids content. There is essentially no residue left on the assembly after soldering. There are no residues to interfere with electrical testing and the expense of cleaning is eliminated. - PCB assemblies are dry as they exit the wave solder machine. The surface insulation resistance is higher than that provided by typical organic water soluble fluxes. Electrical reliability of the assembly is assured. This flux formulation is suitable for soldering bare copper and solder plated circuit boards. It is advised that bare copper boards be free of excessive oxides and other contamination for optimum soldering performance.
$79.88 / US gallon

Min Qty:1

  |

Qty Increment:1

Hazardous Materials require special handling.
0
0
The Kester 920-CXF is a zero halogen, low solids, no-clean organic flux designed for wave soldering conventional and surface mount circuit board assemblies. This flux eliminates defects often experienced in surface mount assembly wave soldering operations with traditional fluxes. This non-corrosive and non-conductive flux has an extremely low solids content. There is essentially no residue left on the assembly after soldering. There are no residues to interfere with electrical testing and the expense of cleaning is eliminated. - PCB assemblies are dry as they exit the wave solder machine. The surface insulation resistance is higher than that provided by typical organic water soluble fluxes. Electrical reliability of the assembly is assured. This flux formulation is suitable for soldering bare copper and solder plated circuit boards. It is advised that bare copper boards be free of excessive oxides and other contamination for optimum soldering performance.

Attributes

General Information
Item NameSoldering Flux
Series920-CXF
General Features
Shelf Life12 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorLight Yellow
Flux TypeNo-Clean
FormLiquid
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Chemical CompositionIsopropanol, Adipic acid, Rosin Modified, 2-Phenoxyethanol
Flux Formula920-CXF
Specific Gravity0.8
VOC753 g/L
Physical Properties
Container Size1 gal
Container TypeBottle
Odor/ScentAlcohol
Environmental Condition
Temperature Rating82 °C
Supporting Information
Flux DesignatorORL0
RoHS Info2015/863 Directive
