MFR #:63-0000-0197
EIS #:KES197G
Series #:197
MFR #:63-0000-0197
EIS #:KES197G
Series #:197
Min Qty:1
|Qty Increment:1
Hazardous Materials require special handling.

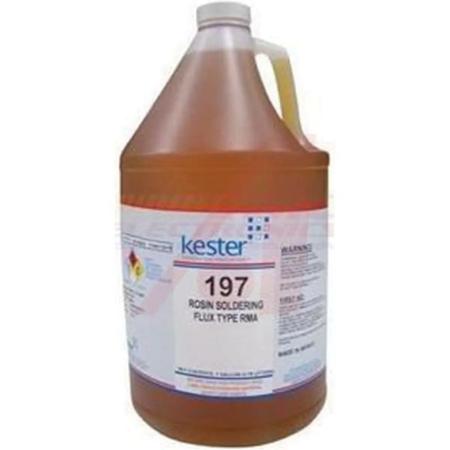

The Kester 197 mildly activated rosin liquid flux is a homogeneous solution of high quality purified grade WW rosin in a specially blended alcohol vehicle into which a very small amount of an extremely effective activating agent has been incorporated. The rosin residue is non-corrosive, non-conductive and moisture and fungus resistant. The dry rosin residue actually insulates the surface from atmospheric corrosion. - 197 has proven to be nearly as active in fluxing ability as highly activated rosin fluxes, but the flux and its residue are considerably less conductive. The low conductivity results from a minimum of ionic activating agent as shown by the very high water extract resistivity.
$99.02 / each
Min Qty:1
|Qty Increment:1
Hazardous Materials require special handling.
The Kester 197 mildly activated rosin liquid flux is a homogeneous solution of high quality purified grade WW rosin in a specially blended alcohol vehicle into which a very small amount of an extremely effective activating agent has been incorporated. The rosin residue is non-corrosive, non-conductive and moisture and fungus resistant. The dry rosin residue actually insulates the surface from atmospheric corrosion. - 197 has proven to be nearly as active in fluxing ability as highly activated rosin fluxes, but the flux and its residue are considerably less conductive. The low conductivity results from a minimum of ionic activating agent as shown by the very high water extract resistivity.
- Attributes
- Features
Attributes
General Information
Item NameSoldering Flux
Series197
General Features
Shelf Life24 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorAmber
FormLiquid
Flux TypeRosin Mildly Activated
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Specific Gravity0.896
VOC501 g/L
Chemical CompositionIsopropanol, Rosin
Flux Formula197
Physical Properties
Container Size1 gal
Container TypeBottle
Odor/ScentMild
Supporting Information
Flux DesignatorROL1
RoHS Info2011/65/EU Directive
Features
- Vapor pressure of 43 hPa at 20 °C
