Kester 186-18 Rosin Mildly Activated Soldering Flux, 1 gal Bottle, Amber

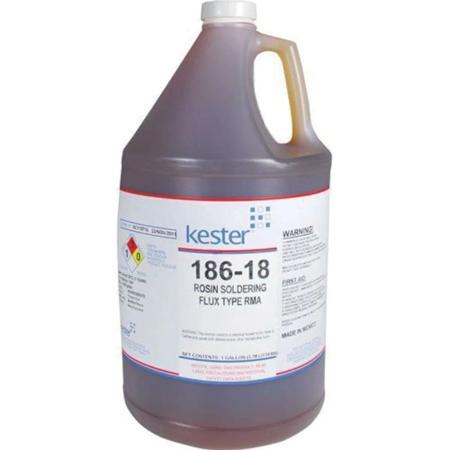

The image shown is representative of the product family and may not specifically be the individual item.  The Kester 186-18, under MIL-F-14256, was QPL approved as type RMA. Although the fluxing ability approaches that of type RA flux, the flux residue…

MFR #:6300180186

EIS #:KES18618G

Series #:186-18

MFR #:6300180186

EIS #:KES18618G

Series #:186-18

Temporarily Out of Stock

Min Qty:1

  |

Qty Increment:1

Hazardous Materials require special handling.
0
0
The Kester 186-18, under MIL-F-14256, was QPL approved as type RMA. Although the fluxing ability approaches that of type RA flux, the flux residue after soldering is non-corrosive and non-conductive. 186-18 rosin flux has been developed for use in critical applications where difficult assemblies are to be soldered, but process requirements stipulate use of type RMA flux. This flux possess high thermal stability for soldering multi-layer assemblies which require a high preheat temperature. The flux residue is also moisture and fungus resistant. - Exposure to high preheat temperatures does not degrade solubility of the residue in normal cleaning solvents. There is no surface insulation resistance degradation caused by the flux residue. The use of a minimum of ionic activating agents and the inactive nature of the residue permits leaving the residue on circuit board assemblies for many applications.
$63.17 /  US gallon

Min Qty:1

  |

Qty Increment:1

Hazardous Materials require special handling.
0
0
The Kester 186-18, under MIL-F-14256, was QPL approved as type RMA. Although the fluxing ability approaches that of type RA flux, the flux residue after soldering is non-corrosive and non-conductive. 186-18 rosin flux has been developed for use in critical applications where difficult assemblies are to be soldered, but process requirements stipulate use of type RMA flux. This flux possess high thermal stability for soldering multi-layer assemblies which require a high preheat temperature. The flux residue is also moisture and fungus resistant. - Exposure to high preheat temperatures does not degrade solubility of the residue in normal cleaning solvents. There is no surface insulation resistance degradation caused by the flux residue. The use of a minimum of ionic activating agents and the inactive nature of the residue permits leaving the residue on circuit board assemblies for many applications.

Attributes

General Information
Item NameSoldering Flux
Series186-18
General Features
Shelf Life24 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorAmber
Flux TypeRosin Mildly Activated
FormLiquid
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Chemical CompositionIsopropanol, Rosin, Benzyl Alcohol
Flux Formula186-18
Specific Gravity0.831
Physical Properties
Container Size1 gal
Container TypeBottle
Odor/ScentMild
Environmental Condition
Temperature Rating90 °C
Supporting Information
Flux DesignatorROL0
RoHS Info2011/65/EU Directive
