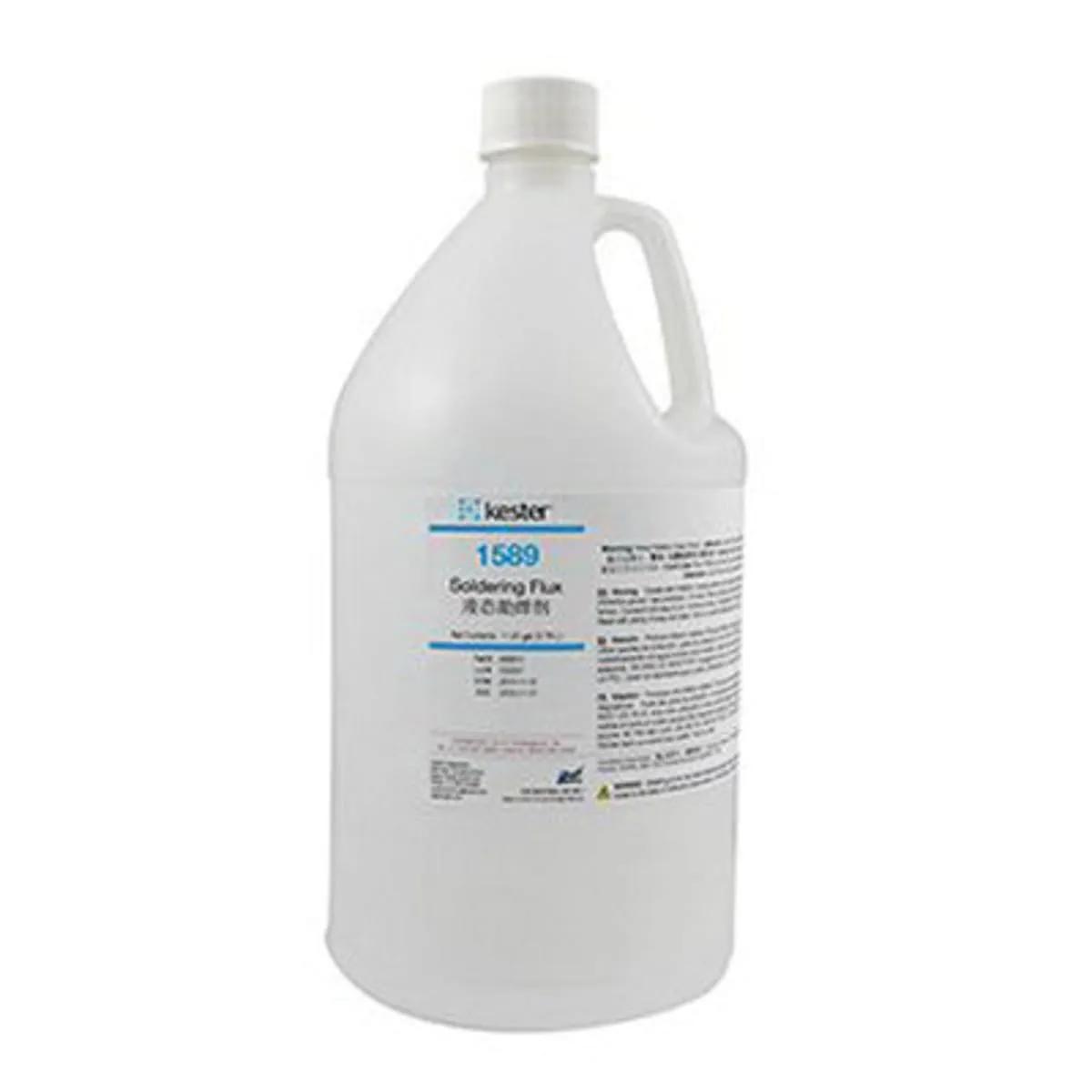

The Kester 1589 activated rosin liquid flux is a homogeneous solution of high quality, purified grade WW rosin blended into an alcohol solvent system. 1589 includes a very effective activating agent to provide superior fluxing ability. 1589 can be used for solder coating or tinning bare leads. - 1589 has been developed for fluxing applications where non-activated and mildly activated rosin fluxes are too inactive to remove metal oxides, where proper and complete residue removal of potentially corrosive water soluble organic acid flux is not possible and where soldering of electronic assemblies requires instant wetting and excellent capillary flow.
$255.82 / US gallon
Min Qty:1
|Qty Increment:1
The Kester 1589 activated rosin liquid flux is a homogeneous solution of high quality, purified grade WW rosin blended into an alcohol solvent system. 1589 includes a very effective activating agent to provide superior fluxing ability. 1589 can be used for solder coating or tinning bare leads. - 1589 has been developed for fluxing applications where non-activated and mildly activated rosin fluxes are too inactive to remove metal oxides, where proper and complete residue removal of potentially corrosive water soluble organic acid flux is not possible and where soldering of electronic assemblies requires instant wetting and excellent capillary flow.
- Attributes
- Features
Attributes
General Information
Item NameSoldering Flux
Series1589
General Features
Shelf Life24 Months
Storage Temperature10 to 25 °C
Design & Construction
ColorAmber
Flux TypeRosin Activated
FormLiquid
Performance Details
Vapor Pressure43 hPa
Chemical Properties
Chemical CompositionIsopropanol, Rosin, Dimethylammonium Chloride
Flux Formula1589
Specific Gravity0.837
VOC660 g/L
Physical Properties
Container Size1 gal
Container TypeBottle
Odor/ScentAlcohol
Supporting Information
Flux DesignatorROM1
RoHS Info2015/863 Directive
Features
- High thermal stability
- Improves soldering performance
- Vapor pressure of 43 hPa at 20 °C
