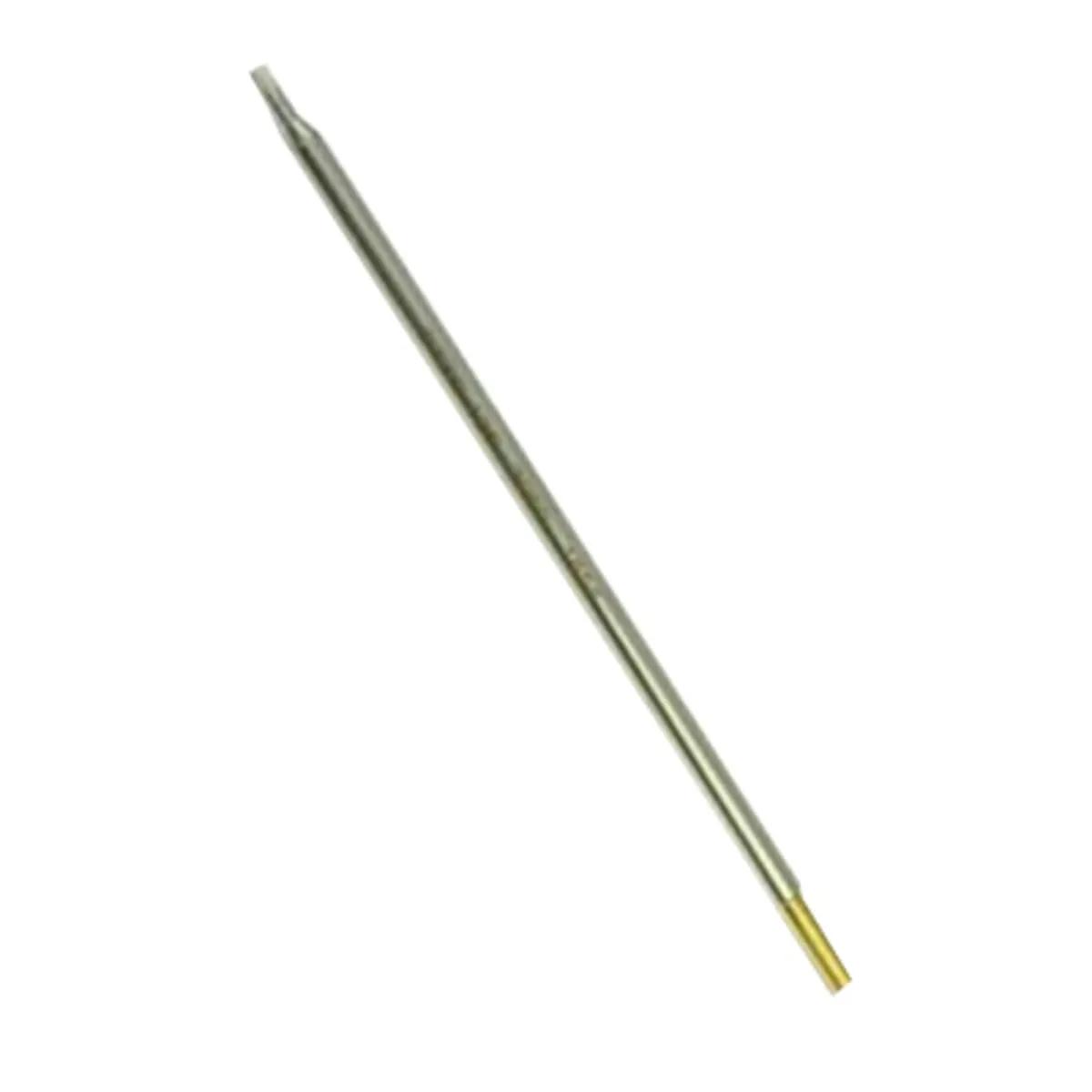

Metcal STTC-136 30 °Chisel Soldering Cartridge Tip, 0.1" x 0.39"
- MFR #STTC-136
- EIS #STTC-136
- Series #STTC
$49.99 / each
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 774 °F | Extra Long Chisel | 0.2 Inch x 0.3 Inch | $ / each | |
 | 774 °F | Chisel | 0.04 Inch x 0.25 Inch | $ / Piece | |
 | 774 °F | Chisel | 0.04 Inch x 0.33 Inch | $ / each | |
 | 774 °F | Chisel | 0.1 Inch x 0.24 Inch | $ / Piece | |
 | 774 °F | Chisel | 0.1 Inch x 0.39 Inch | $ / each | |
 | 700 °F | Chisel | 0.06 Inch x 0.39 Inch | $ / Piece |
STTC 30 °Cartridges provide a wide range of options for through hole and SMD rework. For use with the MX-500 and MX-5000 and MX-5200 systems and with the MX-RM3E and MX-H1-AV handpieces. - Metcal STTC series 30 °Chisel soldering cartridge tip for most standard temperature sensitive applications.
Features
- FR4/Fiberglass
Applications
- For Most Standard Temperature Sensitive Applications
General Information
| Item Name | Soldering Cartridge Tip |
| Series | STTC |
Design & Construction
| Tip Size | 0.1 Inch x 0.39 Inch |
| Tip Type | Chisel |
| Angle | 30 deg |
Performance Details
| Heat Cap | 774 °F |
| Heat Capacity | 774 °F |
Supporting Information
| For Use With | MX-500, MX-5000 and MX-5200 Systems, MX-RM3E and MX-H1-AV Hand-Piece |
| Tip Series | STTC |
