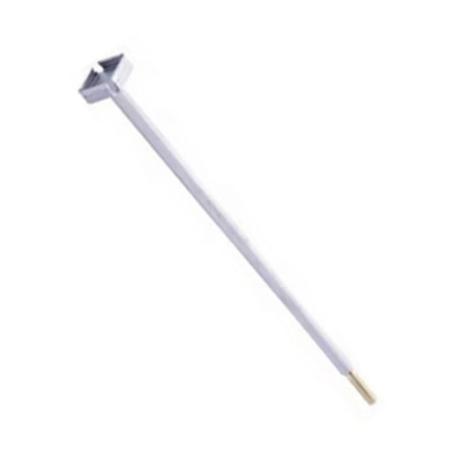

Metcal SMTC-1120 Quad Soldering Cartridge Tip, 0.44" L x 0.44" W x 0.1" D

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:SMTC
  • EIS #:SMTC-1120
  • Series #:SMTC
  • MFR #:SMTC
  • EIS #:SMTC-1120
  • Series #:SMTC
Available to Order

Min Qty:1

  |

Qty Increment:1

0
0
Rework quad cartridges for use with Metcal MX series soldering and rework with MX-H1-AV and MX-RM3E handpieces for conduction rework of surface mount components. The quad cartridges are used for the removal of four-sided devices such as QFP and PLCC. - Metcal SMTC Series Quad Soldering Cartridge Tip, For Use With: MX-500, MX-5000 and MX-5200 Systems, MX-RM3E and MX-H1-AV Hand-Piece.
$185.71 / each

Min Qty:1

  |

Qty Increment:1

0
0
Rework quad cartridges for use with Metcal MX series soldering and rework with MX-H1-AV and MX-RM3E handpieces for conduction rework of surface mount components. The quad cartridges are used for the removal of four-sided devices such as QFP and PLCC. - Metcal SMTC Series Quad Soldering Cartridge Tip, For Use With: MX-500, MX-5000 and MX-5200 Systems, MX-RM3E and MX-H1-AV Hand-Piece.

Product Options

Showing 8 out of 18 options
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.805 Inch L x 0.805 Inch W x 0.19 Inch D
EIS Part #:
SMTC-145
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
1.04 Inch L x 1.04 Inch W x 0.13 Inch D
EIS Part #:
SMTC-144
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.885 Inch L x 0.65 Inch W x 0.13 Inch D
EIS Part #:
SMTC-143
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.995 Inch L x 0.995 Inch W x 0.15 Inch D
EIS Part #:
SMTC-118
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.6 Inch L x 0.5 Inch W x 0.15 Inch D
EIS Part #:
SMTC-116
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.52 Inch L x 0.48 Inch W x 0.11 Inch D
EIS Part #:
SMTC-1159
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.7 Inch L x 0.7 Inch W x 0.15 Inch D
EIS Part #:
SMTC-114
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Heat Cap:
774 °F
Tip Size:
0.525 Inch L x 0.525 Inch W x 0.11 Inch D
EIS Part #:
SMTC-1132
$ / each

Attributes

General Information

Item NameSoldering Cartridge Tip

SeriesSMTC

Design & Construction

Tip Size0.44 Inch L x 0.44 Inch W x 0.1 Inch D
Tip TypeQuad

Performance Details

Heat Cap774 °F
Heat Capacity774 °F

Supporting Information

For Use WithMX-500, MX-5000 and MX-5200 Systems, MX-RM3E and MX-H1-AV Hand-Piece
Tip SeriesSMTC
