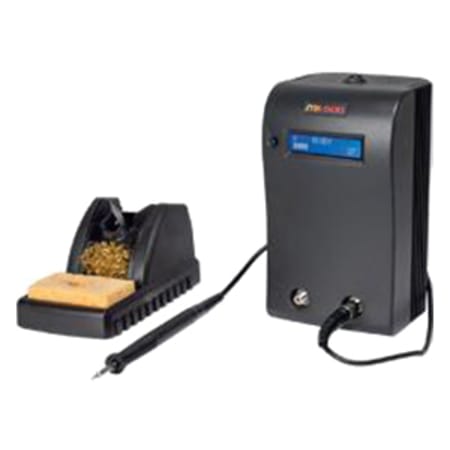

Metcal MX-500S 2 Port Digital Soldering and Rework System, 100 - 240VAC, 70W
- MFR #:MX-500S
- EIS #:MX-500S
- MFR #:MX-500S
- EIS #:MX-500S
Available to Order
Min Qty:1
|Qty Increment:1
Metcal’s MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon. The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. - The tip temperature is determined by the inherent metallurgical properties of the heater, no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.
$1,292.35 / Piece
Min Qty:1
|Qty Increment:1
Metcal’s MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon. The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. - The tip temperature is determined by the inherent metallurgical properties of the heater, no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.
- Attributes
- Features
Attributes
General Information
Item NameSoldering and Rework System
Design & Construction
Cord Length72 Inch
Display TypeDigital
Performance Details
Temperature Setting Range10 °C
Tip to Ground Potential< 2 mV
Tip to Ground Resistant2 ohm
Electrical Properties
Frequency Rating50 Hz
Output Power40 w
Power Consumption70 w
Voltage Rating100 VAC
Physical Properties
Station Dimensions4.8 Inch W x 8.8 Inch H x 4.8 Inch D
Weight2.65 kg
Environmental Condition
Temperature Stability1.1 °C
Supporting Information
Included HandpieceMX-RM3E
IncludesPower Supply, MX-RM3E Soldering and Rework Hand-Piece with Cartridge Removal Pad, WS1 Sleeper Workstand
Features
- Integrated power indication meter - a built-in net power meter which will display a graphical and numerical representation of the power applied to the cartridge
- User programmable PowerSave mode - the time to enter power save mode is adjustable from 10 - 120 min
- Ground fault interrupt - AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed
- Universal power supply - automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance
- Compatibility with all MX products such as MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip cartridges, handpieces and accessories
- Greater process control with SmartHeat technology
- Frequency of 50/60 Hz (Input), 13.56 MHz (Output)
- Temperature setting range of 10 to 40 °C (Ambient)
- Temperature stability of +/- 1.1 °C
- Voltage rating of 100 - 240VAC
