MFR #:WP616-SAC305
EIS #:PH19-WP616-SAC305
Series #:WP616-SAC305
MFR #:WP616-SAC305
EIS #:PH19-WP616-SAC305
Series #:WP616-SAC305

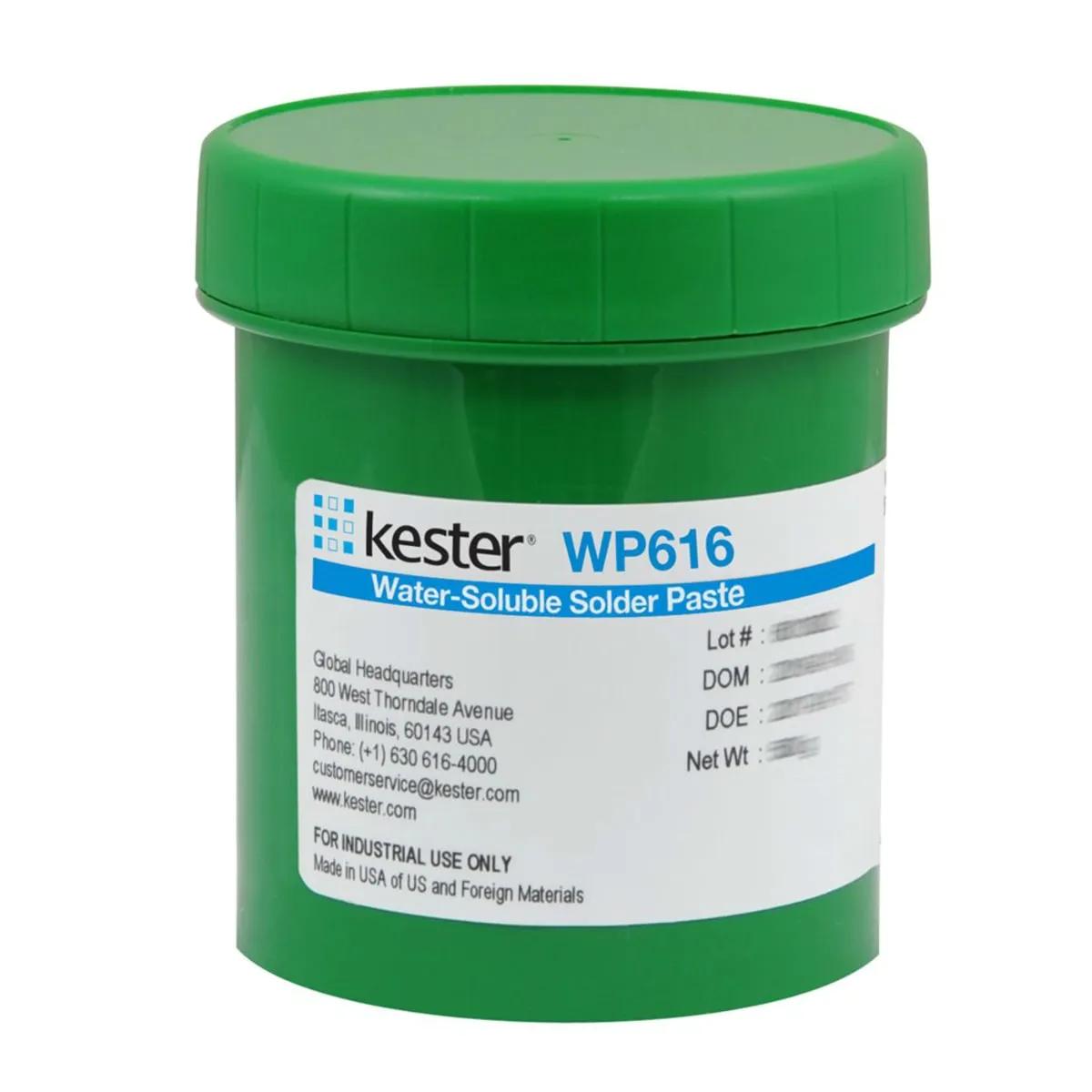

WP616 is a zero-halogen, lead-free, water-soluble solder paste formula for both nitrogen and air reflow applications. It has a wide reflow profile window with good solderability. - WP616 is a zero-halogen, lead-free, water-soluble solder paste formula for both nitrogen and air reflow applications. WP616 provides a combination of consistent print performance at wide humidity levels, excellent solderability and ease of cleaning, while maintaining a zero-halogen flux formulation. WP616 is a stable water-soluble formula, providing consistent stencil life, tack time and print definition. WP616 is classified as ORM0 flux under IPC J-STD-004B.
$187.06
- $224.46
Select from the options below
WP616 is a zero-halogen, lead-free, water-soluble solder paste formula for both nitrogen and air reflow applications. It has a wide reflow profile window with good solderability. - WP616 is a zero-halogen, lead-free, water-soluble solder paste formula for both nitrogen and air reflow applications. WP616 provides a combination of consistent print performance at wide humidity levels, excellent solderability and ease of cleaning, while maintaining a zero-halogen flux formulation. WP616 is a stable water-soluble formula, providing consistent stencil life, tack time and print definition. WP616 is classified as ORM0 flux under IPC J-STD-004B.
Product Options
Showing 2 out of 2 options
Container Size: 600 g | Container Type: Cartridge | Particle Type: Type 4 | EIS Part #: SN96.5WP616-600GT4 | $ / Cartridge | ||
Container Size: 500 g | Container Type: Jar | Particle Type: Type 4 | EIS Part #: SN96.5WP616-500GT4 | $ / Piece |
- Attributes
- Features
Attributes
General Information
Item NameSolder Paste
SeriesWP616-SAC305
Design & Construction
Flux TypeOrganic Activated or Water Soluble
Particle TypeType 4
Chemical Properties
Flux FormulaWP616
Lead FreeYes
Physical Properties
AlloySn96.5 Ag3.0 Cu0.5 (SAC305)
Supporting Information
Flux DesignatorORM0
Features
- Superior reflow characteristics
- Classified as ORM0 per J-STD-004B
- Excellent activity and printability
- Zero-Halogen (none intentionally added)
- Wide reflow profile window with good solderability
- Reflowable in air and nitrogen conditions
- Cleaning can be accomplished with heated de-ionized water
