MFR #:FL250D-6337-90
EIS #:PH19-FL250D-6337-90
Series #:FL250D-6337-90
MFR #:FL250D-6337-90
EIS #:PH19-FL250D-6337-90
Series #:FL250D-6337-90

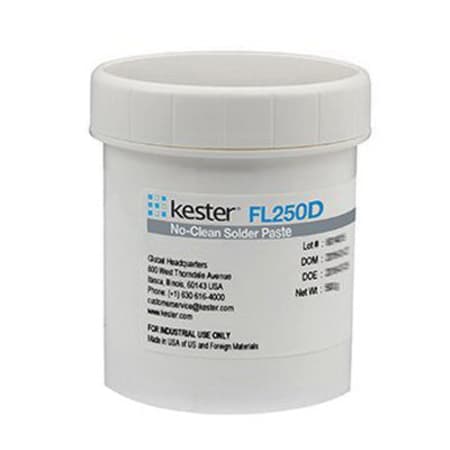

The Kester FL250D is a no-clean, air or nitrogen reflowable solder paste specifically designed for automotive requirements. FL250D is compatible with post-soldering process chemicals, including conformal coatings and potting compounds. - FL250D is capable of stencil printing downtimes of up to 90 min with an effective first print at 20 mils. FL250D also has the capability of printing up to 8 in/sec (200 mm/sec) with squeegees or within an enclosed head.
$147.27
- $149.24
Select from the options below
The Kester FL250D is a no-clean, air or nitrogen reflowable solder paste specifically designed for automotive requirements. FL250D is compatible with post-soldering process chemicals, including conformal coatings and potting compounds. - FL250D is capable of stencil printing downtimes of up to 90 min with an effective first print at 20 mils. FL250D also has the capability of printing up to 8 in/sec (200 mm/sec) with squeegees or within an enclosed head.
Product Options
Showing 2 out of 2 options
Container Size: 600 g | Container Type: Cartridge | EIS Part #: SN63FL250D-600G | $ / Cartridge | ||
Container Size: 500 g | Container Type: Jar | EIS Part #: SN63FL250D-500G | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSolder Paste
SeriesFL250D-6337-90
General Features
Shelf Life4 Months
Storage Temperature0 to 10 °C
Design & Construction
ColorSilver Gray
FormPaste
Flux TypeNo-Clean
Particle TypeType 3
Chemical Properties
Flux FormulaFL250D
Mesh Size-325/+500
Physical Properties
Odor/ScentMild
AlloySn63 Pb37
Environmental Condition
Melting Range100 °C
Supporting Information
Applicable MaterialsStainless Steel, Molybdenum, Nickel Plated or Brass
Flux DesignatorROL0
RoHS Info2011/65/EU Directive
Features
- Capable of 90 min break times in printing
- Contains halogen
- Compatible with 0201 technology
- Compatible with DEK ProFlow and MPM RheoPump enclosed print head systems
- Excellent printing characteristics to 0.4 mm (16 Mil) pitch with type 3 powder
- Excellent residue characteristics that are completely compatible with conformal coating and potting processes
- Excellent wetting on a variety of substrates, including OSP
- High print speeds to 200 mm/sec (8 Inch/sec)
- Scrap is reduced due to less paste dry out
- Stable tack over 8+ hr
- Stencil life of 8+ hr (process dependent)
- Metals percentage of 90%
- Temperature rating of 21 to 25 °C
Applications
- For Stencil Printing Applications
