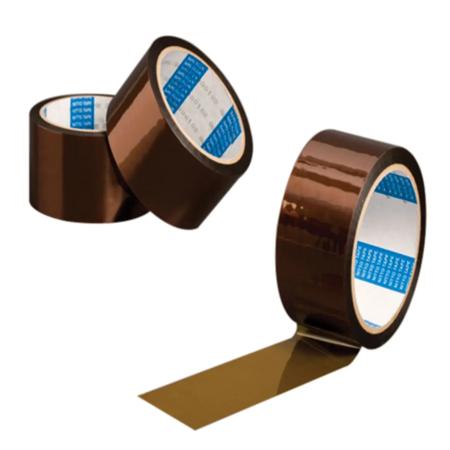

Nitto P-222 Polyimide Solder Masking Tape

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:P-222
  • EIS #:PH22-P-222
  • MFR #:P-222
  • EIS #:PH22-P-222
0
0
Nitto P-222 amber is for heavy-duty, high temperature applications where a 1-mil polyimide will not provide adequate strength or physical protection. Nitto's Kapton high performance backing ensures consistent quality. Tough backing provides the ultimate in tensile strength, tear, puncture and abrasion resistances. - Nitto P-222 is a versatile tape and is used as the primary insulation in high performance, flexible wiring boards and heater blanket assemblies. Superior physical and electrical properties are retained at higher temperatures.
$10.79
 - $360.68
Select from the options below
0
0
Nitto P-222 amber is for heavy-duty, high temperature applications where a 1-mil polyimide will not provide adequate strength or physical protection. Nitto's Kapton high performance backing ensures consistent quality. Tough backing provides the ultimate in tensile strength, tear, puncture and abrasion resistances. - Nitto P-222 is a versatile tape and is used as the primary insulation in high performance, flexible wiring boards and heater blanket assemblies. Superior physical and electrical properties are retained at higher temperatures.

Product Options

Showing 8 out of 12 options
The image shown is representative of the product family and may not specifically be the individual item.
Width:
4.5 Inch
EIS Part #:
P-222X4.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
4 Inch
EIS Part #:
P-222X4
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
2 Inch
EIS Part #:
P-222X2
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1.5 Inch
EIS Part #:
P-222X1.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
1 Inch
EIS Part #:
P-222X1
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
0.75 Inch
EIS Part #:
P-222X.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
0.745 Inch
EIS Part #:
P-222X.745
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width:
0.5 Inch
EIS Part #:
P-222X.5
$ / Roll

Attributes

General Information

Item NameSolder Masking Tape

SeriesP-222

General Features

Storage Temperature10 to 27 °C

Design & Construction

Adhesive TypeSilicone
Backing MaterialPolyimide
ColorAmber
ShapeRoll

Performance Details

Adhesive Strength26 oz/Inch
Flame RetardantYes
Tensile Strength71 lb/Inch

Electrical Properties

Dielectric Strength13000 V

Physical Properties

Core Size3 Inch
Elongation90%
Length36 Yard
Thickness3.7 mil

Environmental Condition

ResistsPuncture, Tear, Abrasion
Temperature Rating180 °C
