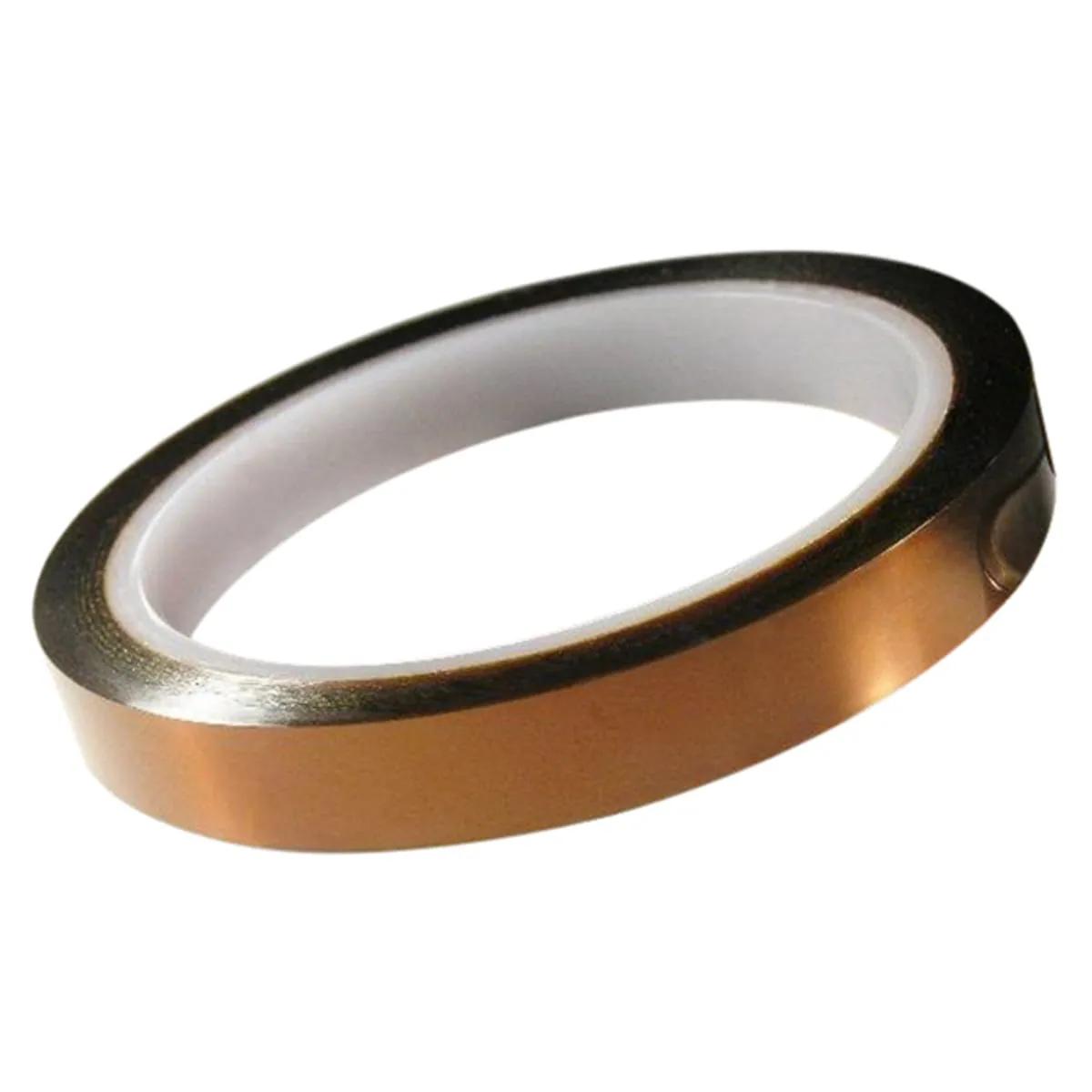

CHR K350 Polyimide Solder Masking Tape
- MFR #K350
- EIS #PH22-K350
$23.00 - $372.32
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 1.5 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll | |
| 4 Inch | $ / Roll | |
| 1.25 Inch | $ / Roll | |
| 0.5 Inch | $ / Roll | |
| 1 Inch | $ / Roll more info |
Saint-Gobain K350 polyimide films are employed because of their extreme heat resistance. Service temperatures range from -100 to 500 °F. These flame retardant films exhibit high tensile strength and conformability, good solvent resistance, excellent dielectric strength and good abrasion resistance. - K350 has a silicone adhesive. Polyimide tape applications include electrical insulation, capacitor, transformer and coil wrapping, electronic assembly and wave solder protection.
Features
- Acrylic adhesive can be thermoset
- Available with or without a liner
- Excellent mechanical and electrical properties
- Impact and abrasion resistant
- Offer excellent dielectric strength, while the burning of the adhesive forms a non-conductive ash
- Offers outstanding resistance to cut-through and is impact and abrasion resistant
- Polyimide backing meets MIL-P-46112B
- Constructed to fill the requirements of a high performance thermoplastic polyimide backing material
- Designed to fill the various needs of electrical insulation requirements
Applications
- For Electrical Insulation, Capacitor, Transformer and Coil Wrapping, Electronic Assembly and Wave Solder Protection
General Information
| Item Name | Solder Masking Tape |
| Series | K350 |
General Features
| Shelf Life | 6 Months |
Design & Construction
| Adhesive Type | Silicone |
| Backing Material | Polyimide |
| Color | Amber |
Performance Details
| Adhesive Strength | 20 oz/Inch |
| Flame Retardant | Yes |
| Tensile Strength | 50 lb/Inch |
Electrical Properties
| Dielectric Strength | 10000 V |
Physical Properties
| Elongation | 75% |
| Length | 36 Yard |
| Thickness | 3.5 mil |
Environmental Condition
| Resists | Heat, Solvent, Abrasion |
| Temperature Rating | 180 °C |
