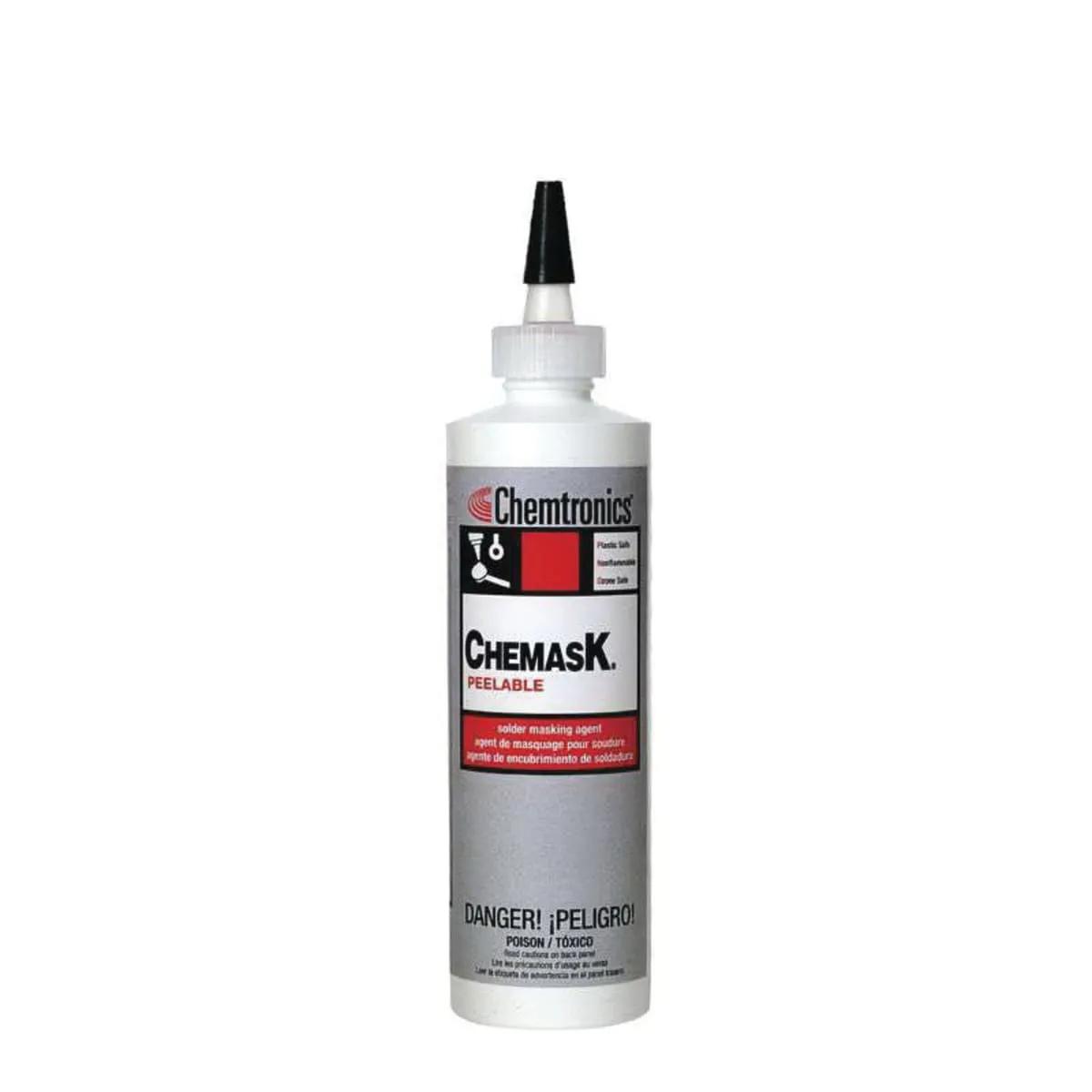

ITW Chemtronics M Chemask® Solder Mask
- MFR #M
- EIS #PH19-M
- Series #M
$30.54 - $285.12
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / US gallon Pack: 1/Case | |
 | 8 oz | $ / each Pack: 24/Case |
Chemask is a fast curing peelable solder masking agent. It contains natural latex formulated with high temperature resistant compounds that protect component-free areas during wave soldering. - Chemask may be used to protect pins, posts, contacts and edge connections during conformal coating processes. Latex material is compatible with flux systems and stable with cleaning solvents.
Features
- Dries tack-free in 30 min
- Easy to use - just peel off dried Chemask masking agent
- Natural latex has superior strength and elongation, can stretch to five times cured length without breaking
- Viscosity of 20000 - 28000 cP
Applications
- For Protecting Contacts During Lead Free Soldering
General Information
| Item Name | Solder Mask |
| Trade Name | Chemask® |
| Series | M |
General Features
| Shelf Life | 24 Months |
Design & Construction
| Color | Pale Pink |
| Form | Liquid |
Performance Details
| Cure Time | 30 min |
Chemical Properties
| Chemical Composition | Methanol, Zinc Bis(Dibutyldithiocarbamate), Titanium Dioxide |
| Viscosity | 20000 cP |
Physical Properties
| Odor/Scent | Ammonia |
Supporting Information
| Removal Method | Peelable |
