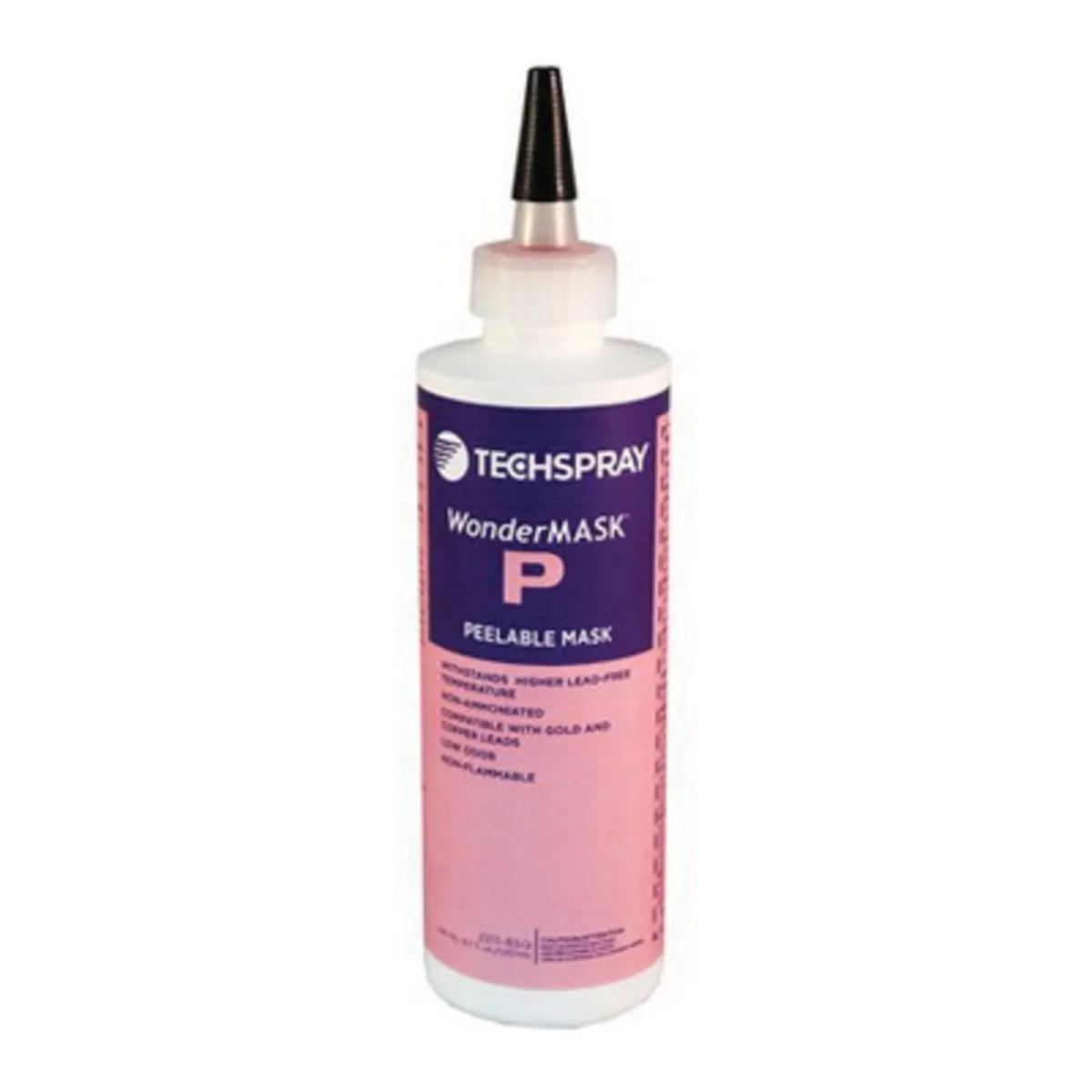

Techspray WonderMASK® 2211 Peelable Solder Mask
- MFR #2211
- EIS #PH19-2211
- Series #2211
$23.23 - $214.33
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 1 gal | $ / each Pack: 1 Unit/Case | |
 | 8 oz | $ / each Pack: 24 Unit/Case |
Wondermask P is a temporary, peelable solder mask comprised of a thixotropic, synthetic acrylic latex designed to withstand fluxing, wave soldering and cleaning operations. Unlike natural latex mask, it contains no offensive ammonia and hence is non-corrosive to copper, gold, silver or pre-soldered surfaces. May be used in applications such as robotic, pneumatic, hand applied or template screening (not recommended for silk screening). - In addition, stability problems are averted. When applied, the product is opaque pink and when cured, becomes completely translucent red. Cured mask can be for masking conformal coatings.
Features
- Non-ammoniated
- Non-flammable
- Non-ozone depleting
- Easily peelable
- Low odor
- Indicator darkens as it cures
- Compatible with gold and copper leads
- Non-corrosive
- Thermal cure type
- Cure time of 1 hr at Ambient Temperature, 30 min at 65 °C, 20 min at 82 °C
Applications
- For use in Electronic Assembly, Soldering / Desoldering
General Information
| Item Name | Solder Mask |
| Series | 2211 |
Design & Construction
| Color | Pink/Red |
| Form | Liquid |
Performance Details
| Cure Time | 1 hr |
Chemical Properties
| Chemical Composition | Deionized Water, Hydroxylated Lecithin, 5-Chloro-2-Methyl-4-Isothiazolin-3-One, Alkyl Benzyl Phthalate, Alkoxylated Alkyl Phenol, Nonylphenol Ethoxylate, Magnesium Nitrate |
Supporting Information
| Removal Method | Peelable |
| RoHS Info | 2011/65/EU Directive |
