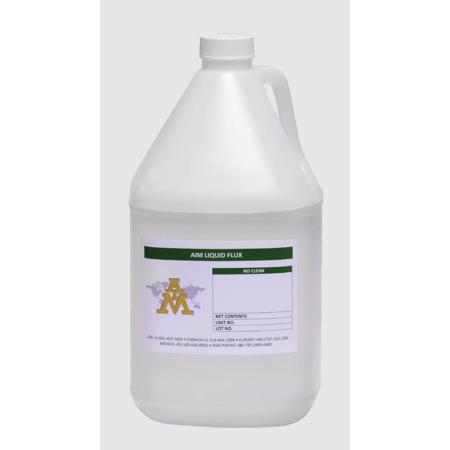

AIM Solder 19024 NC280 No Clean Liquid Rework Flux, 1 Gal
- MFR #19024
- EIS #19024-AIM
$121.74 / US gallon
Available to Order
Min QTY1QTY Increment1more info
NC280 No Clean Liquid Flux has been formulated specifically for high reliability applications including automotive, medical and military. NC280 unique formula passes J-Std-004A and B SIR without thermal exposure. NC280 is ideally suited to applications incorporating localized heat application such as hand soldering, selective soldering, tinning insulated wire, etc. NC280 can be effectively used will all leaded and leadfree alloys. NC280 leaves minimal post process residue that, if required, can be easily removed with most commercially available flux cleaners.
Features
- Passes SIR in Raw State
- Ideal for Rework
- Halide-Free
- Excellent Wetting
- REACH/RoHS Compliant
- Hi-Reliability Applications
Applications
- Designed for rework and tinning
- Excellent activity to promote wetting on bare copper and aged components and substrates
General Information
| Item Name | Solder Flux |
| Trade Name | AIM Solder |
General Features
| Standards | J-STD-004, J-STD-004B, IPC-TM-650, REACH/RoHS |
| Net Weight | 1 gal |
| Shelf Life | 1 year |
| Storage Temperature | 4–40 C (40–100 F) |
Design & Construction
| Color | Light Yellow |
| Form | Liquid |
Chemical Properties
| Chemical Composition | Isopropyl Alcohol (>75–90%), Naphtha (10–25%), Suberic acid (<3%), Rosin (<3%) |
| Specific Gravity | 0.79 |
Physical Properties
| Container Size | 1 gal |
| Container Type | Bottle |
| Odor/Scent | Alcohol-Like |
Supporting Information
| RoHS Info | RoHS Compliant |
| Use With | Leaded and Lead-Free Alloys |
