3M 1170 EMI Smooth Aluminum Foil Shielding Tape, 1/2" x 18 yd x 3.2 Mil, Silver, MFR ID 7000132695
- EIS #3M1170X.5
- UPC #00051138497552
$62.45 / Roll
En Stock
Cantidad mínima1QTY Increment1
more info

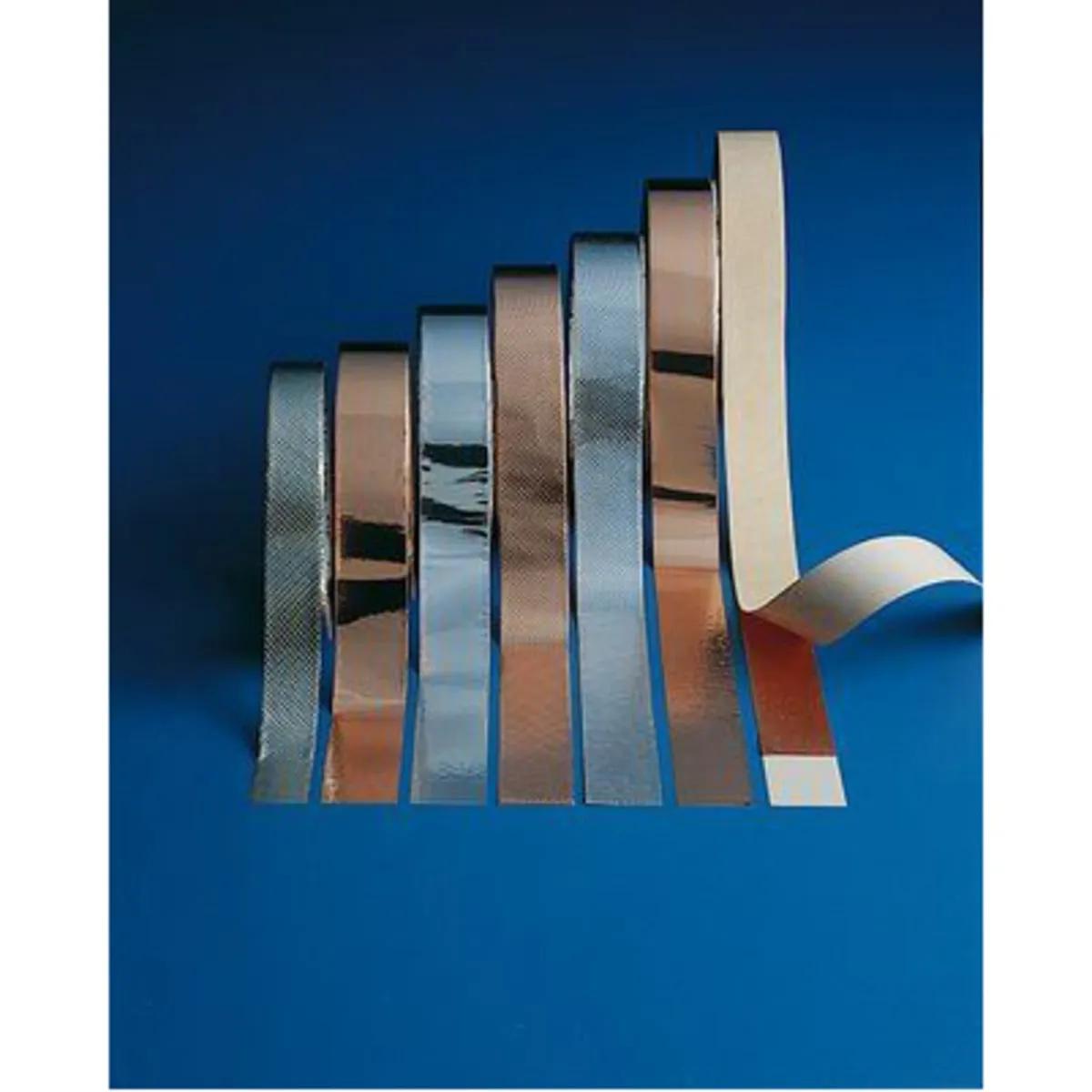

3M™ EMI Shielding Tape 1170 has aluminum foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape is designed for applications such as static charge draining, seaming shielded rooms, cable wrapping and providing surface contact to non solderable materials. Ideal for EMI shielding, grounding and static charge draining. UL Listed and RoHS 2011/65/EU Compliant.
3M™ EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of 40 to 266 °F ( 40 to 130 °C). The tape is rated for 600V dry applications.
Features
- 2 Mil smooth aluminum foil backing coated with a conductive adhesive
- Electrical resistance of 0.01 ohm
- Temperature rating of -40 to 130 °C
Applications
- For Electronics Industry such as Static Charge Draining, Seaming Shielded Rooms, Cable Wrapping and Surface Contact to Non-Solderable Materials
General Information
| Item Name | Shielding Tape |
| Trade Name | 3M |
General Features
| Shelf Life | 60 Months |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Aluminum Foil |
| Color | Silver |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 20 lb/Inch |
| Flame Retardant | Yes |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 5% |
| Width | 0.5 Inch |
| Length | 18 Yard |
| Thickness | 3.2 Mil |
Environmental Condition
| Temperature Rating | 130 °C |
