Von Roll DMD 100 Round Form Wedge, MFR ID Dacron® Mylar® Dacron®-100-RND-36-TU

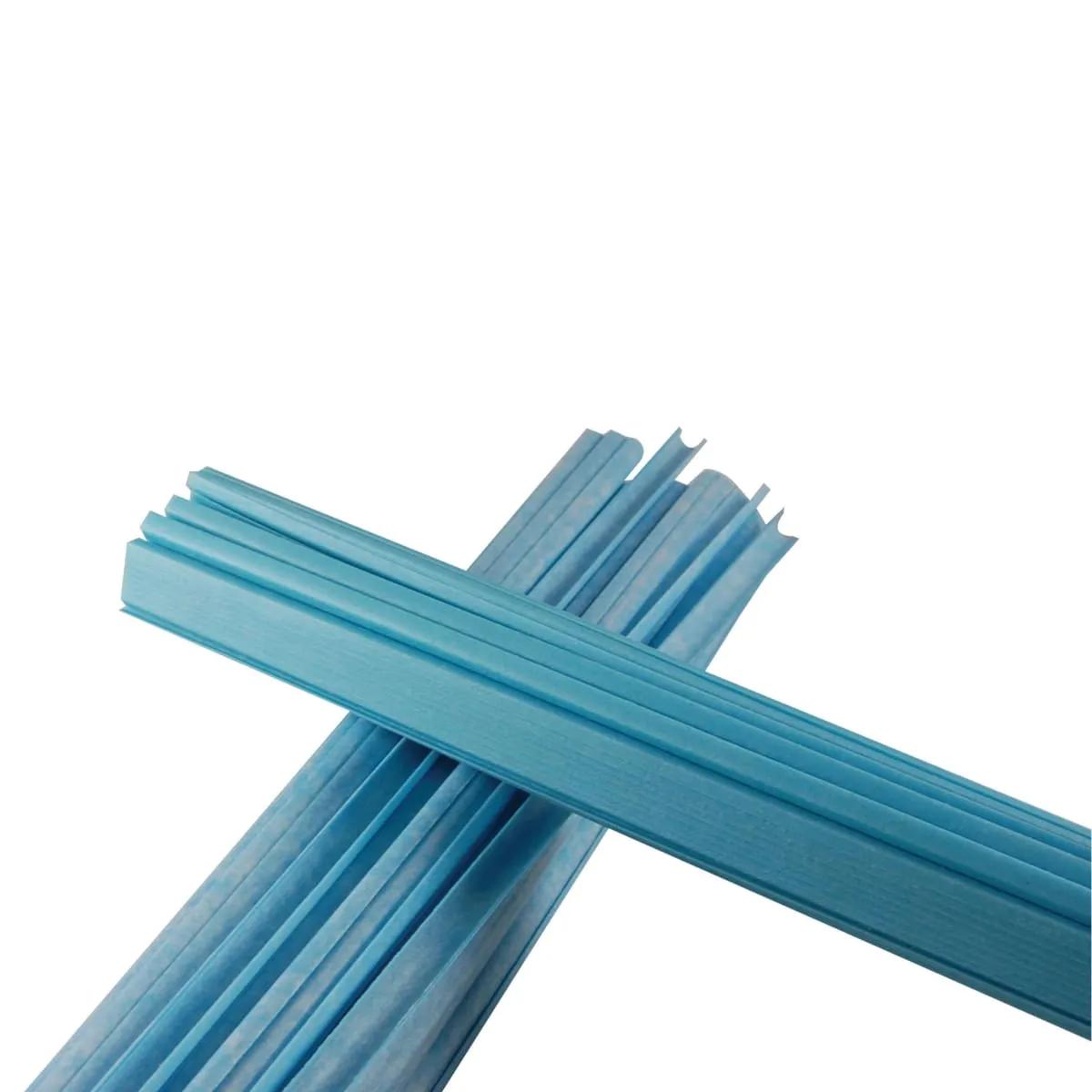

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:Dacron® Mylar® Dacron®-100-RND-36-TU
  • EIS #:PH21-Dacron Mylar Dacron-100-RND-36-TU
  • Series #:Dacron® Mylar® Dacron®-100-RND-36-TU
  • MFR #:Dacron® Mylar® Dacron®-100-RND-36-TU
  • EIS #:PH21-Dacron Mylar Dacron-100-RND-36-TU
  • Series #:Dacron® Mylar® Dacron®-100-RND-36-TU
0
0
DMD 100 is a Class "F" 3 layer insulation composite used as a coil separator, slot liner, wedge and phase insulation for both manual and automatic insertion. It also serves as a primary layer and outer wrap insulation for transformers and for hermetically sealed motors. - DMD 100 is a Class "F" 3 layer insulation composite used as a coil separator, slot liner, wedge and phase insulation for both manual and automatic insertion.
$203.66
 - $433.05
Select from the options below
0
0
DMD 100 is a Class "F" 3 layer insulation composite used as a coil separator, slot liner, wedge and phase insulation for both manual and automatic insertion. It also serves as a primary layer and outer wrap insulation for transformers and for hermetically sealed motors. - DMD 100 is a Class "F" 3 layer insulation composite used as a coil separator, slot liner, wedge and phase insulation for both manual and automatic insertion.

Product Options

Showing 6 out of 6 options
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.2188 Inch Inch
Width:
0.25 Inch
EIS Part #:
WGEDMD99
$ / Foot
Pack: 250 ft/Tube
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.1875 Inch Inch
Width:
0.3125 Inch
EIS Part #:
WGEDMD94
$ / Foot
Pack: 250 ft/Tube
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.1875 Inch Inch
Width:
0.2188 Inch
EIS Part #:
WGEDMD86
$ / Foot
Pack: 250 ft/Tube
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.1719 Inch Inch
Width:
0.1563 Inch
EIS Part #:
WGEDMD70
$ / Foot
Pack: 250 ft/Tube
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.1406 Inch Inch
Width:
0.1288 Inch
EIS Part #:
WGEDMD65
$ / Foot
Pack: 250 ft/Tube
The image shown is representative of the product family and may not specifically be the individual item.
Height:
0.1406 Inch Inch
Width:
0.1563 Inch
EIS Part #:
WGEDMD60
$ / Foot
Pack: 250 ft/Tube

Attributes

General Information

Item NameRound Form Wedge
Trade NameDacron® Mylar® Dacron®-100

SeriesDacron® Mylar® Dacron®-100-RND-36-TU

General Features

TypeTriplex

Design & Construction

Insulation TypeClass F
MaterialPolyester

Physical Properties

Thickness20 mil
