Von Roll RMR Duplex Polyester Film Laminate Sheet, MFR ID Rag Mylar®-SHT
- MFR #:Rag Mylar®-SHT
- EIS #:PH21-Rag Mylar-SHT
- Series #:Rag Mylar®-SHT
- MFR #:Rag Mylar®-SHT
- EIS #:PH21-Rag Mylar-SHT
- Series #:Rag Mylar®-SHT

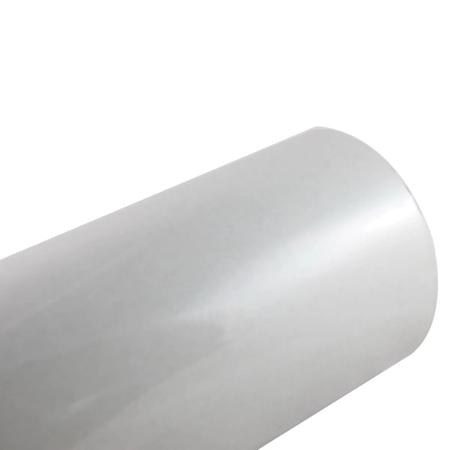

Acuflex® rag paper/polyester film laminates are constructed from 100% pure cotton rag paper and electrical grade polyester film bonded with Von Roll Isola's Thermal Bond adhesive system. - These laminates are available in duplex constructions.
$8.43
- $12.31
Select from the options below
Acuflex® rag paper/polyester film laminates are constructed from 100% pure cotton rag paper and electrical grade polyester film bonded with Von Roll Isola's Thermal Bond adhesive system. - These laminates are available in duplex constructions.
Product Options
Showing 2 out of 2 options
 | Thickness: 9 mil | Width: 36 Inch | EIS Part #: RM7201 | $ / Sheet | |
| Thickness: 12 mil | Width: 24 Inch | EIS Part #: RM10201 | $ / Sheet |
- Attributes
- Features
- Applications
Attributes
General Information
Item NamePolyester Film Laminate
Trade NameRag Mylar®
SeriesRag Mylar®-SHT
General Features
TypeDuplex
Design & Construction
Insulation TypeClass B
Physical Properties
Length36 Inch
Features
- Tough, affordable laminates for a wide variety of applications
- Excellent resistance to cut-through and edge tear
- Many UL systems including Acuflex laminates are available for Class B-130 °C, Class F-155 °C, may often be used as secondary insulation through Class H-180 °C
- Wide range of constructions to optimize mechanical and electrical designs
- Volume Resistivity: 10^14 Ohm-cm
Applications
- Motors
- Generators
- Transformers
- Sub-Fractional to the Largest Rotating Electrical Equipment as Slot, Phase and End-Turn Insulation
- Ground and Wrapper Insulation in Dry-type Transformers
- Formed and Fabricated Parts
