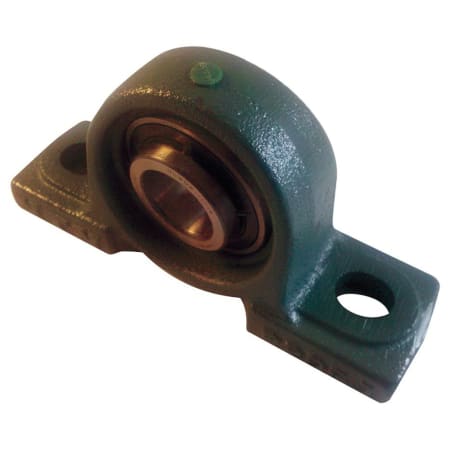

NTN UCP207-107D101 High Base Pillow Block Ball Bearing, 1-7/16" Bore x 1-7/8" W
EIS #:UCP207-107D101
Series #:699
EIS #:UCP207-107D101
Series #:699
Out of Stock
Min Qty:1
|Qty Increment:1
NTN UCP207-107D101 High Base Pillow Block Ball Bearing. - NTN Ball Bearing High Base Pillow Block Bearing, Bore Diameter: 1.4375 Inch, Duty: Standard, Finish: Painted, Lubrication Type: Grease, Static Load Capacity: 3440 lb, Temperature Rating: 250 °F, Width: 1.875 Inch.
$121.17 / Piece
Min Qty:1
|Qty Increment:1
NTN UCP207-107D101 High Base Pillow Block Ball Bearing. - NTN Ball Bearing High Base Pillow Block Bearing, Bore Diameter: 1.4375 Inch, Duty: Standard, Finish: Painted, Lubrication Type: Grease, Static Load Capacity: 3440 lb, Temperature Rating: 250 °F, Width: 1.875 Inch.
- Attributes
- Features
Attributes
General Information
Item NamePillow Block Bearing
Trade NameNTN
Series699
General Features
TypeBall, High Base
Net Weight1.67kg
Design & Construction
DutyStandard
Enclosure TypeDouble Sealed
Lubrication TypeGrease
Performance Details
Static Load Capacity3440 lb
Physical Properties
Bore Diameter1.4375 Inch
Width1.875 Inch
Features
- Bolt Hole Center-to-Center: 5 Inch
- Mounting Surface to Shaft Center: 1-7/8 Inch
- Bearing Housing Material Type: Cast Iron
- Shaft Locking Type: Set Screw
- Bearing Insert Material: 52100 Chrome Steel
- Number of Bolts: 2
- Bolt Size: 1/2 Inch
- Bearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent
- Dynamic Load Capacity: 5750 lb
- Designation of Housing: P207
- Designation of Bearing: UC207G2
- Temperature Rating: -20 to 250 °F
