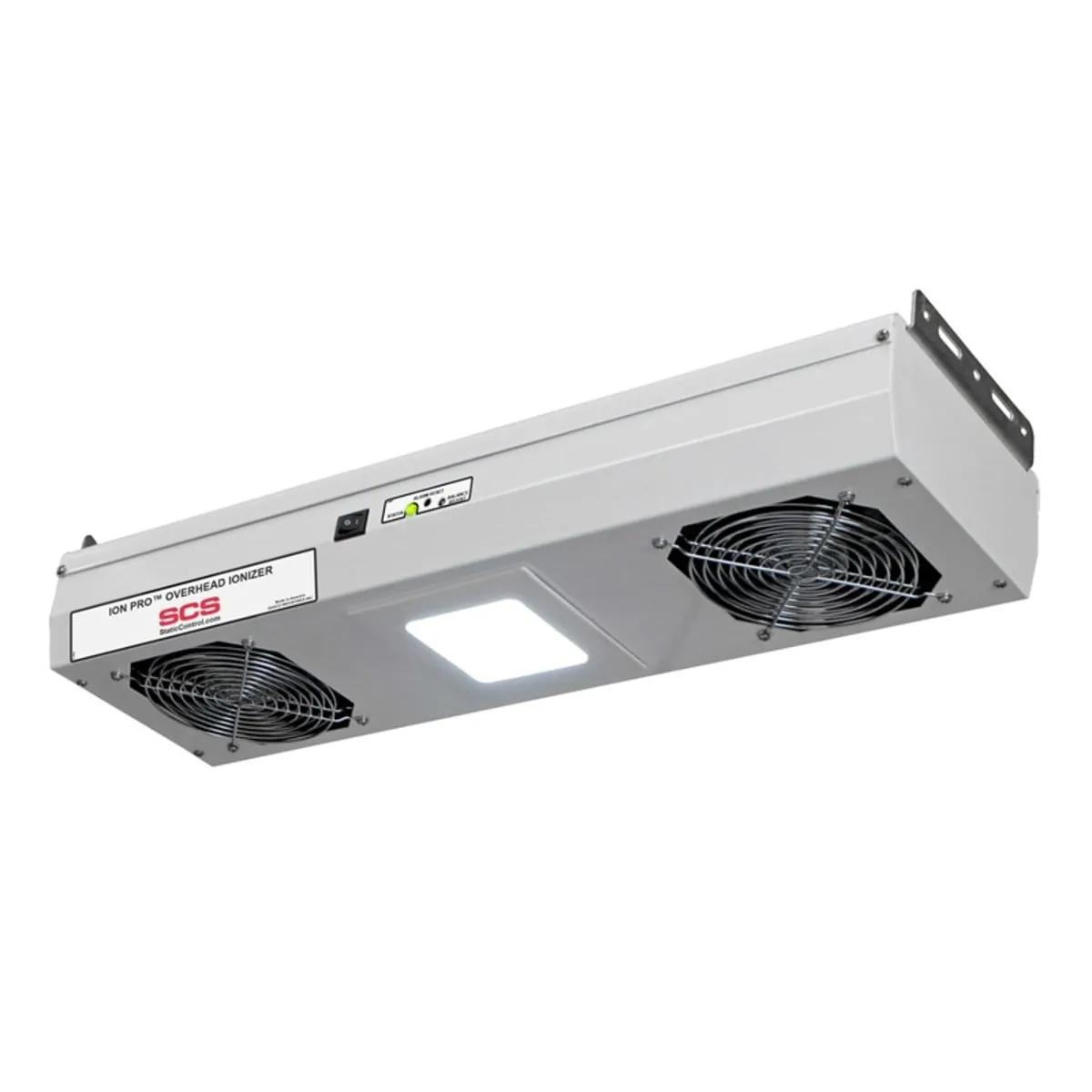

SCS Ion Pro Overhead Ionizer With Lights, MFR ID SCS-IonPro-Overhead
- MFR #SCS-IonPro-Overhead
- EIS #PH13-SCS-IONPRO-OVERHEAD
- Series #Ion Pro
$2,497.02
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 3-Fan | $ / Piece |
SCS Ion Pro™ Overhead Ionizers are steady-state DC ionizers designed for use in ESD protected areas. The SCS 770112 two-fan ionizer has a 2' x 4' coverage area, and the SCS 770113 three-fan ionizer has a 2' x 5' coverage area. - The Ion Pro™ Overhead Ionizers discharge times and low offset voltage meet the required limits of ANSI/ ESD S20.20 tested per ANSI/ESD STM3.1 and ESD TR53. Its emitters are made of pure tungsten and spaced further apart to minimize ion recombination, increase discharge efficiency and provide a broader coverage area. The fans have 3 speeds (high, medium, low) which produce consistent performance at all 3 settings. The Ion Pro™ Overhead Ionizers utilize an auto-feedback system that continuously optimizes its performance and automatically alarms and shuts down should its supply voltage drop.
Features
- Two Fan Steady-State DC Ionization For 2 x 4 Coverage Area
Neutralizes electrostatic charges on insulators and ungrounded conductors within the coverage area - 3 Seconds or Less Discharge Time with +/- 10 Volts Offset Voltage (Balance)
Meets the required limits for ionization use in electronics manufacturing areas per ANSI/ESD S20.20 and ESD TR53 - One 700 Lumen LED Panel Light (Cool White)
Adds additional light to operator work area for improved visibility - 3 Position Fan Speed: Low, Medium, High
Ionization performance is consistent at all speeds and allows for use with sensitive applications, such as calibration, test, or repair procedures - Sealed Plenum Air Flow
Prevents contamination from being introduced to workstation - Auto-Feedback System (Audible and Visual Alarm Through Single Tri-Color LED)
Unit will automatically shut down and alarm if/when supply voltage drops - 120/220 VAC Input Voltage Selectable
Unit can be used with 110VAC or 220VAC power sources - Replaceable Emitter Pins
Field replaceable emitter pins allow for minimal downtime - NIST Calibrated with Certificate Included
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. - Made in the United States of America
General Information
| Item Name | Overhead Ionizer With Lights |
| Series | Ion Pro |
