Aven Tools 26800B-355 Stereo Zoom Trinocular Microscope SPZHT-135, MFR ID 26800B-355
- MFR #26800B-355
- EIS #26800B-355-AVE
- UPC #00766955376682
$5,027.53 / Piece
Agotado
Cantidad mínima1QTY Increment1
more info
Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like

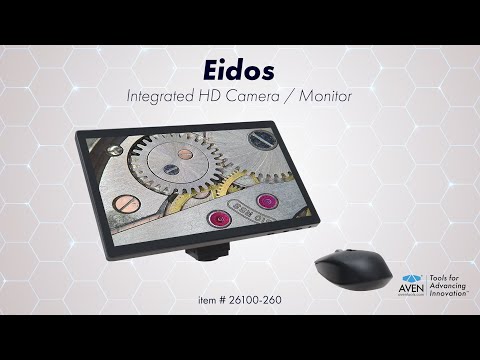

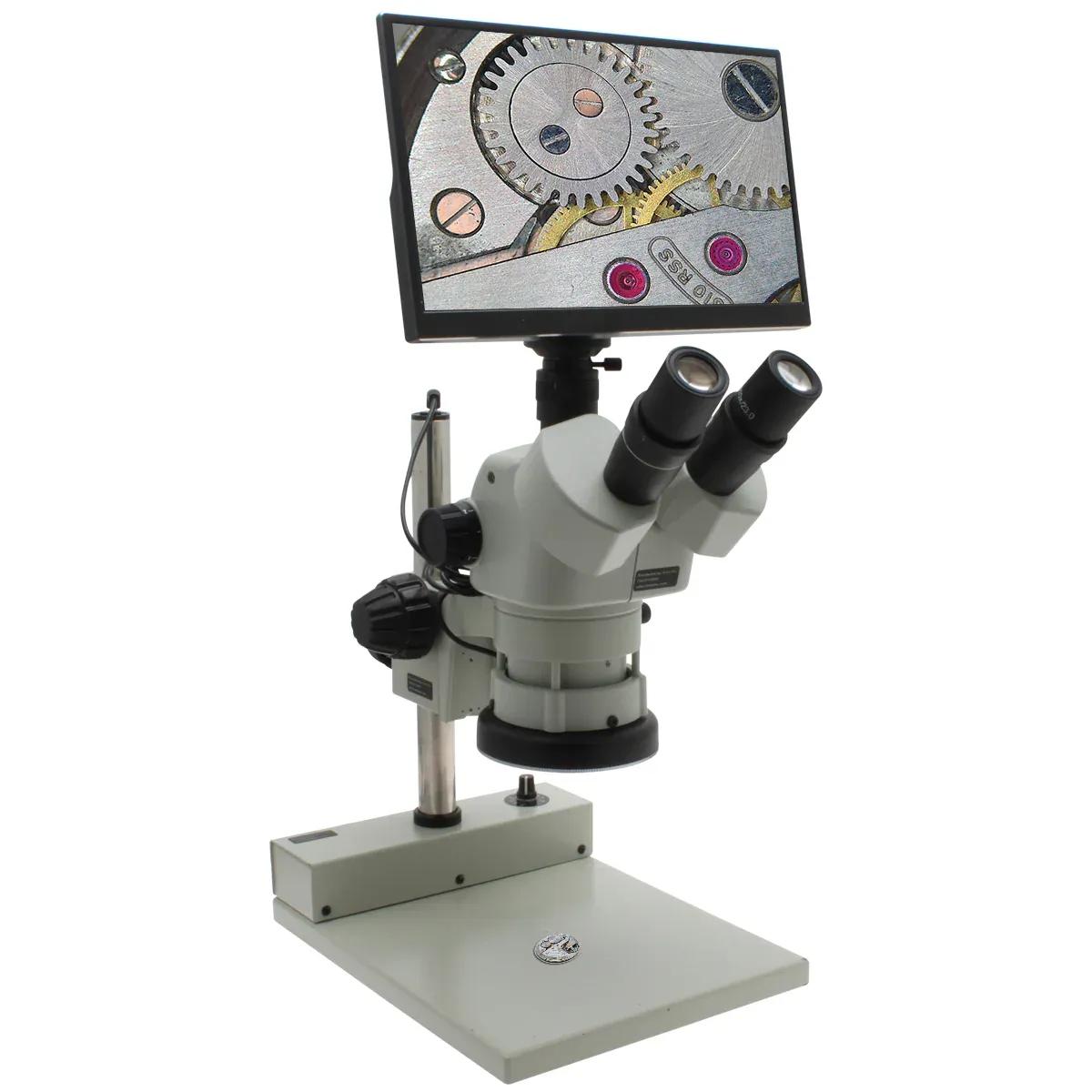

Aven's Mighty Cam Eidos is an integrated 11.6" HD monitor connected to a 5M C-Mount inspection camera. Designed for ergonomic inspection, the Eidos eases the eyestrain and body fatigue associated with frequent microscope use. SPZHT-135 microscope provides crisp clear 3D images and a wide field of view. 21x to 135x continuous zoom with 10x eyepieces, or 40x to 258x magnification when viewing on the Mighty Cam Eidos monitor.
Features
- Mighty Cam Eidos
- Convenient 2-in-one camera and monitor system
- Simple cable management
- Crisp HD image
- Built in MicroSD for instant image/video capture
- USB output for connection to your PC
- Wireless mouse for access to settings menus
- Grid overlays
- Compare mode, freeze mode and mirror mode
- Built-in measurement tools
- Alleviate the eye strain and neck fatigue associated with frequent microscope use
- SPZHT-135 Microscope
- Total Magnification of 21X to 135X at 3.3” (84mm) working distance, Max 180X with 20X eyepieces
- Click stop zoom adjustments for accurate, repeatable measurement
- Standard High Eye Point wide field 15x eyepieces at 45 degrees for comfortable viewing even for operators with eyeglasses
- Diopter adjustment on both eyepiece tubes
- Adjustable Interpupillary Distance of 1.96” (50mm) to 2.91” (74MM) accommodates any operator
- Multi coated optical components, free from chromatic and spherical aberration
- One touch fine focus adjust trinocular camera port for quick, easy camera focusing and parfocaling the scope
- PLED Stand
- Light weight compact stand
- Ideal for examining small parts
- Comes with rack & pinion focus mount with course and fine adjustment knobs
- Built in 60 LED ring light with dimmer control
- Low power consumption
Applications
- Precision assembly, quality control, production applications, electrical inspection, medical device inspection, aerospace, educational applications, R&D
General Information
| Item Name | Trinocular Microscope with Integrated Camera and Monitor |
| Trade Name | Aven Tools |
General Features
| Net Weight | 18 lbs |
| Type | Stereo Zoom Trinocular Microscope |
Design & Construction
| Lamp Type | LED |
Technical Details
| Effective Pixels | 1920 (H) x 1080 (V) |
| Frames Per Second | 60 FPS |
| Image Sensor | 2M CMOS Panasonic sensor |
| Interface Type | USB, HDMI |
| Lamp Included | Yes |
| Storage Media | USB storage |
| Video Format | 1080p Full HD |
Physical Properties
| Base Size | 220 mm x 284 mm (stand base dimensions) |
Supporting Information
| Use With | Precision assembly, quality control, medical inspection, aerospace, research |
