SKF TMMA Mechanical Puller, 13.5 t Capacity, MFR ID 85HFR60
- MFR #TMMA 120
- EIS #TMMA12004
$2,536.84 / Piece
Agotado
Cantidad mínima1QTY Increment1
more info

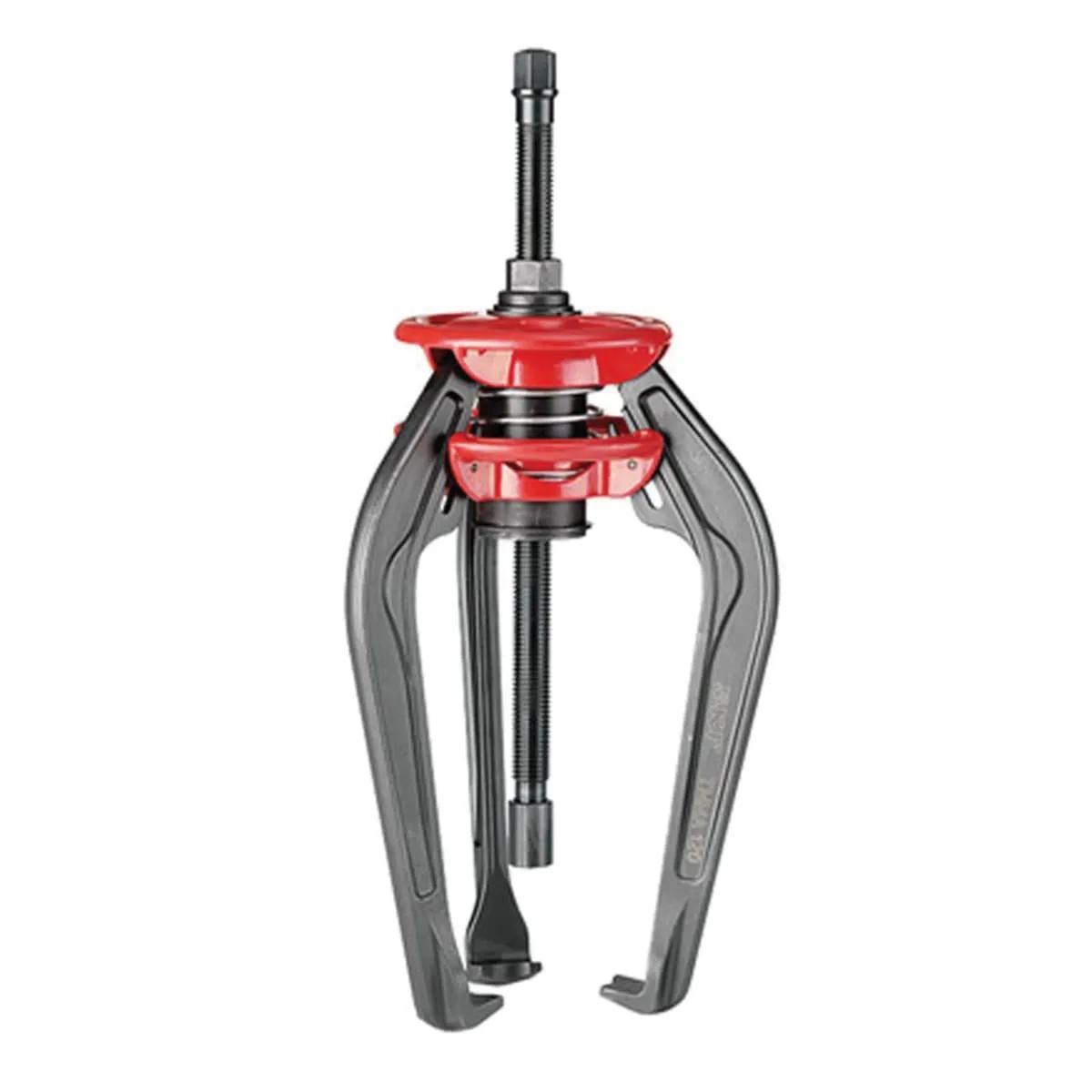

Equipped with spring-operated arms and a solid design, the patented SKF easy pull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement. The SKF easy pull is mechanical assisted versions, as well as complete kits with a tri-section pulling plate and a puller protection blanket. - SKF EasyPull TMMA Mechanical Puller.
Features
- Sturdy design allows dismounting of components even in the tightest application in a safe manner
- Self-locking arms help prevent the risk of puller slipping under load
- Double hexagonal heads allow easier application of withdrawal force
- Self-centering capability and nosepiece help to avoid damage to shaft
- Efficient use of time due to quick dismounting
- The unique red rings spring-operated opening mechanism allows the SKF easy pull to be placed behind the component with one movement of the hands
- Available in three sizes with a withdrawal force of 60, 80 or 120 kN (6.7, 9.0 or 13.5 US ton), enabling easy selection
- 9.8 - 3 Inch W of grip external, 9.8 Inch effective arm length, 120 kN maximum withdrawal force, claw dimension: 0.9 Inch Length x 1.6 Inch Width x 0.54 Inch Height
General Information
| Item Name | Mechanical Puller |
| Series | TMMA-M |
General Features
| Net Weight | 23.4 lb |
Design & Construction
| Capacity | 13.5 t |
