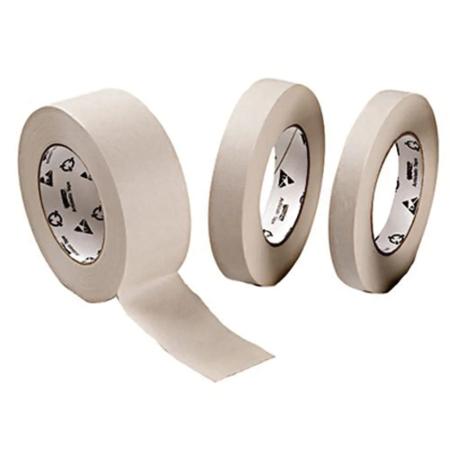

Desco Wescorp ESD High Temperature Crepe Paper Masking Tape, MFR ID 8126
- MFR #8126
- EIS #PH22-8126
$4.06 - $7.53
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.5 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll | |
| 1 Inch | $ / Roll |
The anti-static ESD-Safe high temperature masking tape that is waterproof and does tribocharge, but has minimal charge retention. Wescorp tape does tribocharge, but has minimal charge retention, making it safe to use around most ESD sensitive items. - Does tribocharge, but has minimal charge retention. May be exposed to high temperatures for an extended period of time without leaving residue when removed. Lead-free. Waterproof, ESD, non-staining adhesive.
Features
- pH neutral
- Excellent conformability
- Non-corrosive
- Non-toxic
- Surface resistance 1 x 10^8 to < 1 x 10^12 ohms
Applications
- For Masking PCB Gold Features for Wave Soldering
General Information
| Item Name | Masking Tape |
| Trade Name | Wescorp |
| Series | 8126 |
General Features
| Type | Antistatic, ESD, High Temperature |
| Shelf Life | 12 Months |
| Storage Temperature | 68 °F |
Design & Construction
| Adhesive Type | Natural Rubber |
| Backing Material | Crepe Paper |
| Color | Off-White |
| Shape | Roll |
Performance Details
| Adhesive Strength | 35 oz/sq-Inch |
| Tensile Strength | 22 lb/Inch |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 8% |
| Length | 60 Yard |
| Thickness | 7 mil |
Environmental Condition
| Temperature Rating | 135 °C |
