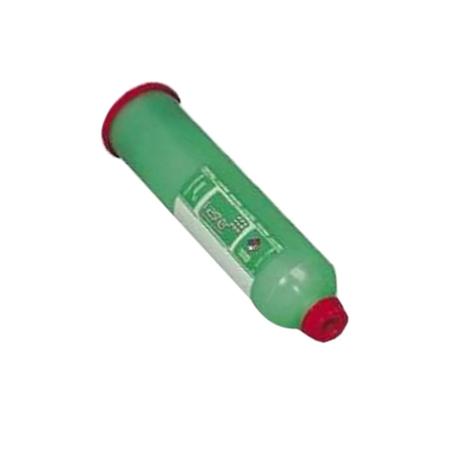

Kester EM828-SAC305-89.5 Lead-Free Solder Paste
- MFR #EM828-SAC305-89.5
- EIS #PH19-EM828-SAC305-89.5
- Series #EM828-SAC305-89.5
$163.02
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 500 g | Jar | Type 3 | $ / Piece | |
 | 500 g | Cartridge | Type 3 | $ / Cartridge |
The Kester EM828 is a lead-free, water soluble solder paste formulated specifically to reduce voiding behavior that is common with lead-free solder paste products. EM828 represents a break-through in water soluble solder paste technology with the combination of low voiding, excellent wetting behavior and ease of cleaning. - Additionally, EM828 is extremely stable in the stencil printing process, regardless of print speed, idle time and throughput. EM828 provides tremendous wetting to a wide variety of board and component finishes in order to simplify your transition to lead-free processes.
Features
- Capable of breaks in printing of up to 60 min without any kneading
- Contains halogen
- Excellent wetting on a variety of metallizations
- Long stencil and tack life (process dependent)
- Low voiding underneath area array components
- Print speed up to 150 mm/sec (6 Inch/sec)
- Residues easily removed with hot DI water
- Tremendous brick definition and slump resistance for reduction of bridging defects
- Metals percentage of 89.5%
- Melting range of 217 to 218 °C
- Temperature rating of 21 to 25 °C
Applications
- For Stencil Printing Applications
General Information
| Item Name | Lead-Free Solder Paste |
| Series | EM828-SAC305-89.5 |
General Features
| Type | Lead-Free |
| Shelf Life | 6 Months |
| Storage Temperature | 0 to 10 °C |
Design & Construction
| Color | Silver Gray |
| Flux Type | Organic Activated or Water Soluble |
| Form | Paste |
Chemical Properties
| Flux Formula | EM828 |
| Lead Free | Yes |
| Mesh Size | -325/+500 |
Physical Properties
| Alloy | Sn96.5 Ag3.0 Cu0.5 (SAC305) |
| Odor/Scent | Mild |
Environmental Condition
| Melting Range | 217 °C |
Supporting Information
| Applicable Materials | Stainless Steel, Molybdenum, Nickel Plated or Brass |
| Flux Designator | ORH1 |
| RoHS Info | 2011/65/EU Directive |
Documents
No Documents Found
