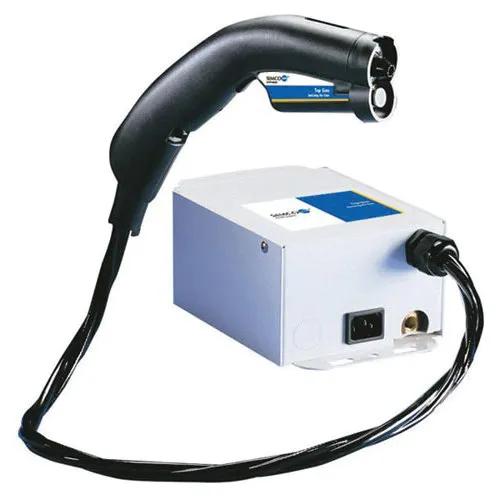

Simco Top Gun Static Dissipative Polycarbonate Ionizing Air Gun, MFR ID 4005
- MFR #4005
- EIS #PH13-4005
- Series #4005
$2,075.56 - $2,386.78
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | Ionizing Air Gun | $ / each | |
 | Static Neutralizing Blow-off Gun | $ / each |
Balanced to 0 +/- 15V, the Top Gun features high blow-off force and low air consumption providing high efficiency cleaning and maximum static charge decay. A filter at the exit of the gun ensures that the air is clean. - Simco-Ion's top gun ionizing air gun is a high-performance ionizing air gun designed for a wide variety of electronic manufacturing, medical and assembly applications.
Features
- Lightweight, ergonomic design
- Flow control valve for adjustable airflow
- Electrically balanced ion output
- Integrated, replaceable filter-nozzle
- Ionization indicator light
Applications
- For Safety, Industrial
Warranty
24 months
General Information
| Item Name | Ionizing Air Gun |
| Trade Name | Top Gun™ |
| Series | 4005 |
General Features
| Standards | UL Listed, CE Certified |
Design & Construction
| Material | Static Dissipative Polycarbonate, ABS Blend Gun, Static Dissipative Polyurethane Cable |
Technical Details
| Airflow | 2.4 scfm at 30 psi, 4.6 scfm at 60 psi, 7.4 scfm at 100 psi |
| Humidity | 30 - 60% |
| Pressure Range | 5 - 100 psi |
Electrical Properties
| Amperage Rating | 0.2 A |
| Frequency Rating | 60 Hz |
| Voltage Rating | 120VAC |
Physical Properties
| Length | 6.5 Inch |
| Height | 3.375 Inch |
| Width | 5.25 Inch |
Documents
No Documents Found
