$29.10 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Products You May Also Like

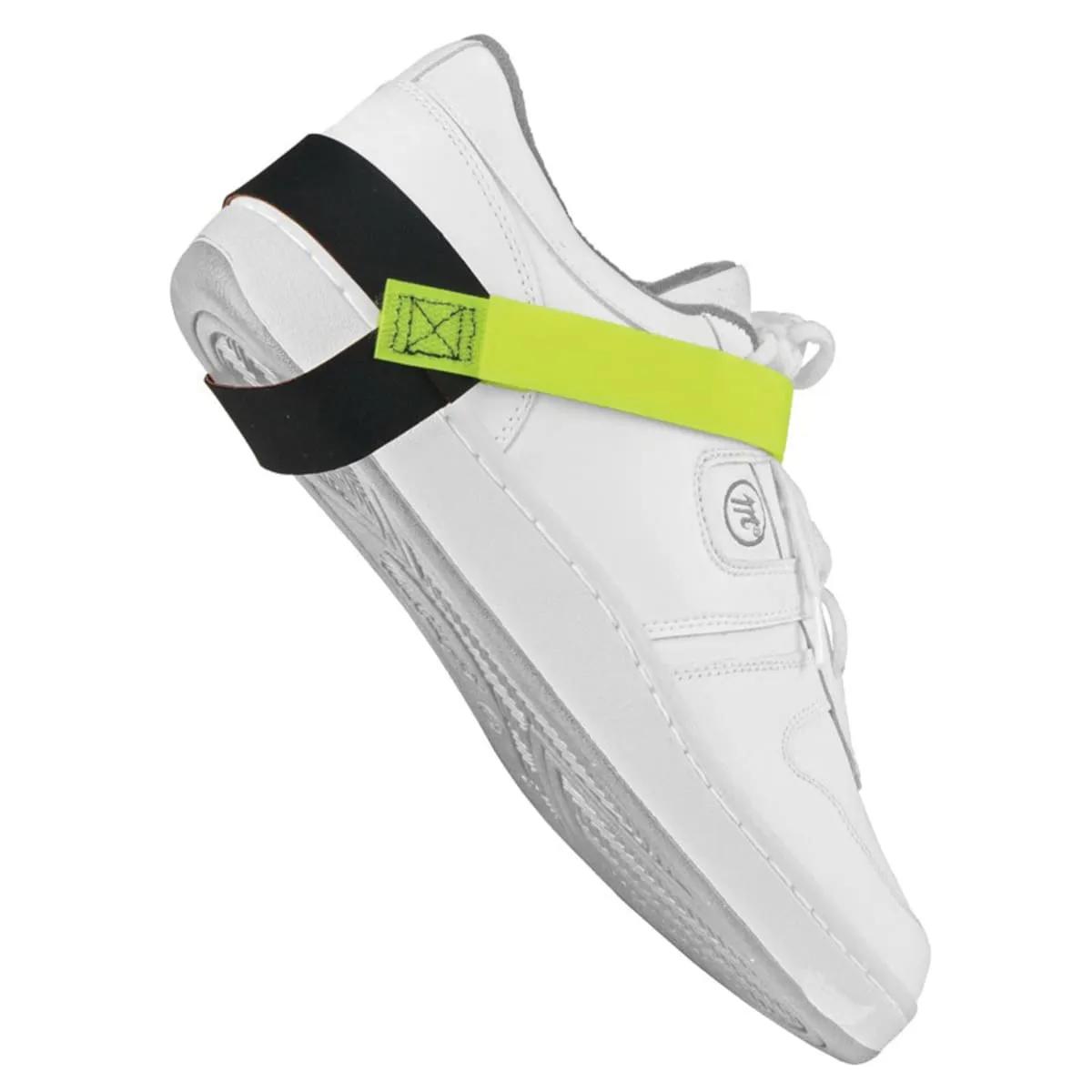

The 2044 economy heel grounder assembly is a cup-style heel grounder with a high visibility yellow glow strap that helps facility supervisors effectively manage their static control program. This economy heel grounder allows supervisors to see at a single glance whether employees are properly wearing their heel grounding assemblies, and to help ensure their company is protected against static damage. Dependable and cost-efficient, the 2044 heel grounder effectively grounds mobile personnel when they are in contact with conductive and dissipative flooring, and should be an integral part of any static control system in the workplace. - Exterior layer made of conductive rubber to ground the operator via ESD flooring. Interior layer made of non-marring rubber that will not blemish shoes. 1 megohm current limiting resistor. High visibility yellow glow fastening system, adjustable sizing material expands to fit most shoe sizes comfortably. 24 Inch conductive 8-strand nylon polyester grounding tab, additional conductive material provides reliable connection with operator's sweat-layer. Elastic material for comfort.
Features
- 1 x 10^6 - < 1 x 10^8 ohm resistance to ground
- 24 Inch ribbon length
General Information
| Item Name | Heel Grounder |
| Trade Name | SCS |
General Features
| Standards | UL Listed, ANSI/ESD S20.20, ESD SP9.2, ESD TR53 |
| Type | Economy |
Design & Construction
| Closure Type | Adjustable Hook and Loop |
| Color | Yellow |
Electrical Properties
| Resistor | 1 Mohm |
Physical Properties
| Length | 24 Inch |
