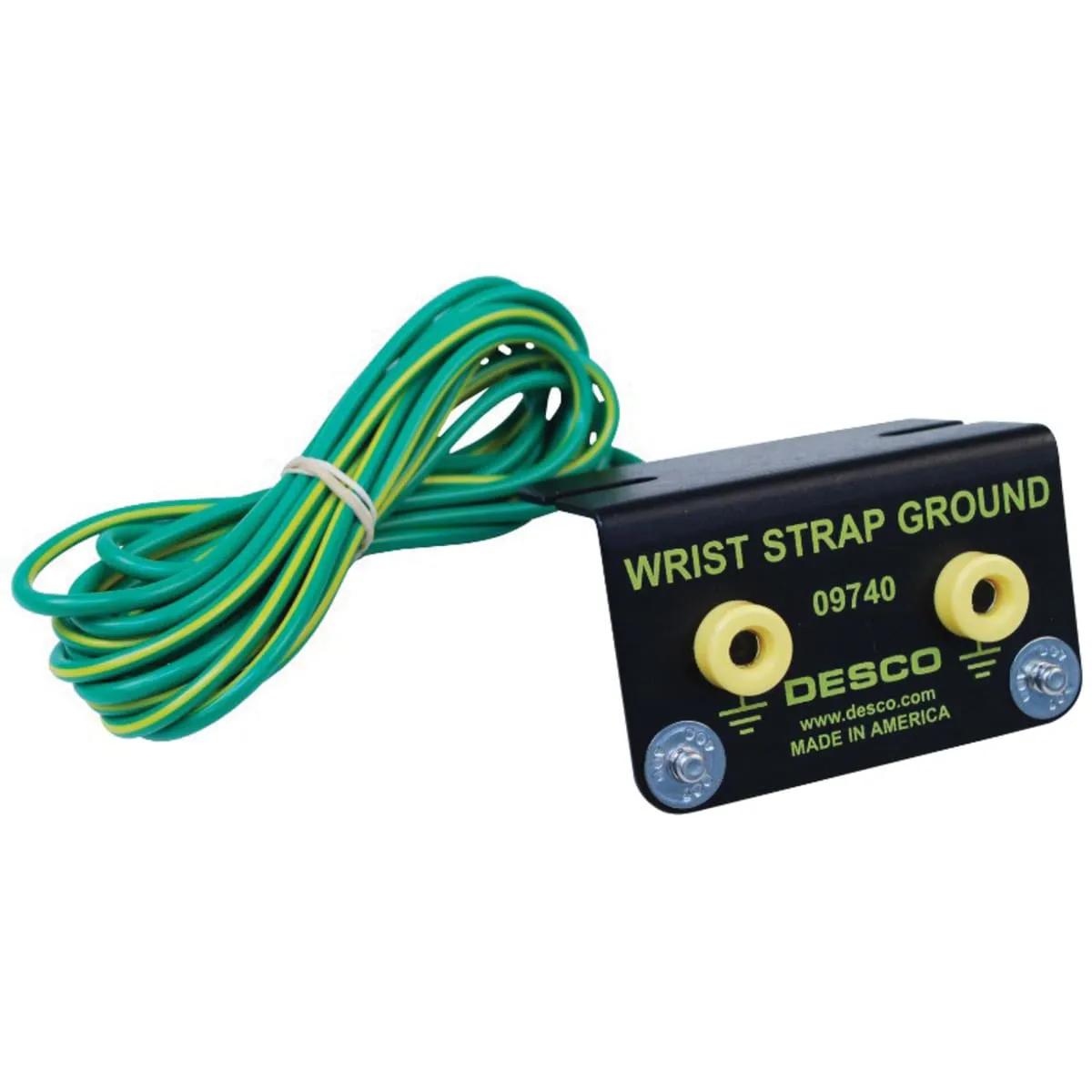

Desco 09740 Dual Wrist Bench Mount Grounding System, 10' L x 4 mm Snap
MFR #:09740
EIS #:09740-DES
MFR #:09740
EIS #:09740-DES
In Stock
Min Qty:1
|Qty Increment:1
Mounts under the front edge of a workstation and allows two operators to ground their wrist straps. (2) 4 mm parking studs provided holding of wrist strap cord when the operator disconnects to leave workstation. - 2 banana jacks - Provides 2 grounding points for wrist straps or carts. Ring terminal at end of ground cord - allows easy attachment to electrical ground. Mounts under the front edge of a workstation.
$19.00 / each
Min Qty:1
|Qty Increment:1
Mounts under the front edge of a workstation and allows two operators to ground their wrist straps. (2) 4 mm parking studs provided holding of wrist strap cord when the operator disconnects to leave workstation. - 2 banana jacks - Provides 2 grounding points for wrist straps or carts. Ring terminal at end of ground cord - allows easy attachment to electrical ground. Mounts under the front edge of a workstation.
- Attributes
- Features
Attributes
General Information
Item NameGrounding System
Trade NameDesco
General Features
StandardsANSI/ESD 56.1
TypeDual Wrist, Bench Mount, Snap-One Cord
Physical Properties
Size10 ft L x 4 mm Snap
Supporting Information
For Use WithWrist Strap
Includes(2) 4 mm Stud, (2) Banana Jack, 10 ft Ground Wire, Aluminum Angle Bracket Frame, Ring Terminal
Features
- (2) parking studs - helps prevent damage to wrist strap cord when not in use
- Extra ring terminal included - for customizing cord length
- No resistor is recommended, but with resistor is acceptable
