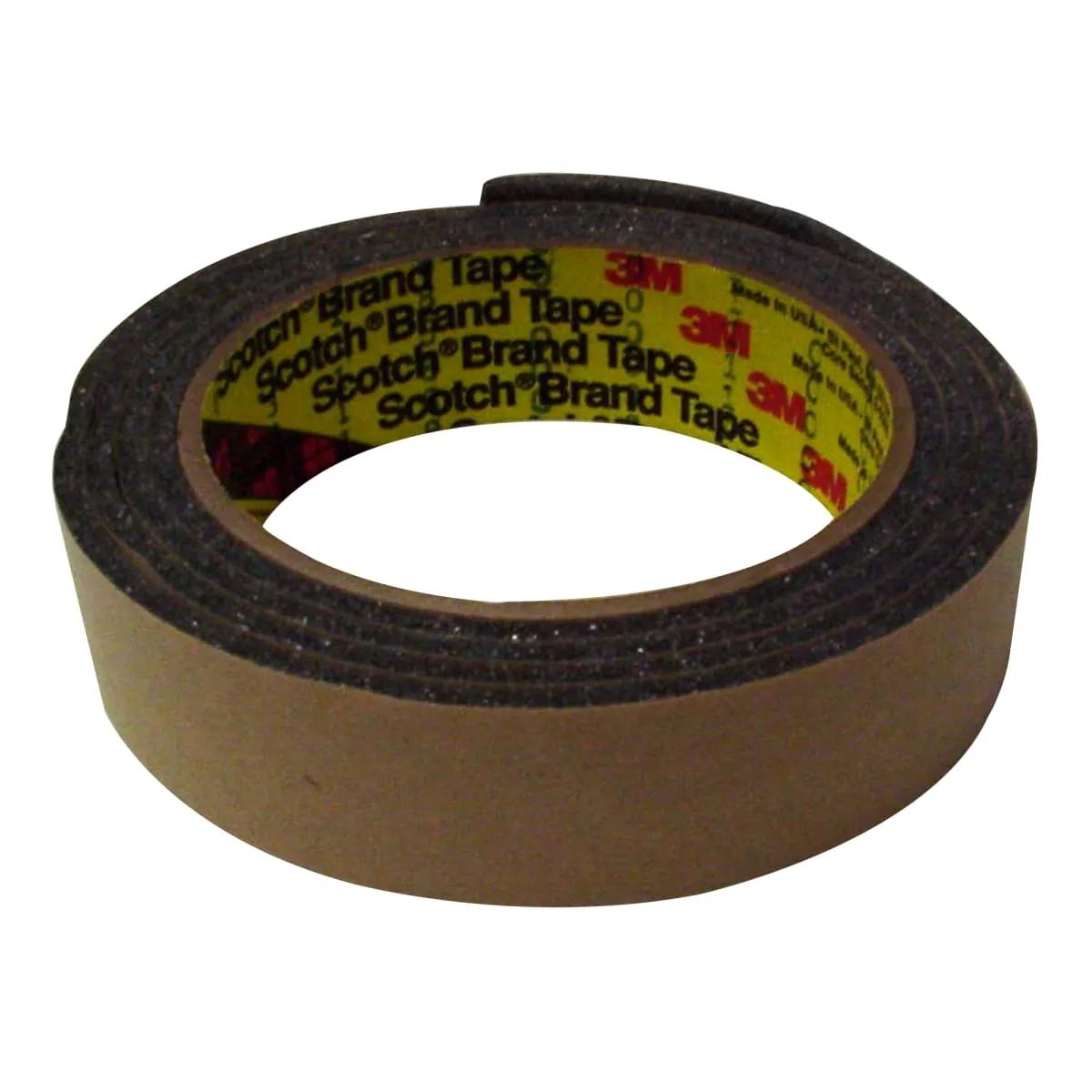

3M 4314 Single Coated Urethane Foam Tape
- MFR #4314
- EIS #PH22-4314
$30.86 - $75.00
Refine your product below or compare all choices in the
Cantidad mínima1QTY Increment1
more info
Paquete--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 1 Inch | $ / Roll Paquete: 9/Case more info | |
| 0.25 Inch | $ / Roll Paquete: 36/Case more info | |
 | 0.75 Inch | $ / Roll Paquete: 12/Case |
3M urethane foam tape 4314 is comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. This tape will adhere to a variety of substrates and can be used in numerous mounting applications to dampen sound and create a clean and durable product. - It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. The adhesive is protected by a silicone treated paper liner.
Features
- Charcoal gray, 1/8 Inch soft conformable, low density, open cell foam design helps seal out air, dust and light when compressed
- Excellent cushioning characteristics and high absorbency
- Dampens sounds and absorbs vibration when used in electronic applications
- Offers high initial quick-stick to multiple substrates
- Provides excellent shear strength and high temperature performance
- Temperature rating of 0 to 150 °F
Applications
- For Transportation, Specialty Vehicle, Construction, General Industrial, Appliance
General Information
| Item Name | Foam Tape |
| Series | 4314 |
General Features
| Type | Single Coated |
| Shelf Life | 18 Months |
| Storage Temperature | 60 to 80 °F |
Design & Construction
| Adhesive Type | Acrylic |
| Applicable Material | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
| Backing Material | Urethane Foam |
| Color | Charcoal Gray/Tan Liner |
| Liner Material | Paper |
Performance Details
| Tensile Strength | 25 psi |
Electrical Properties
| Dielectric Strength | 40 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 125% |
| Width | 0.250 Inch |
| Length | 18 Yard |
| Thickness | 250 mil |
Environmental Condition
| Resists | Dust, Light, Chemical |
| Temperature Rating | 150 °F |
Supporting Information
| Applicable Materials | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
