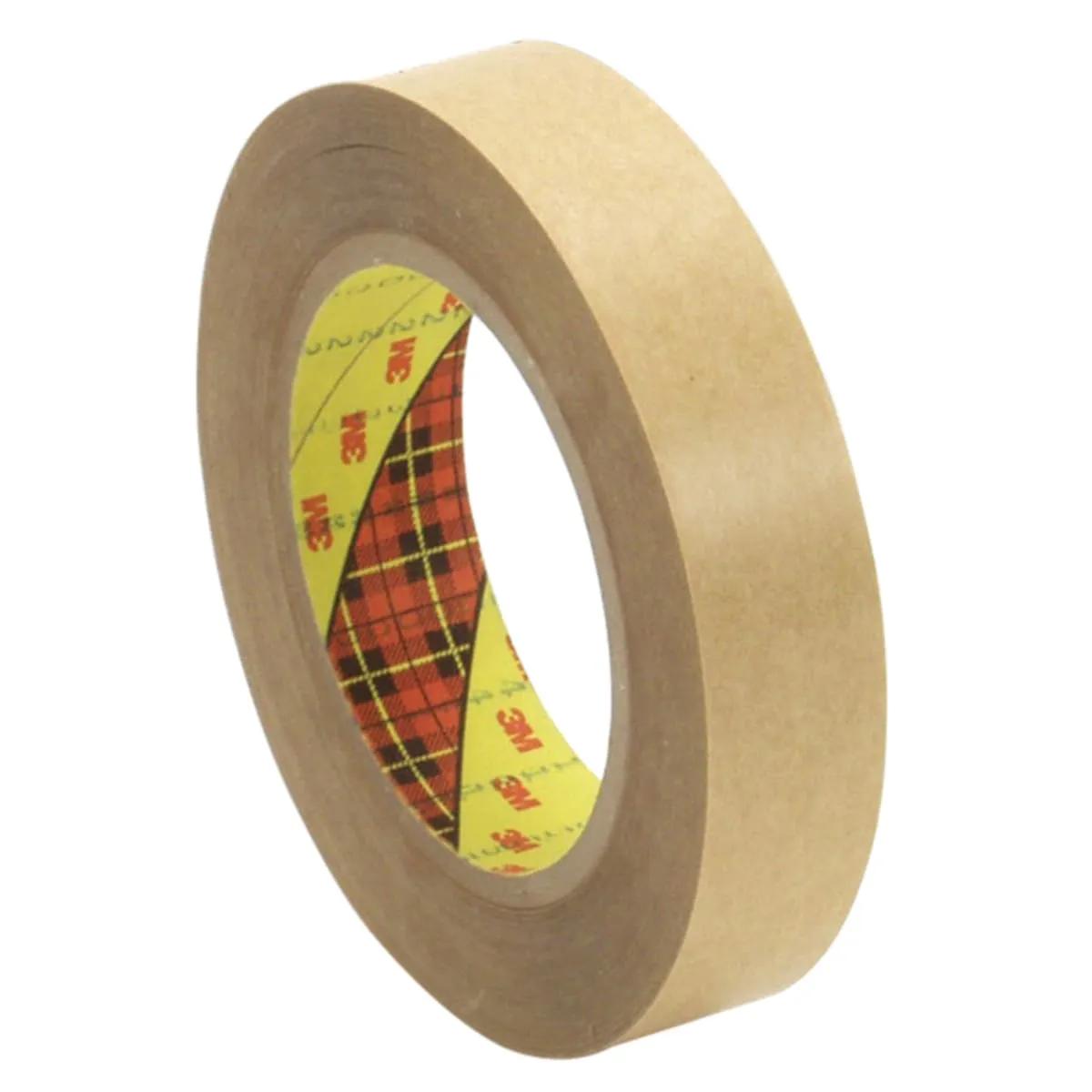

3M 415 Double-Coated Polyester Film Tape
- MFR #415
- EIS #PH22-415
$59.54 - $216.08
Refine your product below or compare all choices in the
Cantidad mínima1QTY Increment1
more info
Paquete--Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 3 Inch | $ / Roll Paquete: 12/Case more info | |
 | 1 Inch | $ / Roll Paquete: 36/Case | |
 | 0.5 Inch | $ / Roll Paquete: 72/Case more info | |
 | 4 Inch | $ / Roll Paquete: 8/Case more info | |
 | 0.75 Inch | $ / Roll Paquete: 48 Roll/Case | |
 | 0.25 Inch | $ / Roll Paquete: 144 Roll/Case more info |
3M 415 clear bonding tape comes in acrylic adhesive. The variances in thickness often make an important difference in proper performance. Products in this category feature a liner on the back which you peel away from to expose the adhesive material before applying to the substrate. The liner material for this product is composed of paper. - Good adhesion to a wide variety of materials such as HSE high surface energy, LSE low surface energy and metals. Good temperature and humidity resistance. High performance splicing in printing applications.
Features
- Excellent UV resistance
- Good on films and foils
- Offers a balance of initial adhesion and good holding power
- Rotary letterpress
- Adhesive thickness of 1.5 Mil (Back-Side), 1.5 Mil (Face-Side)
- Temperature rating of -40 to 180 °F
Applications
- For High-Speed Flying Splices and Zero Speed Splices on Most Grades of Paper Such as Newsprint, Clay Coated and Corrugated Stock
General Information
| Item Name | Film Tape |
| Series | 415 |
General Features
| Type | Double-Coated |
| Shelf Life | 24 Months |
| Storage Temperature | 21 °C |
Design & Construction
| Adhesive Type | Acrylic |
| Carrier Material | Polyester |
| Color | Clear/Tan Liner |
| Liner Material | Densified Kraft Paper |
Performance Details
| Adhesive Strength | 25 oz/Inch |
| Shear Strength | 5 psi |
Physical Properties
| Adhesive Thickness | 1.5 mil |
| Carrier Thickness | 1 mil |
| Core Size | 3 Inch |
| Width | 0.250 Inch |
| Length | 36 Yard |
| Liner Thickness | 4 mil |
| Thickness | 4 Mil |
Environmental Condition
| Resists | Chemical, Humidity, Moisture, Plasticizer, Solvent, UV |
| Temperature Rating | 180 °F |
Documentos
No Documents Found
