Transforming Technologies Warmbier 7100.SRM200.K Pocket Digital Surface Resistance Meter
- MFR #:7100.SRM200.K
- EIS #:7100.SRM200.K
- MFR #:7100.SRM200.K
- EIS #:7100.SRM200.K
Available to Order
Min Qty:1
|Qty Increment:1

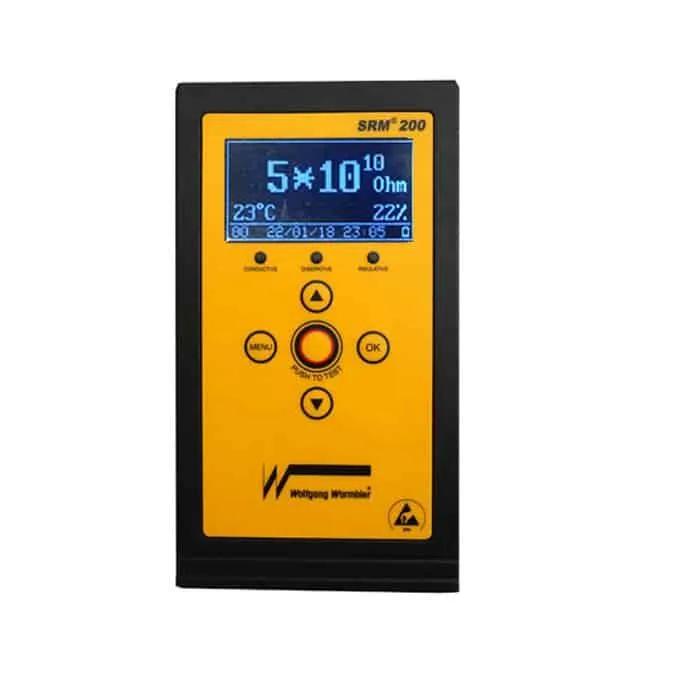

Warmbier 7100.SRM200.K Pocket Digital Surface Resistance Meter is a very useful instrument for checking surface resistance and resistance to ground. The instrument can be used on different work surfaces, floors, chairs, carts, clothing and packaging materials, etc. The measured value is displayed with LED display that indicates whether the value is conductive, dissipative or insulating. All readings can be stored in the instrument and can by using the included software easily transferred to PC via USB cable.
The measurements can be performed either with the built-in measurement electrodes (fitted with conductive rubber for good conductivity) on the underside of the instrument or preferably together with two 5lb disk measuring electrodes SR0065 or the two point probe model number 7220.410. Performed measurements with external measuring electrode met the requirements of ANSI ESD S20.20 and IEC61340-5-1. SRM 2000 also has integrated temperature and humidity sensor.
$1,585.90 / Piece
Min Qty:1
|Qty Increment:1
Warmbier 7100.SRM200.K Pocket Digital Surface Resistance Meter is a very useful instrument for checking surface resistance and resistance to ground. The instrument can be used on different work surfaces, floors, chairs, carts, clothing and packaging materials, etc. The measured value is displayed with LED display that indicates whether the value is conductive, dissipative or insulating. All readings can be stored in the instrument and can by using the included software easily transferred to PC via USB cable.
The measurements can be performed either with the built-in measurement electrodes (fitted with conductive rubber for good conductivity) on the underside of the instrument or preferably together with two 5lb disk measuring electrodes SR0065 or the two point probe model number 7220.410. Performed measurements with external measuring electrode met the requirements of ANSI ESD S20.20 and IEC61340-5-1. SRM 2000 also has integrated temperature and humidity sensor.
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameSurface Resistance Meter
Series7100
Features
- ESD TESTING: Perform resistance measurements to determine if a surface is dissipative, conductive, or insulative
- RANGE: Test range: 10^3-10^12
- DATA LOGGING: Stores test data (up to 9801 measurement values) in it's internal memory that can be accessed via USB
- SOFTWARE: Quickly build test reports with the included software or export the tests via CSV file
- ADDITIONAL TESTING: Measures temperature and humidity which is important for understanding resistance measurements.
- AUTO-ADJUSTING: The SRM200 can test with 10V or 100V and automatically adjusts based on the material tested
- PROBE OPTIONS: Uses built-in parallel resistivity probes and can be used with 5lb disc probes, handheld probe, two point probe or concentric ring probes.
- INCLUDED: Carrying case & calibration certificate included.
