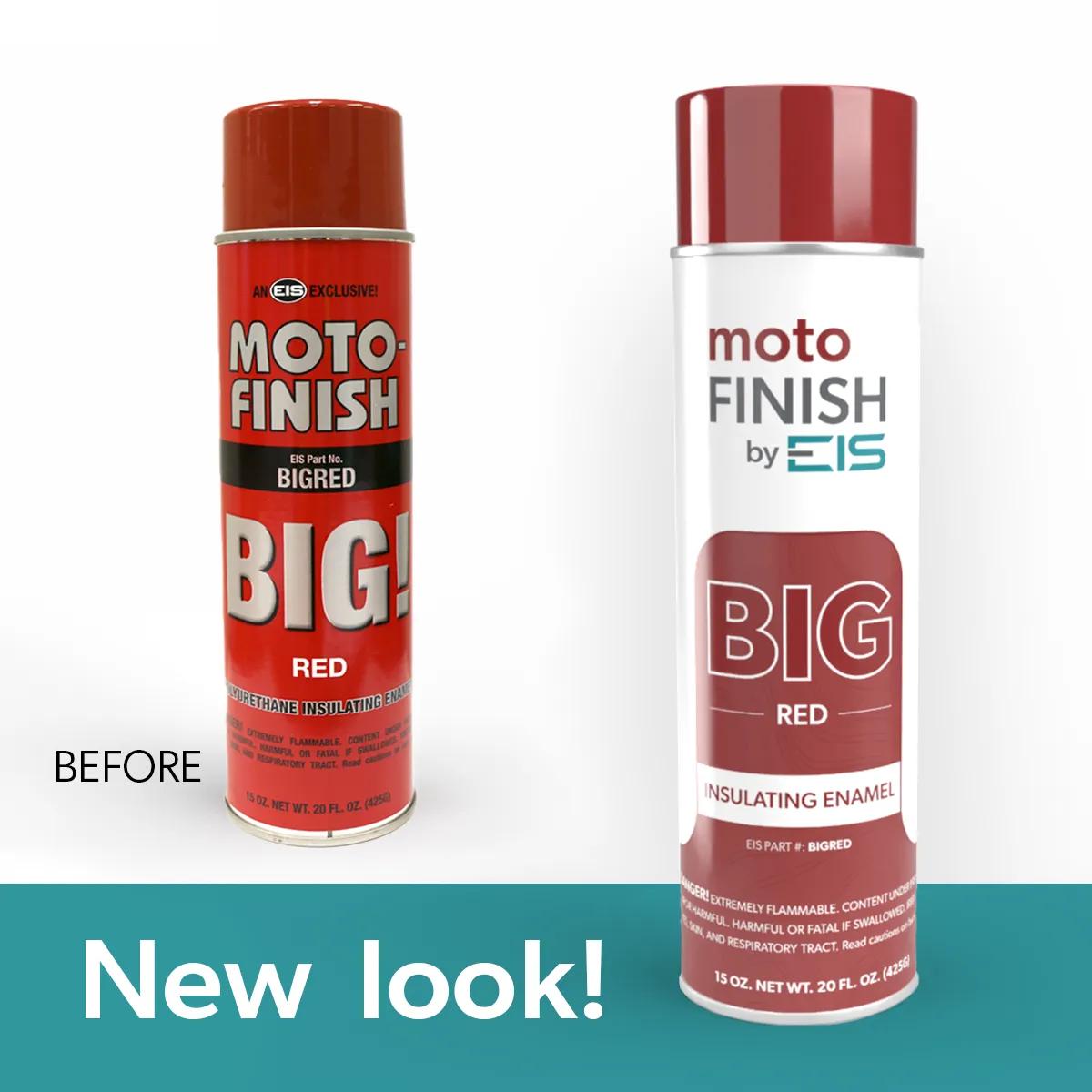

motoFINISH by EIS Alkyd Insulating Enamel Paint, 20 oz Can, Red, MFR ID BIGRED
- MFR #10-7532
- EIS #BIGRED
$11.68 / Can
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
motoFINISH by EIS Alkyd Insulating Enamel Paint, 20 oz Can, Red
Applications
For End windings, small motor stators, field coils, bus bars,motor windings, armatures, industrial batteries, connectors, commutator ends, field coils, transformers, stator windings, rings and frames, switch board parts
General Information
| Item Name | Enamel Paint |
General Features
| Type | Insulating |
| Standards | OSHA 29 CFR 1910.1200 Certified |
| Shelf Life | 24 Months |
Design & Construction
| Base Type | Xylene |
| Color | Red |
| Cure Type | Room |
| Form | Liquid |
| Resin Type | Alkyd |
Technical Details
| Flash Point | -40 °C |
Chemical Properties
| Specific Gravity | 0.78 |
| Vapour Density | 1.56 |
| Vapour Pressure | 95 x 10^4 Pa |
| Viscosity | < 20 sq-mm/sec at 40 °C |
Electrical Properties
| Dielectric Strength | 2200 V/mil |
Physical Properties
| Container Size | 20 oz |
| Container Type | Can |
| Odor/Scent | Hydrocarbon-Like |
Supporting Information
| Applicable Materials | Copper, Steel, Metal |
| Application Method | Spray |
