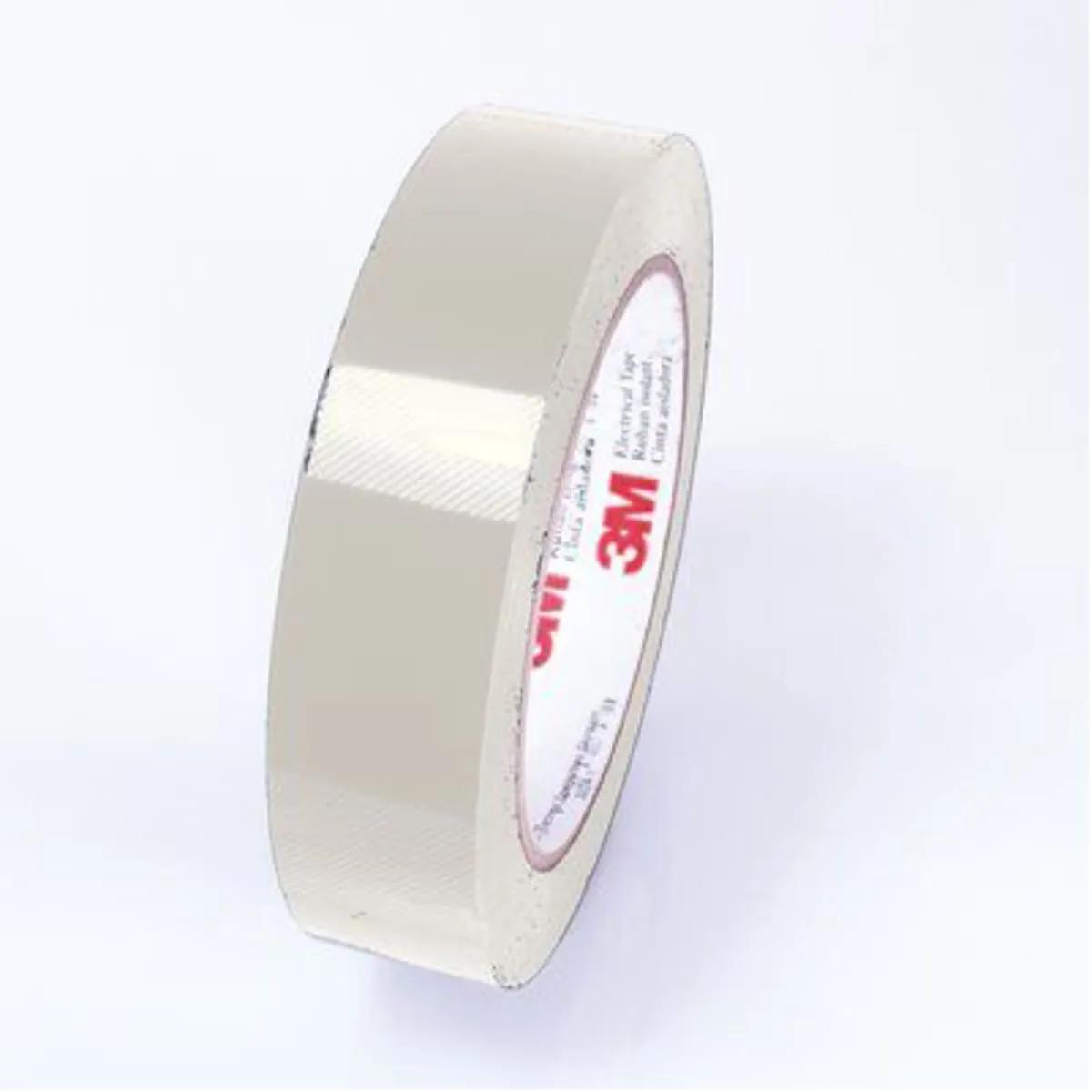

3M 5 Polyester Electrical Tape, 1/2" x 72 yd x 2.5 Mil, Translucent, MFR ID 7000132944
- MFR #7000132944
- EIS #3M5X.5
- UPC #00051138361075
$19.28 / Roll
Available to Order
Min QTY1QTY Increment1
more info
3M™ Polyester Film Electrical Tape 5 has an acrylic adhesive that offers optimized adherence. This transparent tape resists oil, chemicals, solvents, moisture, abrasion and cut through. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
3M™ Polyester Film Electrical Tape 5 is a general purpose, electrical tape with a polyester film backing. This single coated tape is designed for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Applications
- For Insulating Applications
General Information
| Item Name | Electrical Tape |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester |
| Color | Translucent |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 25 lb/Inch |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 100% |
| Length | 72 Yard |
| Thickness | 2.5 mil |
| Width | 0.5 Inch |
Environmental Condition
| Resists | Chemical, Solvent, Moisture, Abrasion |
| Temperature Rating | 130 °C |
