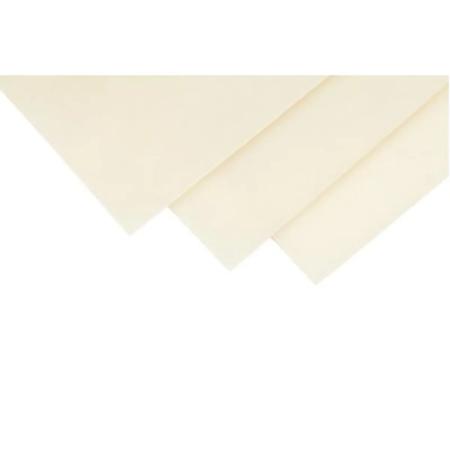

3M TufQuin™ TF Natural Duplex Hybrid Electrical Insulation Paper Sheet, 7 Mil x 36" x 36", MFR ID 7100178392
- EIS #TUFQUINTF5202
- Series #TufQuin Hybrid™ TF-SHT
- UPC #50051138983388
$12.39 / Sheet
Available to Order
Min QTY1QTY Increment1more info
It is suitable for Class 200(N) electrical insulation systems and 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant.
3M™ TufQuin™ TF Inorganic Hybrid Insulating Paper-Polyester Laminate. This is a 2-ply composite of TufQuin bonded on one side with PET film for high-temperature electrical insulation applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. Applications include slot cell, phase, and wedge insulation in motors and generators, and ground and layer insulation in dry-type transformers. TF laminates are flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption.
Features
- TFT laminates are flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption
- The inorganic content in the TufQuin™ paper offers high thermal conductivity, long-term voltage endurance, and resistance to partial discharge (corona) that helps TFT laminates withstand damage from voltage spikes
- The polyester film reinforcement provides stiffness, high mechanical strength, and resistance to tear
- TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics
- 5-2 laminate construction
Applications
- Applications Include Slot Cell, Phase, and Wedge Insulation in Motors and Generators, and Ground and Layer Insulation in Dry-Type Transformers. TF Laminates are Well-Suited for Automatic Insertion Applications, as Well as Heavy-Duty Winding Applications
General Information
| Item Name | Electrical Insulation Paper |
| Trade Name | TufQuin™ |
| Series | TufQuin Hybrid™ TF-SHT |
General Features
| Type | Duplex, Hybrid |
Design & Construction
| Adhesive | No |
| Color | Natural |
Physical Properties
| Length | 36 Inch |
| Thickness | 7 mil |
| Width | 36 Inch |
Environmental Condition
| Temperature Rating | 200 °C |
