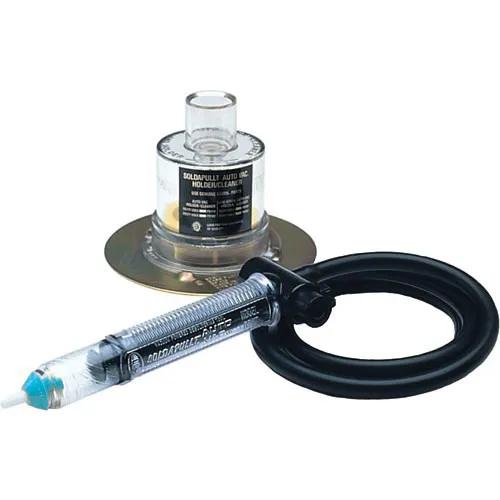

Edsyn DS117 Auto-Vac® Desoldering Tool, 0.136" ID x 0.53" L Tip
- EIS #DS117-EDS
$255.04 / each
Available to Order
Min QTY1QTY Increment1
more info
Auto-vac desoldering tool with PH177 power head and PH178 holder requires an external vacuum source. This can be either an in-house vacuum system or air driven venturi-type vacuum source. - The DS117 is a heavy-duty unit with a large clear plastic chamber to reduce clogging, hold more debris and visually determine when maintenance and cleaning is required. Power piston in holder cleans the tip whenever Auto-Vac trigger is depressed.
Features
- Features a self cleaning automatic vacuum desoldering system that runs on continuous suction when trigger is pressed
- Convenient Auto-Vac trigger on hand piece for quick action precise vacuum control
- Handle pulls off easily for easy cleaning and maintenance
- Includes PH177 power head, PH178 power head holder and OA193 o-ring set of 5 (for PH177 and PH178)
Applications
- For Heavy Duty Work, Large Wiring, Terminals, IC's and Connectors
General Information
| Item Name | Desoldering Tool |
| Trade Name | Auto-Vac® |
Design & Construction
| Body Material | Plastic |
| ESD Safe | No |
| Tip Size | 0.136 Inch ID x 0.53 Inch L |
| Vacuum Pump Type | Venturi |
Physical Properties
| Weight | 1 lb |
Supporting Information
| Tip Included | SRT12 Standard Tip |
Documents
No Documents Found
