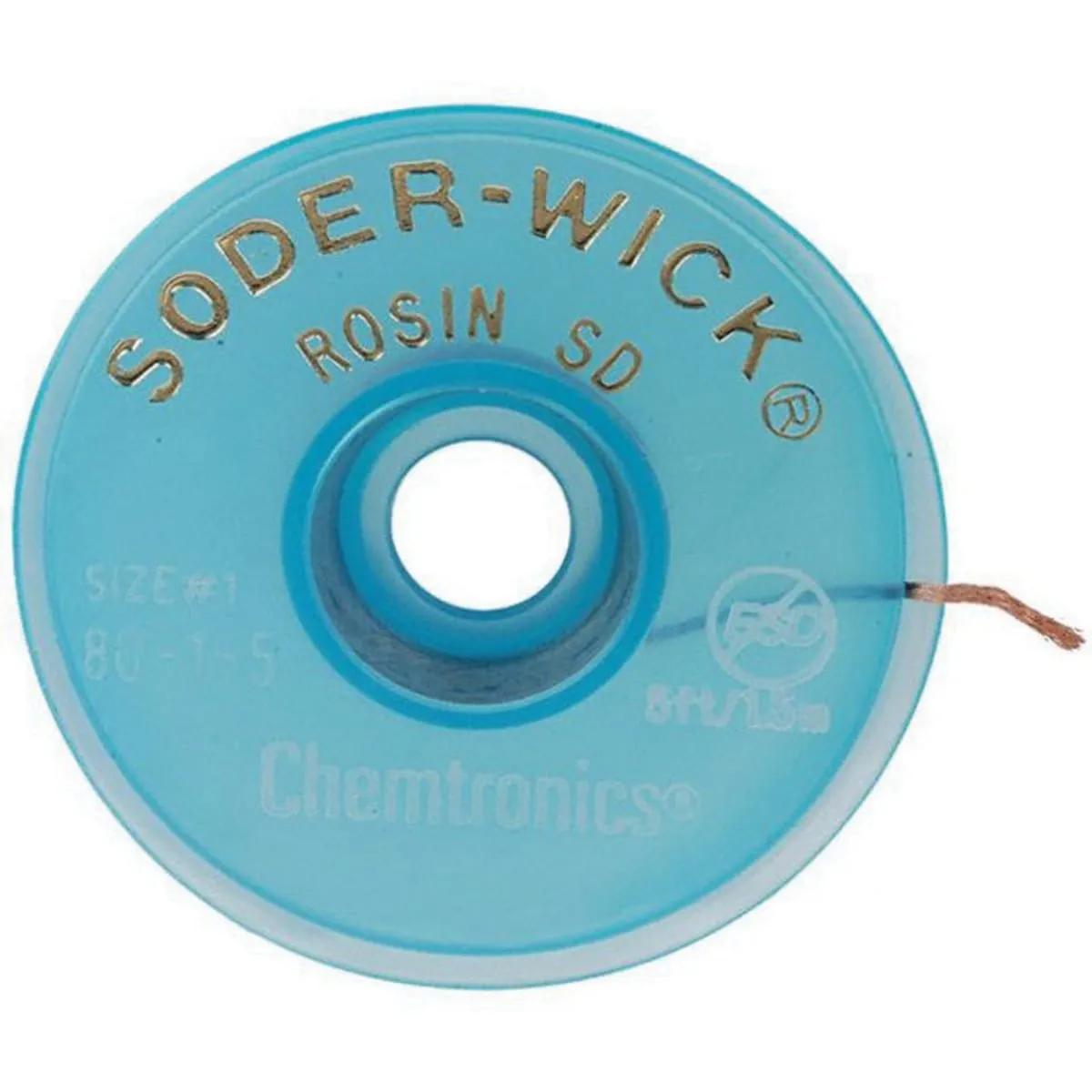

ITW Chemtronics 80-1-5 Soder-Wick® Rosin Activated Desoldering Braid, 0.030" x 5', White, 25 Bobbins/Performance Pak®
- MFR #80-1-5
- EIS #80-1-5
- Series #80
- UPC #032599032902
$6.22 / each
Pack: 25 Bobbin/Performance Pak�
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack25 Bobbin/Performance Pak�| Stock Status | |||||
|---|---|---|---|---|---|
 | 10 ft | 0.03 Inch | White | $ / each Pack: 25 Bobbin/Performance Pak� | |
 | 5 ft | 0.03 Inch | White | $ / each Pack: 25 Bobbin/Performance Pak� | |
 | 10 ft | 0.06 Inch | Yellow | $ / each Pack: 25 Bobbin/Performance Pak� | |
 | 5 ft | 0.06 Inch | Yellow | $ / each Pack: 25 Bobbin/Performance Pak� more info | |
 | 5 ft | 0.08 Inch | Green | $ / each Pack: 25 Bobbin/Performance Pak� more info | |
 | 10 ft | 0.11 Inch | Blue | $ / each Pack: 25 Bobbin/Performance Pak� |
Soder-Wick 80 offers the state of the art in desoldering technology. Soder-Wick is designed for today's heat sensitive electronic components using lighter mass, pure copper braid construction that allows for better thermal conductivity, even at low temperatures. - Soder-Wick 80 responds faster than conventional desoldering braids thereby minimizing overheating and preventing PCB damage. A full range of sizes and flux types are available, including Rosin, no-clean, unfluxed and a high temperature Lead-Free version.
Features
- Minimizes the risk of damage associated with static electricity
- Non-corrosive ultra high purity type R rosin flux
- Will not leave ionic contamination on the boards
- Optimized construction for faster wicking and heat transfer
- Halide free
- Requires little or no post solder cleaning
- Minimizes the risk of damage associated with static electricity
- Non-corrosive ultra high purity type R rosin flux
- Will not leave ionic contamination on the boards
- Minimizes the risk of heat damage to the board
- Requires little or no post solder cleaning
- Optimized construction for faster wicking and heat transfer
- Halide free
- Braid size of #1
Applications
- For Through-Hole Components, Surface Mount Device Pads, BGA Pads, Micro Circuits, Terminals, Lugs and Posts and Identification Script
General Information
| Item Name | Desoldering Braid |
| Trade Name | Soder-Wick® |
| Series | 80 |
General Features
| Shelf Life | 24 Months |
Design & Construction
| Color | White |
| Flux Type | Rosin Activated |
| Material | Copper |
| Spool Type | SD Bobbin |
Physical Properties
| Length | 5 ft |
| Width | 0.03 Inch |
Documents
No Documents Found
