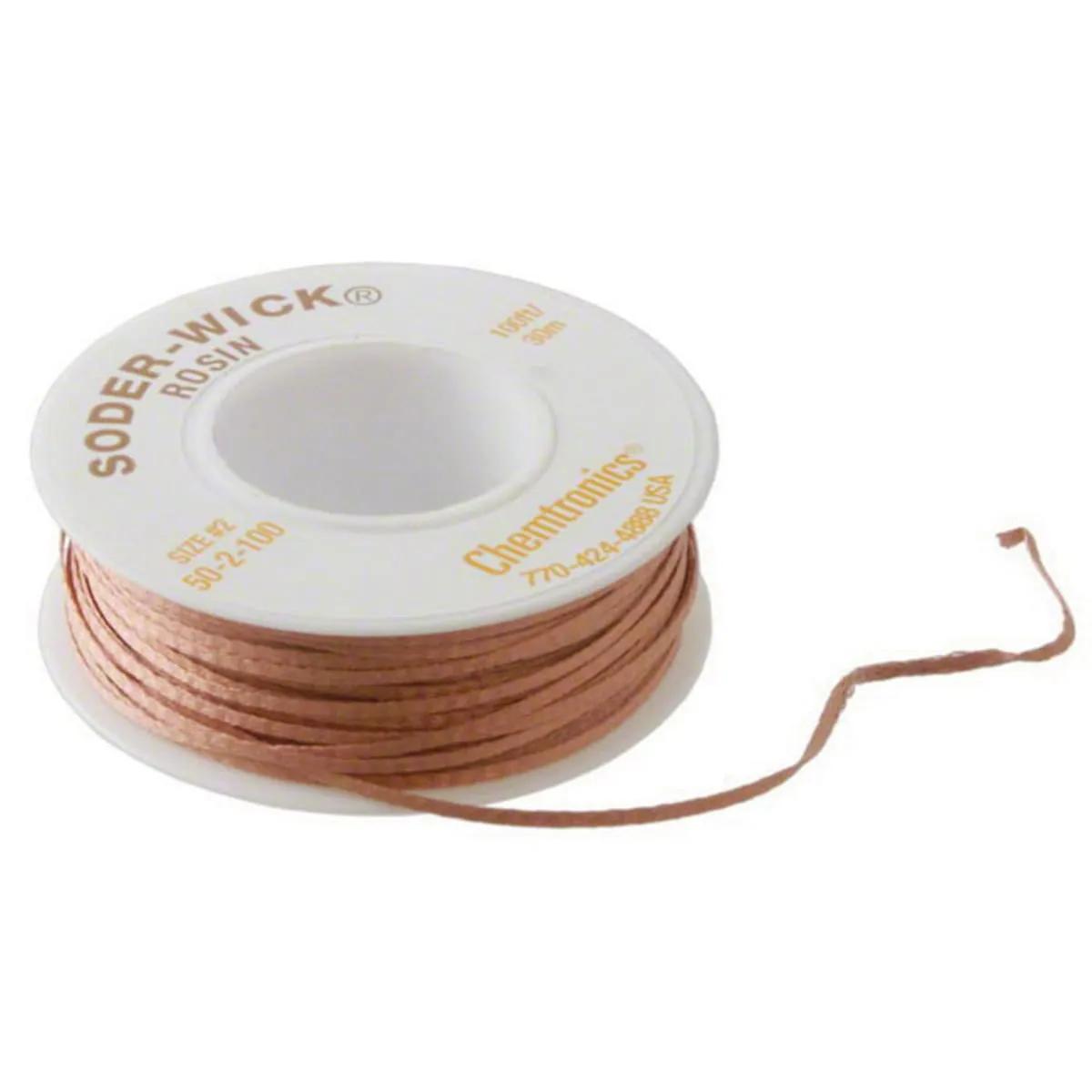

ITW Chemtronics 50-2-100 Soder-Wick® Rosin Activated Desoldering Braid, 0.060" x 100', Yellow, 1 Spool/Case
- MFR #50-2-100
- EIS #50-2-100
- Series #50
- UPC #032599030878
$114.92 / each
Pack: 1 Spool/Case
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack1 Spool/Case| Stock Status | |||||
|---|---|---|---|---|---|
 | 25 ft | 0.03 Inch | White | $ / each Pack: 1 Spool/Case | |
 | 100 ft | 0.06 Inch | Yellow | $ / each Pack: 1 Spool/Case | |
 | 25 ft | 0.06 Inch | Yellow | $ / each Pack: 1 Spool/Case | |
 | 500 ft | 0.06 Inch | Yellow | $ / each Pack: 1 Spool/Case | |
 | 25 ft | 0.08 Inch | Green | $ / each Pack: 1 Spool/Case | |
 | 100 ft | 0.08 Inch | Green | $ / each Pack: 1 Spool/Case |
Soder-Wick 50 offers the state of the art in desoldering technology. Soder-Wick is designed for today's heat sensitive electronic components using lighter mass, pure copper braid construction that allows for better thermal conductivity, even at low temperatures. - Soder-Wick 50 responds faster than conventional desoldering braids thereby minimizing overheating and preventing PCB damage. A full range of sizes and flux types are available, including Rosin, no-clean, unfluxed and a high temperature Lead-Free version.
Features
- Minimizes the risk of damage associated with static electricity
- Non-corrosive ultra high purity type R rosin flux
- Will not leave ionic contamination on the boards
- Optimized construction for faster wicking and heat transfer
- Halide free
- Minimizes the risk of damage associated with static electricity
- Non-corrosive ultra high purity type R rosin flux
- Will not leave ionic contamination on the boards
- Minimizes the risk of heat damage to components and circuit boards
- Optimized construction for faster wicking and heat transfer
- Halide free
- Braid size of #2
Applications
- For Through-Hole Components, Surface Mount Device Pads, BGA Pads, Micro Circuits, Terminals, Lugs and Posts and Identification Script
General Information
| Item Name | Desoldering Braid |
| Trade Name | Soder-Wick® |
| Series | 50 |
General Features
| Shelf Life | 24 Months |
Design & Construction
| Color | Yellow |
| Flux Type | Rosin Activated |
| Material | Copper |
| Spool Type | Bobbin |
Physical Properties
| Length | 100 ft |
| Width | 0.06 Inch |
